DJI Matrice 30 T + BS30

  • Integrated Wide, Zoom, and Infrared cameras with a Laser Rangefinder sensor
  • IP55 ingress protection, and -20° C~50° C temperature operation range
  • Lightweight and portable, for those who are mobile
  • Remote control is tailor-made for enterprise users
  • 41-Min Max. Flight Time[1]
  • Compatible with FlightHub 2 for efficient ground-to-cloud synergy
  • Support remote deployment operations with DJI Dock

Category

Matrice 30 Series

Power in Portability
proz-fon
Play Video

Unique aerial intelligence to capture everything

Reliable in the harshest of environments

Portable to go wherever you go

Ready, when you are, to overcome the unknown

A New Generation of Commercial Drones

Matrice 30
Matrice 30 T

Powerful Flight Performance

A balance of power and portability delivers higher operational efficiency

41-min

Max Flight Time1

15 m/s

Wind Resistance2

7000 m

Service Ceiling3

23 m/s

Max Speed

Environmental Adaptability

With IP55 protection, the M30 can easily handle adverse weather and temperatures ranging from -20° C~50° C.

Safe and Reliable

Dual-vision and ToF sensors appear on all six sides of the aircraft, keeping it and your mission safe. The built-in ADS-B receiver provides timely warnings of any incoming crewed aircraft nearby.

Play Video

Redundancies and Backup Systems

Built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.

Enhanced Transmission

Four built-in antennas support OcuSync 3 Enterprise, which enables triple-channel 1080p video transmission, and seamless swapping between input feeds, even in complex environments.

Bolster your connection with DJI Cellular Module, an optional 4G dongle4 that supports stable video transmission in complex, or remote work environments.

Play Video

Lightweight and Portable

Compact and foldable, the M30 Series is easy to pack up, carry, and deploy.

Play Video

Capture Everything

The M30 Series integrates wide, zoom, and thermal cameras (M30T only) with a laser rangefinder, which together can capture the aerial data you need, when you need it.

Wide Camera
Equivalent Focal Length: 24 mm, DFOV: 84°
12 MP 1/2'' CMOS Sensor
Video Resolution: 4K/30fps
Zoom Camera
48 MP 1/2'' CMOS Sensor
5x-16x Optical Zoom
200x Max. Hybrid Zoom
Photo Resolution: 8K
Video Resolution: 4K/30fps
Thermal Imaging Camera
Equivalent Focal Length: 40 mm
Resolution: 640×512
Frame Rate: 30fps
Measurement Accuracy: ±2°C or ±2%5
Laser Rangefinder
Range: 3 m - 1200 m
Accuracy: ±(0.2m+D×0.15%)6
Previous slide
Next slide

Superior Image Quality

Night Flight

With the FPV camera optimized for low-light conditions, the ground and skyline are clearly visible, even at night, so you can fly with safety and confidence.
Play Video
Play Video

Smart Low-Light Photo

Capture bright, clear images in low-light conditions with Smart Low-Light Photo.

RGB

See it all from above.
Play Video
Play Video

Infrared

Find hotspots and heat signatures thanks to high-resolution thermal capabilities.

Laser Rangefinder

PinPoint an object in view, and advanced sensor fusion algorithms immediately deliver its coordinates.
Play Video

A Revolutionary Flight Control Experience

Built For Commercial Drone Pilots

The 7-inch widescreen DJI RC Plus with dual control mode is tailor-made for Enterprise users.

Enterprise
Environmental
Adaptability

IP54 Protection

Water and dustproof

-20°C to 50°C

Capable in climates both hot and cold

Improved Stability and Battery Life

Four Antenna OcuSync 3 Enterprise
Cover more area with stable video transmission and removable dual-antennas.
DJI Cellular Module4
Attach a DJI Cellular Module for added 4G support to supplement OcuSync 3 Enterprise.
Extended Battery Life
Internal and external battery configuration powers 6 hours of battery life and enables hot-swapping for seamless, uninterrupted flight operations.

Introducing the All-new DJI Pilot 2

A revamped Enterprise flight interface designed to improve piloting efficiency and flight safety.

Play Video

Reimagined User Interface

Drone and payload controls can be easily accessed with one tap. Clear presentation of flight details and navigational information improves user experience and flight efficiency.

Ergonomic Design For Safety and Efficiency

Pilot 2 works seamlessly with the DJI RC Plus. Screenside and customizable buttons are all within reach and enable quick operations, such as adjusting camera views and dropping PinPoints.

Play Video

Flight Safety

Play Video

Pre-flight Checklist

A comprehensive checklist helps you quickly confirm aircraft status and parameter settings, so you can take off with confidence.

Navigation Display

An optimized interface displays your home point, PinPoints, and nearby obstacles to improve safety and provide comprehensive situational awareness.
Play Video
Play Video

Alert Notifications

Stay updated with timely alerts as conditions and scenarios evolve.

DJI FlightHub 2

Ground-to-Cloud Synergy

Play Video

Master Your Mission Environment

FlightHub 2 offers a 2.5D Base Map for quick terrain awareness, One-Tap Panorama Sync for rapid site overviews, and Cloud Mapping for fast mapping in RGB or infrared.

Mission Live Streaming

Connect multiple users to one or many drone operations simultaneously, and keep teams updated with the latest developments thanks to low latency, high-resolution livestreaming.
Play Video
Play Video

Live Annotations

Highlight objects or areas of interest for efficient mission management and resource distribution. Annotations are visible to ground teams, pilots, or any team member for timely project alignment and task distribution.

Streamlined Team Communication

Synchronize valuable information such as teams position, drone status, mission details and more, in real time and across multiple device types, making team collaboration easier than ever.
Play Video

Advanced Intelligence

Play Video

Route Planning and Management

Flight routes and missions planned in FlightHub 2 can be easily synchronized with Pilot 2. Operation data can be automatically uploaded to FlightHub 2 Media Files for unified management and analysis.

Route Planning and Management

Flight routes and missions planned in FlightHub 2 can be easily synchronized with Pilot 2. Operation data can be automatically uploaded to FlightHub 2 Media Files for unified management and analysis.
Play Video

DJI Dock, For Road Less Traveled

Play Video

Non-stop Ops

The DJI Dock (M30 Series Dock Version7) has flagship-level performance with a maximum operation range of 7 km8, IP55 weather resistance, and resilience in temperatures ranging from -35℃ to 50℃.

Fast Charging, Fast Turnaround

Fast charge and take off thanks to TEC air conditioning that cools the drone batteries, enabling charging from 10-90% in just 25 minutes9.

Play Video
Play Video

Cloud Platform Management

With FlightHub 2, unlock full DJI Dock functionality from the cloud. Schedule missions, create and edit flight routes, and manage data collected.

Private Deployment

Cloud API opens up DJI Dock functionality to developers and system integrators, who can set up a custom, private server.
Play Video

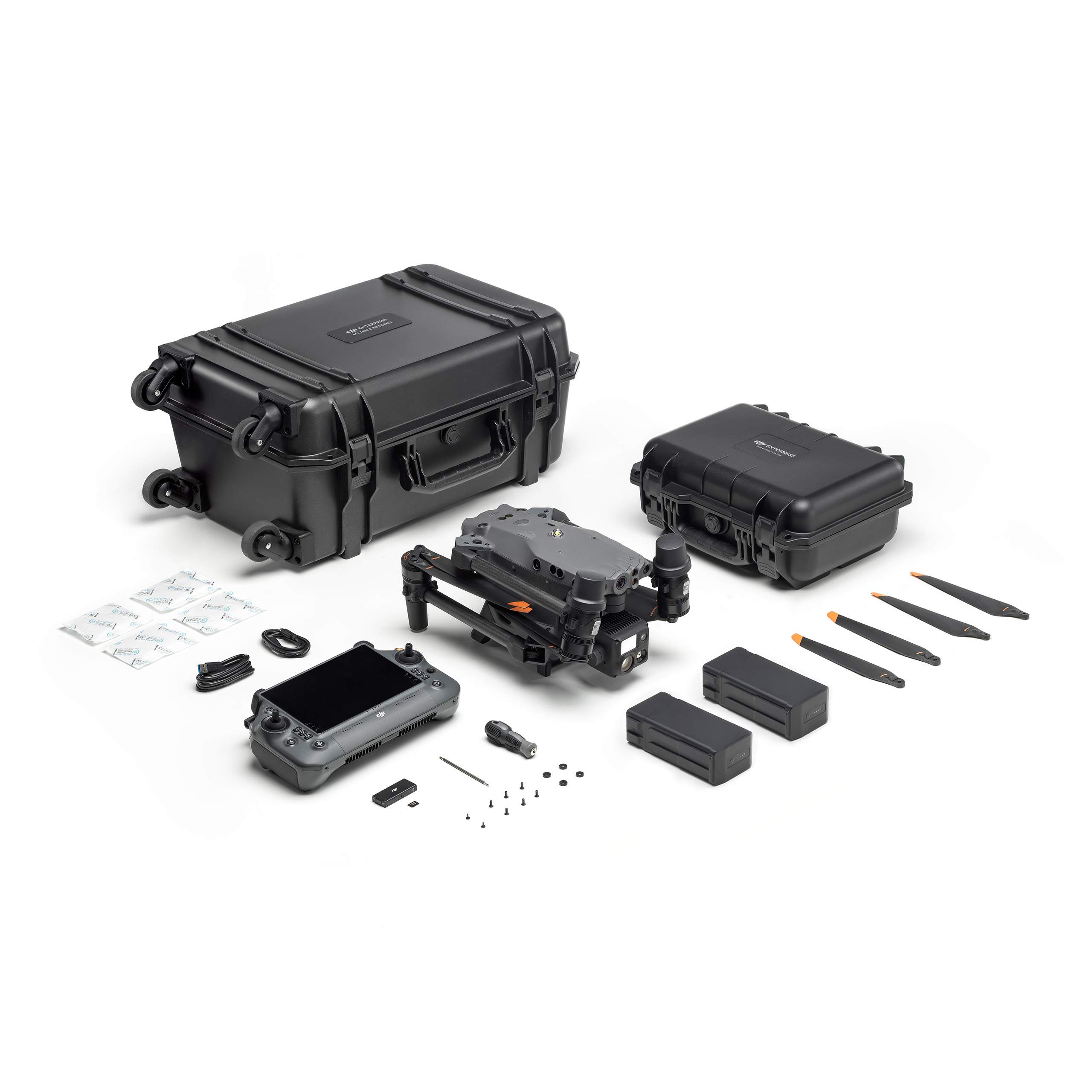

Core Package

The Matrice 30 Series (M30 or M30T) comes with a DJI RC Plus, two TB30 Intelligent Flight Batteries, one BS30 Intelligent Battery Station, and the aircraft storage case.

BS30 Intelligent Battery Station

A smart, portable solution with multiple charging modes to meet your mission needs. Capable of charging four pairs of TB30 Intelligent Flight Batteries and one pair of RC Plus batteries, pairs are charged one at a time, with one pair taking just 30 minutes to charge from 20-90%.

TB30 Intelligent Flight Battery

Each battery supports self-heating for cold environments, hot-swapping for fast turnarounds, and 400 charge cycles10 for increased operational efficiency.

DJI Cellular Module4

Provides 4G based transmission link between the drone and remote controller, while also enabling internet connection for the remote controller.

User Data Security

SD Card AES Encryption

Local Data Mode

One-Tap Clear All Device Data

AES-256 Video Transmission Encryption

Cloud API

Category:

Aircraft

Dimensions
(unfolded, excl. propellers)
470×585×215 mm (L×W×H)
Dimensions (folded) 365×215×195 mm (L×W×H)
Diagonal Wheelbase 668 mm
Weight (incl. two batteries) 3770 ± 10 g
Max Takeoff Weight 3998 g
Operation Frequency[1] 2.4000-2.4835 GHz; 5.725-5.850 GHz
Transmitter Power (EIRP) 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)
Hovering Accuracy
(windless or breezy)
Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK)
Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)
RTK Positioning Accuracy
(fixed RTK enabled)
1 cm+1 ppm (horizontal)
1.5 cm+1 ppm (vertical)
Max Angular Velocity Pitch: 150°/sec.; Yaw: 100°/sec.
Max Tilt Angle 35° (N-mode and Forward Vision System enabled: 25°)
Max Ascent/Descent Speed 6 m/s, 5 m/s
Max Tilt Descent Speed 7 m/s
Max Horizontal Speed 23 m/s
Max Service Ceiling Above Sea Level (without other payload) 5,000 m (with 1671 propellers)
7,000 m (with 1676 propellers)
Max Wind Resistance 15 m/s
12 m/s during taking off and landing
Max Hover Time [2] 36 min
Max Flight Time[2] 41 min
Motor Model 3511
Propeller Model 1671
1676 High Altitude (not included)
Ingress Protection Rating[3] IP55
GNSS GPS+Galileo+BeiDou+GLONASS
(GLONASS is supported only when RTK module is enabled)
Operating Temperature -20° to 50° C (-4° to 122° F)

Gimbal

Angular Vibration Range ±0.01°
Controllable Range Pan: ±90°
Tilt: -120° to +45°
Mechanical Range Pan: ±105°
Tilt: -135° to +60°
Roll: ±45°

Zoom Camera

Sensor ±0.01°
Controllable Range 1/2″ CMOS, Effective pixels: 48M
Lens Focal length: 21-75 mm (equivalent: 113-405 mm)
Aperture: f/2.8-f/4.2
Focus: 5 m to ∞

Wide Camera

Sensor ±0.01°
Controllable Range 1/2″ CMOS, Effective pixels: 12M
Lens DFOV: 84°
Focal length: 4.5 mm (equivalent: 24 mm)
Aperture: f/2.8
Focus: 1 m to ∞

Thermal Camera

Thermal Imager Uncooled VOx Microbolometer
Lens DFOV: 61°
Focal length: 9.1 mm (equivalent: 40 mm)
Aperture: f/1.0
Focus: 5 m to ∞
Infrared Temperature Measurement Accuracy[4] ±2°C or ±2% (using the larger value)

FPV Camera

Resolution 1920×1080
DFOV 161°
Frame Rate 30 fps

Laser Module

Vision SystemsInfrared Sensing SystemsTB30 Intelligent Flight BatteryAuxiliary LightsRemote Controller

Wavelength 905 nm
Max Laser Power 3.5 mW
Single Pulse Width 6 ns
Measurement Accuracy ± (0.2 m + D×0.15%)
D is the distance to a vertical surface
Measuring Range 3-1,200 m (0.5×12 m vertical surface with 20% reflectivity)
Obstacle Sensing Range Forward: 0.6-38 m
Upward/Downward/Backward/Sideward: 0.5-33 m
FOV 65° (H), 50° (V)
Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)
Obstacle Sensing Range 0.1 to 10 m
FOV 30°
Operating Environment Large, diffuse, and reflective obstacles (reflectivity >10%)
Capacity 5880 mAh
Voltage 26.1 V
Battery Type Li-ion 6S
Energy 131.6 Wh
Net Weight Approx. 685 g
Operating Temperature -20° to 50° C (-4° to 122° F)
Storage Temperature 20° to 30° C (68° to 86° F)
Charging Temperature -20° to 40° C (-4° to 104° F)
(When the temperature is lower than 10° C (50° F), the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
Chemical System LiNiMnCoO2
Effective Illumination Distance 5 m
Illumination Type 60 Hz, solid glow

Remote Controller

Screen 7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2
Internal Battery Type: Li-ion (6500 mAh @ 7.2 V)
Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V)
Charge Time: 2 hours
Chemical System: LiNiCoAIO2
External Battery (WB37 Intelligent Battery) Capacity: 4920 mAh
Voltage: 7.6 V
Battery Type: Li-ion
Energy: 37.39 Wh
Chemical System: LiCoO2
Operating Time[5] Internal Battery: Approx. 3 hours 18 min
Internal Battery + External Battery: Approx. 6 hours
Ingress Protection Rating[3] IP54
GNSS GPS+Galileo+BeiDou
Operating Temperature -20° to 50° C (-4° to 122° F)

O3 Enterprise

Operating Frequency[1] 2.4000-2.4835 GHz, 5.725-5.850 GHz
Max Transmission Distance (unobstructed, free of interference) 15 km (FCC); 8 km (CE/SRRC/MIC)
Max Transmission Distance (with interference) Strong Interference (urban landscape, limited line of sight, many competing signals): 1.5-3 km (FCC/CE/SRRC/MIC)
Medium Interference (suburban landscape, open line of sight, some competing signals): 3-9 km (FCC); 3-6 km (CE/SRRC/MIC)
Weak Interference (open landscape abundant line of sight, few competing signals): 9-15 km (FCC); 6-8 km (CE/SRRC/MIC)
Transmitter Power (EIRP) 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)

Wi-Fi

Protocol Wi-Fi 6
Operating Frequency[1] 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz
Transmitter Power (EIRP) 2.4 GHz: <26 dBm (FCC); <20 dBm (CE/ SRRC/MIC)
5.1 GHz: <26 dBm (FCC); <23 dBm (CE/ SRRC/MIC)
5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm(CE)

Bluetooth

Protocol Bluetooth 5.1
Operating Frequency[1] 2.4000-2.4835 GHz
Transmitter Power (EIRP) <10 dBm

BS30 Intelligent Battery Station

Dimensions 353×267×148 mm
Net Weight 3.95 kg
Compatible Battery Type TB30 Intelligent Flight Battery
WB37 Intelligent Battery
Input 100-240 VAC, 50/60 Hz
Output TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously)
WB37 Intelligent Battery: 8.7 V, 6 A
Output Power 525 W
USB-C port Max. output power of 65 W
USB-A port Max. output power of 10 W (5 V, 2 A)
Power Consumption (when not charging battery) < 8 W
Output Power (when warming up battery) Approx. 30 W
Operating Temperature -20° to 40° C (-4° to 104° F)
Ingress Protection Rating[3] IP55 (with the cover closed properly)
Charging Time[6] Approx. 30 min (charging two TB30 batteries from 20% to 90%)
Approx. 50 min (charging two TB30 batteries from 0% to 100%)
Protection Features Anti-Backflow Protection
Short Circuit Protection
Over Voltage Protection
Over Current Protection
Temperature Protection

Other

Footnotes
  1. 5.8 and 5.1GHz frequencies are prohibited in some countries. In some countries, the 5.1GHz frequency is only allowed for use indoors.
  2. The maximum flight time and the hover time were tested in a lab environment and is for reference only.
  3. This protection rating is not permanent and may reduce over time after long-term use.
  4. Infrared temperature measurement accuracy was tested in a lab environment and is for reference only.
  5.  The maximum operating time was tested in a lab environment and is for reference only.
  6. The charging time was tested in a lab environment at room temperature. The value provided should be used for reference only.
M30 PSDK ADAPTER BRACKET

The PSDK load can be fixed to the M30 series flight platform, and different types of PSDK loads can be quickly removed and replaced.

Buy
FC30 EQUIPPED WITH A THREE-LOAD SUPPORT

The FC30 EQUIPPED WITH A THREE-LOAD SUPPORT is designed for the DJI FlyCart 30 carrier and can support up to three ET4 FOUR DROP KIT at the same time, achieving 12-stage drops with a maximum payload of 120kg.

Buy
SDK PAYLOAD BRACKET(OSDK)

Extended based on the Warp M350 RTK E-Port interface, the load can be mounted to the belly of the Warp M350 RTK aircraft, supporting up to OT series devices.

Buy

Inquire price for

    ×
