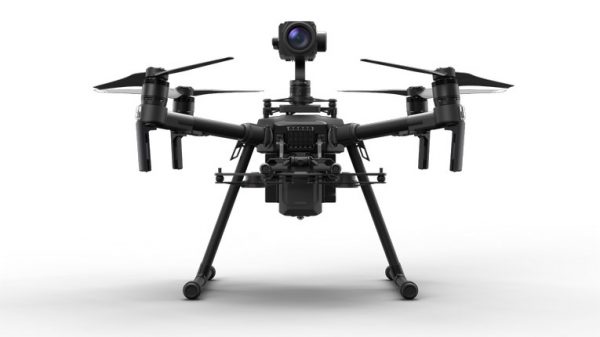

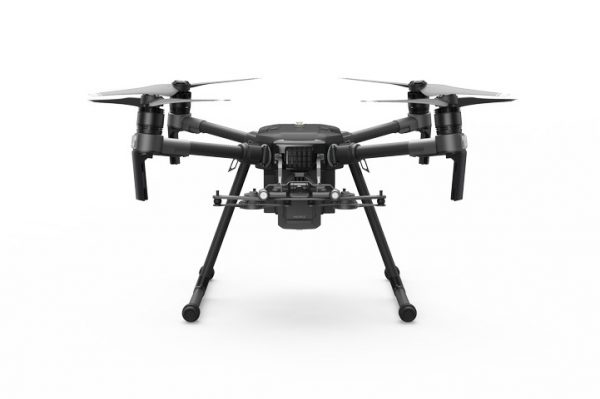

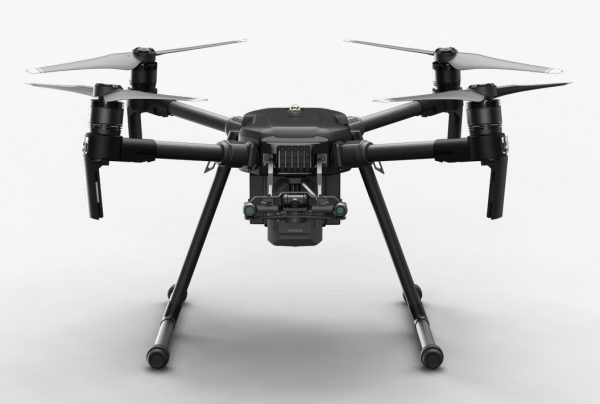

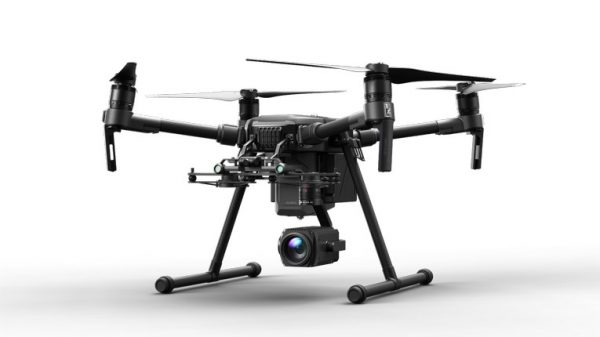

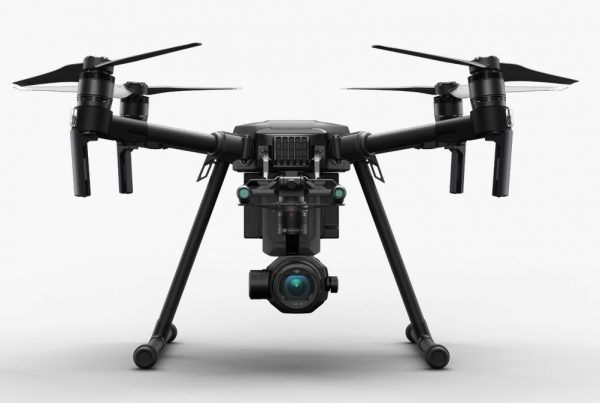

DJI Matrice 210 Combo V2 with TB55 x 2 Batteries


The ultimate platform for aerial productivity combines a rugged design and simple configurability to work as a solution for a variety of industrial applications. Improvements to the M200 Series V2 enhance intelligent control systems, flight performance, and add flight safety and data security features.

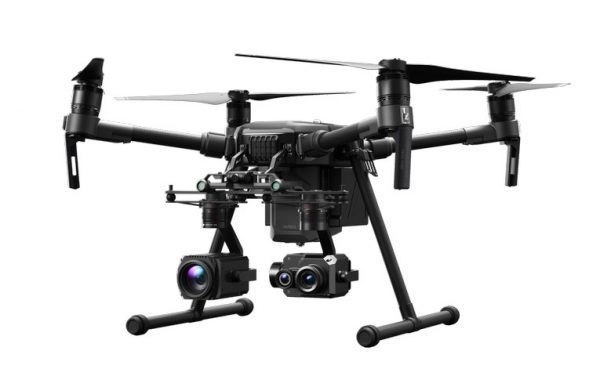

The DJI Matrice 210 V2 is a flexibility-driven industrial drone that can run 2 cameras simultaneously.

Like the Matrice 200 V2, the Matrice 210 V2 finds its uses in industrial and commercial environments and has also been equipped with additional safety features and enhancements. Attention was paid to the simple setup and configuration.

The new technical basis now also allows night and BVLOS flights. The Matrice 210 V2 offers a wide range of applications, such as:

  • public safety
  • Search and rescue operations
  • Construction and infrastructure inspections

The Matrice 210 V2 has more features than the Matrice 200 V2.

Highlights

  • Max. 34 minutes flight time
  • IP43 certified
  • AES-256 encryption
  • TimeSync
  • AirSense
  • Collision warning light
  • OcuSync 2.0
  • investigation mode
  • Mobile SDK compatible
  • DJI SkyPort compatible
  • Onboard SDK compatible
  • Power supply for other onboard devices

The Matrice 210 V2 (without load) allows a maximum flight time of 34 minutes with 2 TB55 batteries.

Due to the self-contained housing, the system is certified to IP43 and therefore dust- and splash-proof.

Data transmission is secured by AES-256 encryption and can only be viewed by authorized persons. This way mission-critical data is protected!

A new TimeSync system continuously aligns flight controllers, cameras, GPS module and RTK module, as well as any third party payloads or accessories on board. The position data is fixed in the center of the image to improve data accuracy.
Compatible payloads:
ZENMUSE XT2, ZENMUSE X5S, ZENMUSE X7, ZENMUSE Z30, ZENMUSE X4S, ZENMUSE XT, third-party payloads

AirSense allows the drone pilot to use the integrated ADS-B receiver to provide real-time traffic information to prevent collisions with manned aircraft or helicopters.

Thanks to the new collision warning lights on the top and bottom of the drone, it is now easy to identify even in bad weather or darkness. The development took place in consideration of the US air quality control guidelines (Night Waiver).

For maximum range OcuSync 2.0 is used. The system realizes the automatic switching of the dual frequency band between 2.4 GHz and 5.8 GHz and reliably transmits low-latency digital high-resolution video signals to the drone pilot.

In night operations, where lighting the drone is not beneficial, for example in a search, the search mode can be activated via the DJI Pilot app. The lighting is completely deactivated or switched off and the drone is almost invisible.

Create a personalized app using Mobile SDK to make local data collection and flight planning faster and easier.

With SkyPort you can easily and quickly install DJI cameras and compatible third-party cameras / extensions.

Onboard SDK
 allows the integration of third-party sensors or an onboard computer into the system and thus data analysis during the flight.

To avoid obstacles, the FlightAutonomy system is used. This has up, down and forward sensors. These reliably detect obstacles and enable precise hovering at the desired position. If several extensions are used on the drone, the center of gravity deviation can be calibrated via the DJI Pilot App, thus improving flight performance and safety.

In the Box:

1x DJI Matrice 210 V2
1x Remote Control
1x CrystalSky 7.85 inch Monitor
2x Landing Gear
2x Flight Battery TB55
1x Charger
1x Charging Hub for Flight Battery
1x Mobile Device Holder
1x Transport Case
3x Gimbal Damper
1x Charging Hub for Battery WB37
2x Battery WB37 for Remote Control
4x Propeller Pairs
1x Power Cable
1x USB Cable (type A)
1x USB Extension Cable
1x Neck Strap for Remote Control
1x MicroSD Card 64 GB
6x Rear Connector Cover Screw
1x Screwdriver Set
1x Cendence Stick Control (pair)
1x Mounting Key for Cendence Stick Control
1x Waterproof rear Port Cover (as replacement)
1x Instructions

Technical specifications

Aircraft

Dimensions
With unfolded propellers and landing gear: 883 ? 886 ? 398 mm
Without unfolded propeller and landing gear: 722 ? 282 ? 242 mm
Diagonal center distance: 643 mm
Weight: Approx. 4.8 kg (with two TB55 batteries)
Max. Take-off weight: 6.14 kg
Max. Payload: 1.34 kg
Operating frequency: 2,400 – 2,483 GHz; 5,725 – 5,850 GHz

Radiation power (EIRP)
2.4 GHz: ? 26 dBm (NCC / FCC); ? 20 dBm (CE / MIC); ? 20 dBm (SRRC)
5.8 GHz: ? 26 dBm (NCC / FCC); ?14 dBm (CE); ? 26 dBm (SRRC)

Levitation accuracy (mode “”P”” with GPS)
Vertical: ? 0.5 m or ? 0.1 m (Downward vision system active)
Horizontal: ? 1.5 m or ? 0.3 m (downward vision system active)

Levitation accuracy (mode “”P”” with GPS)
Vertical: ? 0.1 m; Horizontal: ? 0.1 m

Max. Angular speed
Pitch angle: 300? / s; Yaw angle: 120? / s

Max. Pitch angle (single up and dual down gimbals)
Mode “”S””: 30?; Mode “”P””: 30? (Forward vision sensors activated: 25?); Mode “”A””: 30?

Max. Nick angle (single down gimbal)
Mode “”S””: 35?; Mode “”P””: 30? (Forward vision sensors activated: 25?); Mode “”A””: 30?

Max. Climbing speed: 5 m / s
Max. Vertical descent speed: 3 m / s

Max. Airspeed (single up and dual down gimbals)
Mode “”S”” and “”A””: 73.8 km / h; Mode “”P””: 61.2 km / h

Max. Airspeed (single downwards gimbal at gimbal port I)
Mode “”S”” and “”A””: 81 km / h; Mode “”P””: 61.2 km / h

Max. Altitude above sea level: 3000 m, with 1760S propellers
Max. Wind resistance: 12 m / s

Max. Flight time (with TB55 batteries): 34 minutes (no load), 24 minutes (with a take-off weight of 6.14 kg)

Supported gimbals from DJI:
Zenmuse X4S / X5S / X7 / XT / XT2 / Z30

Supported gimbal configurations
Single down-facing gimbal, dual down gimbals, single upward gimbal

Protection class: IP43

GNSS: GPS + GLONASS;

Operating temperature: -20? C to + 50? C

Remote Control (Model: GL900A)

Operating frequency: 2,400 – 2,483 GHz; 5,725 – 5,850 GHz
Max. Transmission range (without obstacles and interferences)
NCC / FCC: 8 km; CE / MIC: 5 km; SRRC: 5 km

Radiation power (EIRP)
2.4 GHz: ? 26 dBm (NCC / FCC); ? 20 dBm (CE / MIC); ? 20 dBm (SRRC)
5.8 GHz: ? 26 dBm (NCC / FCC); ?14 dBm (CE); ? 26 dBm (SRRC)

power supply
Improved Intelligent Battery (Model: WB37-4920mAh-7.6V)

Max. Output power: 13 W (without monitor power supply)
USB power supply: 1 A at 5.2 V ? (Max.)

CrystalSky Monitor
DJI CrystalSky 7.85 inches, resolution: 2048 ? 1536;
Brightness: 2000 cd / m2; Operating System: Android 5.1; Memory: Internal 128 GB

Operating temperature: -20? C to + 50? C

Downward vision sensors
Speed ??range: <10 m / s at a height of 2 m
Height range: <10 m
Operating range: <10 m
Operating Environment: Surfaces with clear contours and sufficient illumination (> 15 lux)
Operating range ultrasonic sensors: 0.1 – 5 m
Operating Environment Ultrasonic Sensors: Non-absorbent material, hard surfaces (thick carpets reduce performance)

Forward-facing vision sensors
Obstacle detection range: 0.7 – 30 m
Field of view (FOV)
Horizontal: 60?; Vertical: 54?
Operating Environment: Surfaces with clear contours and sufficient illumination (> 15 lux)

Uplinked infrared sensors
Obstacle detection range: 0 – 5 m
Field of View (FOV): ? 5 ?
Operating environment: Large, reflective surfaces (reflectivity> 10%)

Intelligent Flight Battery (Model: TB50-4280 mAh-22.8V)
Capacity: 7660 mAh
Voltage: 22.8V
Battery type: LiPo 6S
Energy: 174,6 Wh
Weight (individual): About 885 g
Operating temperature: -20? C to + 50? C
Charging temperature: 5 to 40? C
Max. Charge current: 180 W

Charger (Mo del: IN2C180)
Voltage: 26.1 V
Rated power: 180 W

Battery charging station (model: IN2CH)
Input voltage: 26.1 V
Input current: 6.9 A



Built to Endure. Engineered to Adapt.

The ultimate platform for aerial productivity combines a rugged design and simple configurability to work as a solution for a variety of industrial applications. Improvements to the M200 Series V2 enhance intelligent control systems, flight performance, and add flight safety and data security features.

Intelligent Controls

Transmission

Enjoy a more reliable and stable flight with the new OcuSync 2.0 system, which supports automatic dual frequency band switching ;and extends flight range to up to 8km

Calibration

When multiple payloads or third-party payloads are installed, users can readjust the drone’s center of gravity in the DJI Pilot app, enhancing flight performance and safety.

Data Accuracy

The TimeSync system continuously aligns the flight controller, camera, GPS module, RTK module for the M210 RTK V2, as well as payloads or onboard accessories. The position data is fixed to the center of the CMOS for precise geotagging when using DJI payloads.

Discreet Mode

When the situation calls for unobtrusive drone operations, especially at night, all lights can be completely turned off in the DJI Pilot app.



Safe and Secure

AES-256 Encryption

The AES-256 encryption keeps your data transmission secure so you can be sure that your critical information stays safe.

Obstacle Avoidance

A robust FlightAutonomy system with front, bottom and upper sensors detects and avoids obstacles while enabling precision hovering so that you can fly with confidence.

Anti-Collision Beacon

Equipped with new top and bottom anti-collision beacons, the V2 drones are visible at night or in lowlight conditions, making operation in less than ideal conditions safer.

DJI AirSense

With a built-in ADS-B receiver, the DJI AirSense technology enhances airspace safety by automatically providing the operator with real-time information about nearby airplanes and helicopters.

Always Ready

1-Click Upgrade
The remote controller, drone, payloads, RTK module, and RTK base station, can now be upgraded simultaneously with just 1-click in DJI Pilot or DJI Assisant 2

Dual Battery System
The self-heating battery system allows a maximum flight time of 38 minutes and an operating temperature of -20 to 50C

The DJI Matrice 210 is the latest in technology that DJI has produced to date.  The Matrice 210 is built for professionals and industry experts looking for a robust, expandable, and feature-rich flying platform.

The DJI Matrice 210 features:

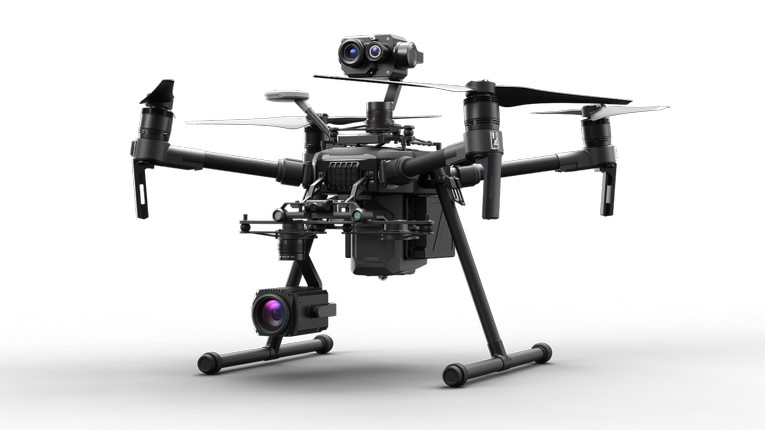

  • The first dual gimbal
  • An upward-facing gimbal mount
  • Extreme weather resistant design (IP 43 weather proofing)
  • Extended range and battery life
  • Multiple payload configurations
  • Dual-battery system with an automatic self-heating function
  • Support for an array of Zenmuse cameras (X4S, X5S, XTR thermal imaging, and Z30 optical zoom)

The Ultimate Industrial And Commercial Drone!

The Matrice 210 is designed for commercial tasks such as inspections, fire-fighting, search and rescue, precision agriculture, mapping & surveying and many more applications in locations that are difficult to approach.  The Matrice 210 can fly for up to 38 minutes, features an operation range of 7KM and a 2 KG payload capacity.

DJI’s Matrice 210 is a high-performance aircraft with a reliability and versatility fit for any mission no matter how tough.
