DJI Matrice 200 300 RTK DJI SDK Payload – Hyperspectral NDVI Sensor

Acquisition speed 8~20 seconds /Cube
Integrated high-performance data processing system with up to 256 CUDA cores for real-time data processing, the open data processing
The hyperspectral sensors used for agriculture vegetation production, water monitoring, forest, and target identification.

Category

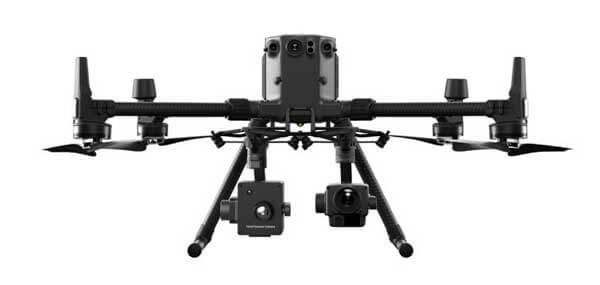

The hyperspectral NDVI camera developed on DJI SKD payload, the DJI X-port is seamlessly compatible with DJI’s Matrice 200 V2 and M300 RTK drone platforms. the hyperspectral sensors integrate a spectral camera, scanning unit, and high-performance data processing system to acquire hyperspectral image data in more than 100 bands up to megapixels.

The hyperspectral sensors used for agriculture vegetation production, water monitoring, forest, and target identification.

The advantages of the hyperspectral NDVI camera.

  • Chip-scale push-sweep spectral camera with up to 100 spectral bands.
  • Innovative hovering shooting technology overcomes the image distortion caused by traditional drone push-broom methods. Acquisition speed 8~20 seconds /Cube
  • Integrated auxiliary HD camera, hyperspectral data is what you see-WYSIWYG.
  • Integrated high-performance data processing system with up to 256 CUDA cores for real-time data processing, the open data processing, and display interface facilitates the integration of user data processing models and realizes real-time calculation and display of analytical models.

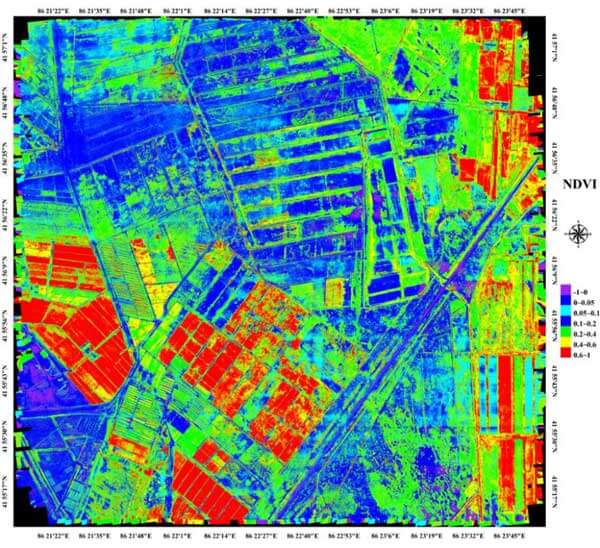

The DJI Matrice 200 V2 and Matrice 300 drone with hyperspectral NDVI sensors can be used in agriculture to diagnose crop growth, diseases, and insect pests, and soil fertility; in environmental protection, it can be used to detect the pollution of chemical raw materials in oceans and lakes, and the eutrophication of rivers and lakes; in the forestry field It can be used to detect forest fires, forestry diseases, forest survival rates, forest tree species differentiation, etc.; in the field of mineral resources, it can be used for surveys in the fields of petroleum, minerals and minerals; in the target recognition, it can be used in target detection, etc.; in archaeology, it can be used in ancient Repair of villages, survey of cultural relics, etc.; it can be used for inspection of power cable insulators in the communications department.

Specification:

Rainbow-VN drone Hyperspectral Imaging System

Spectral range 420~1000nm
Spectral resolution 15nm*600nm
Spatial resolution 1024*1024,800*600,640*512
Camera bit depth 8bit,10bit
Auxiliary camera 500M
Data processing systems 256 Core NVDIA Pascal GPU,8G DDR
Size 75×80×95mm
Power <25W
Weight 500g
