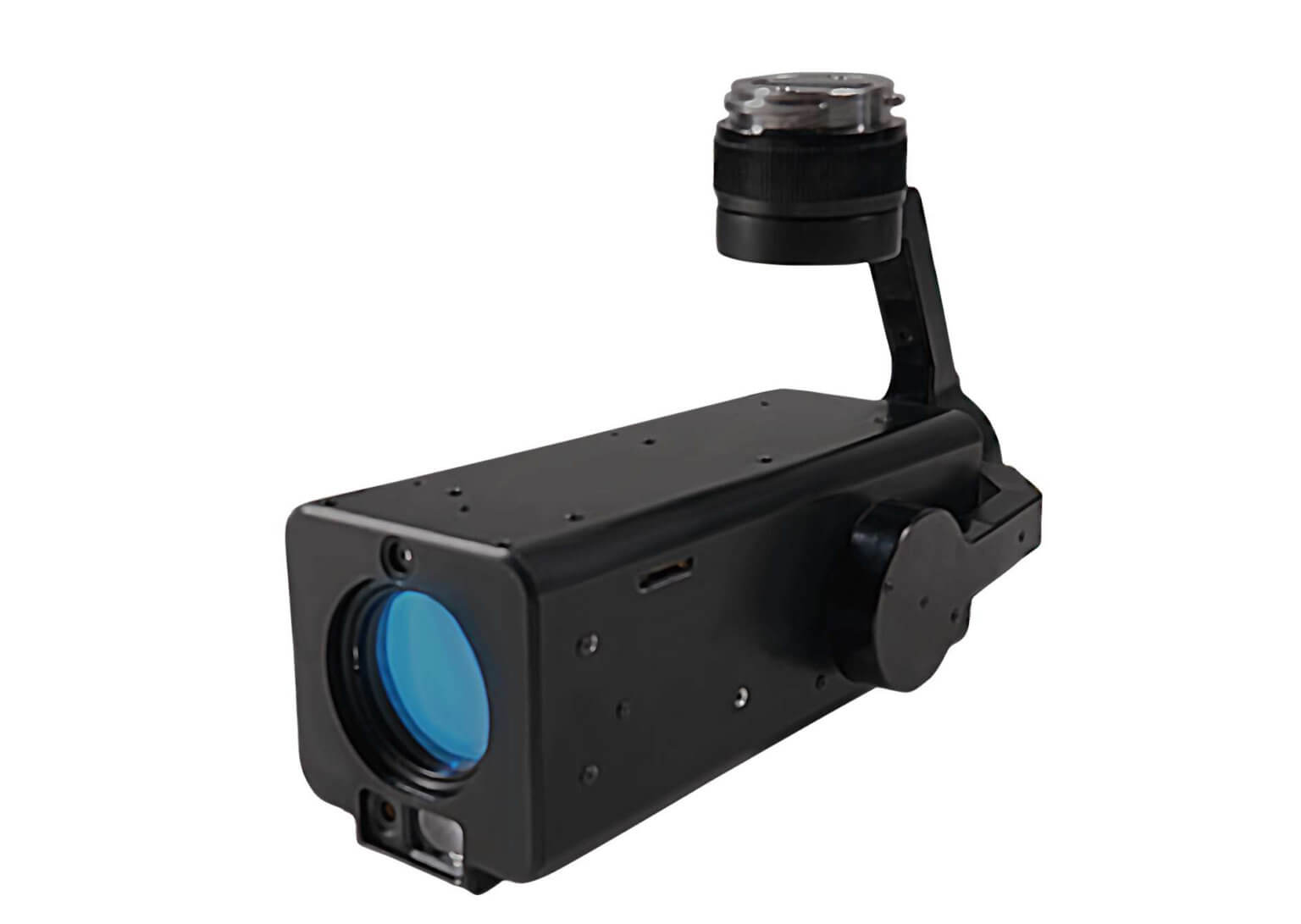

DJI Matrice 200 210 M300 RTK – Ultraviolet rays UV drone Camera payload

4-in 1 multi-function drone gimbal camera.
Ultraviolet (UV)+ HD camera+ laser ranging + temperature and humidity sensor.

Category

Ultraviolet rays UV Camera payload for DJI Matrice 200 210 300 RTK drones, develop on DJI payload SDK, Seamlessly compatible with DJI Matrice 200 series and M300 drone.specially for Drone powerline corona detection. 3 axis gimbal, data transmission via DJI Skyport, operated via DJI pilot.

The camera sensors deeply integrate ultraviolet (UV),  HD camera, and laser ranging sensors. based on the DJI M200 and M300 drone platform, it can help to discover the safety hazards of insulators in time. 1:1 ultraviolet and infrared simultaneous display, simultaneous detection of corona and temperature; built-in high-performance processor, can expand defect recognition, it is the best powerline inspection UV drone camera.

4-in 1 multi-function drone gimbal camera.
Ultraviolet (UV)+ HD camera+ laser ranging + temperature and humidity sensor.

When electric high-voltage equipment is electrically discharged, corona, flashover or arc. In the air, the peak wavelength of corona discharge is about 200nm ~ 400nm. In the “sunblind” ultraviolet band (240nm ~ 280nm), the intensity of the corona discharge is much weaker, but the background radiation of the sun at the surface is zero at this time. Therefore, we choose to detect corona discharge in the “sunblind zone” to achieve the most ideal detection effect.

The principle of ultraviolet powerline inspection leakage detection is to collect the ultraviolet signal generated when the high-voltage equipment is discharged, processed by the fusion algorithm, superimposed with the visible light image, and output to the display screen to accurately locate the position and intensity of the corona.

Specification of the Ultraviolet rays UV drone camera

UV Camera 240-280nm
752X574 @25fps H264
HD camera 12MP 1/2.8 CMOS, 58º Wide angle
JPEG 1920X1080
Picture-in-picture technology Yes
Encrypted pictures Yes
Remote firmware upgrade Yes
SD card 32-128G
Weight 550g

Ultraviolet rays UV drone Camera payload
