Extra-lightweight GPR system, suitable for medium-sized drones like DJI M300 RTK.
Comes with 3x sets of dipoles for the 300, 150, and 100 MHz.
Utilizes Real Time Sampling (RTS) with high hardware stacking, delivering high-resolution low-noise data.

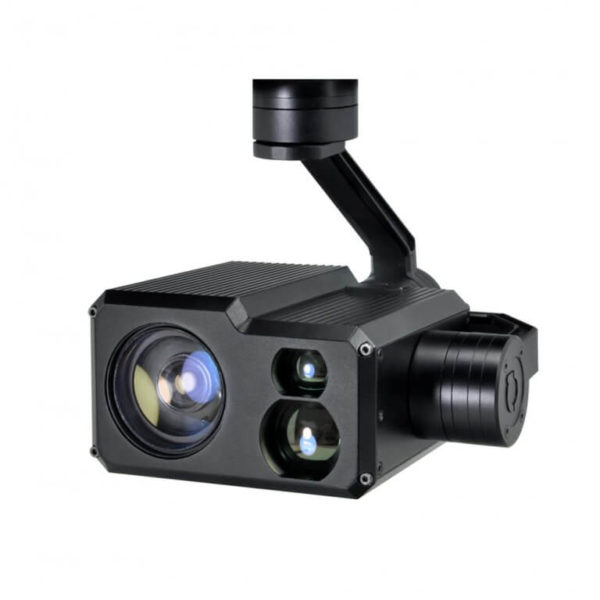

DJI Matrce 210 – 30X Zoom GPS Location Resolving Laser Rangefinder Camera

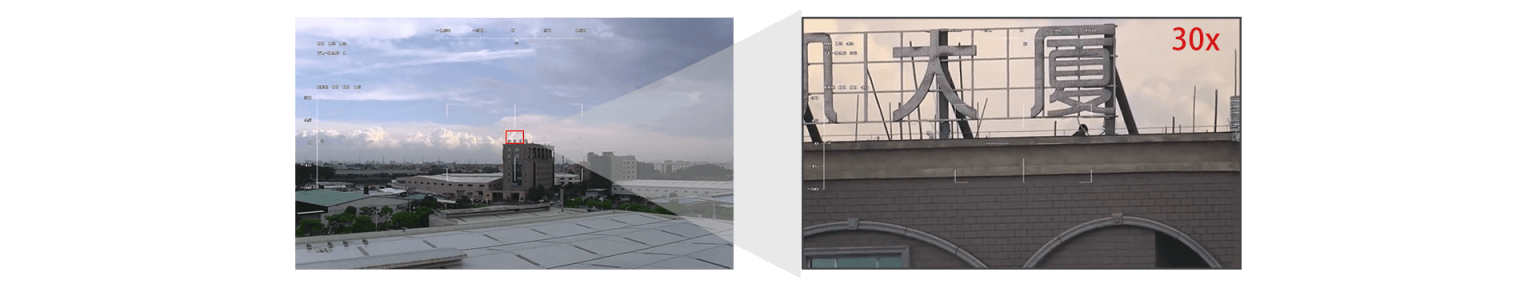

30X optical zoom gimbal camera with object tracking GPS Location Resolving and Laser Rangefinder for DJI Matrce 210, Matrice 200 drone, use for public safety, patrol, surveillance, search and rescue, police and military law enforcement use.
30X optical zoom gimbal camera with object tracking GPS Location Resolving and Laser Rangefinder for DJI Matrce 210, Matrice 200 drone, use for public safety, patrol, surveillance, search and rescue, police and military law enforcement use.

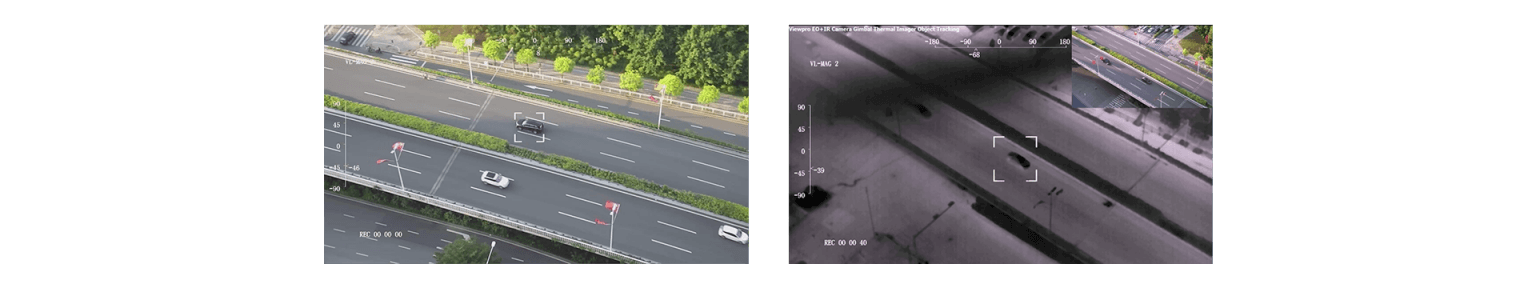

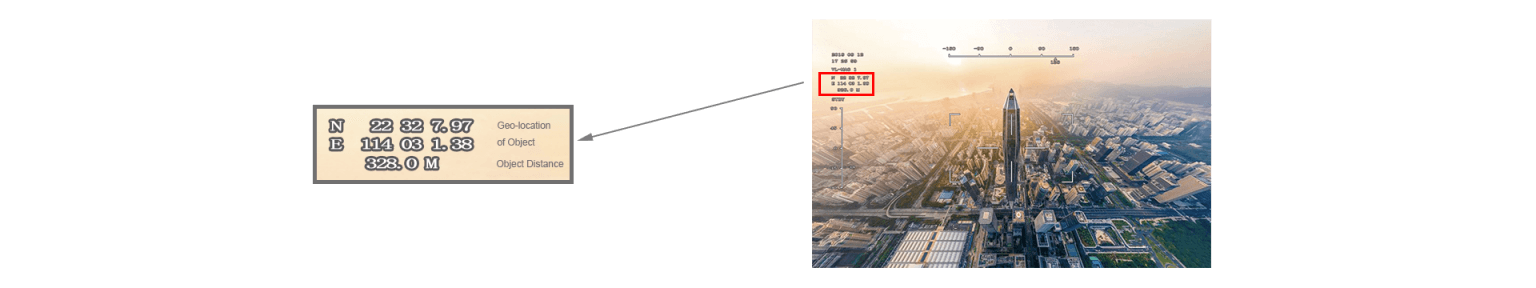

This camera is developed on DJI payload SDK, it is seamlessly compatible with DJI Matrice 200 series drone, all gimbal functions can be controlled through DJI Pilot, such as Yaw/Pitch, zoom, record/photo, tracking, etc. with the GPS Location Resolving ,calculate the distance of the object within 1500 meters, accurately analyze the longitude and latitude of the object, and display on the screen.
This drone camera is a high-precision professional 3-axis gimbal that features high stability. The 3-axis gimbal based on FOC motor control technology adopts a high-precision encoder in each motor.
Additional information
| Weight | 0.7 kg |
| Dimensions | 15 × 8 × 8 cm |
Laser Falcon is sensitive only to methane, so no false readings of other gases are possible. It is a class 3R eye-safe laser.
The concept is based on Infrared Absorption Spectroscopy. The laser emits light (spectral range of 1,65 μm), which reflects back and is captured by the sensor. The outgoing and incoming signals are compared with the built-in reference cell. If methane is present along the laser path, the laser light is partially absorbed. An algorithm calculates the gas concentration in ppm×m (parts per million multiplied by meter). The value is instantly transferred to the remote control (RC) of the drone pilot and to UgCS software.
EchoLogger ECT 400S echo sounder with tilt and temperature sensor, harness, housing, and mountings for the drone.
HS Code: 90158040 (hydrographic instruments)
EchoLogger ECT D052S dual-frequency echo sounder with tilt and temperature sensor, harness, housing, and mountings for the drone.
HS Code: 90158040 (hydrographic instruments)
Lightweight GPR system, suitable for medium-sized drones like DJI M300 RTK.
Includes a transportation box and mountings for the DJI M300 RTK or DJI M600 Pro drone.
HS Code: 90158020 (meteorological, hydrological, geophysical instrument
