DJI M300 Quick Mount Kit

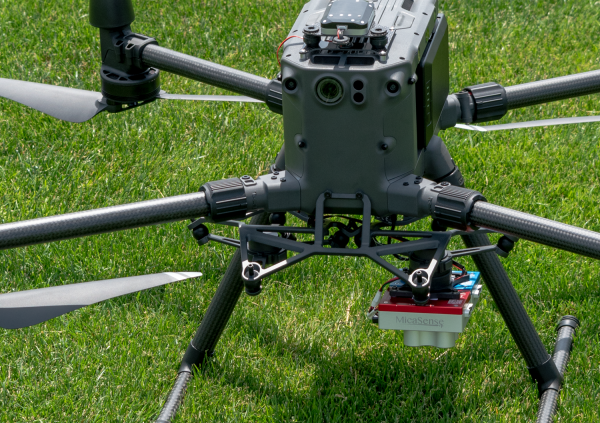

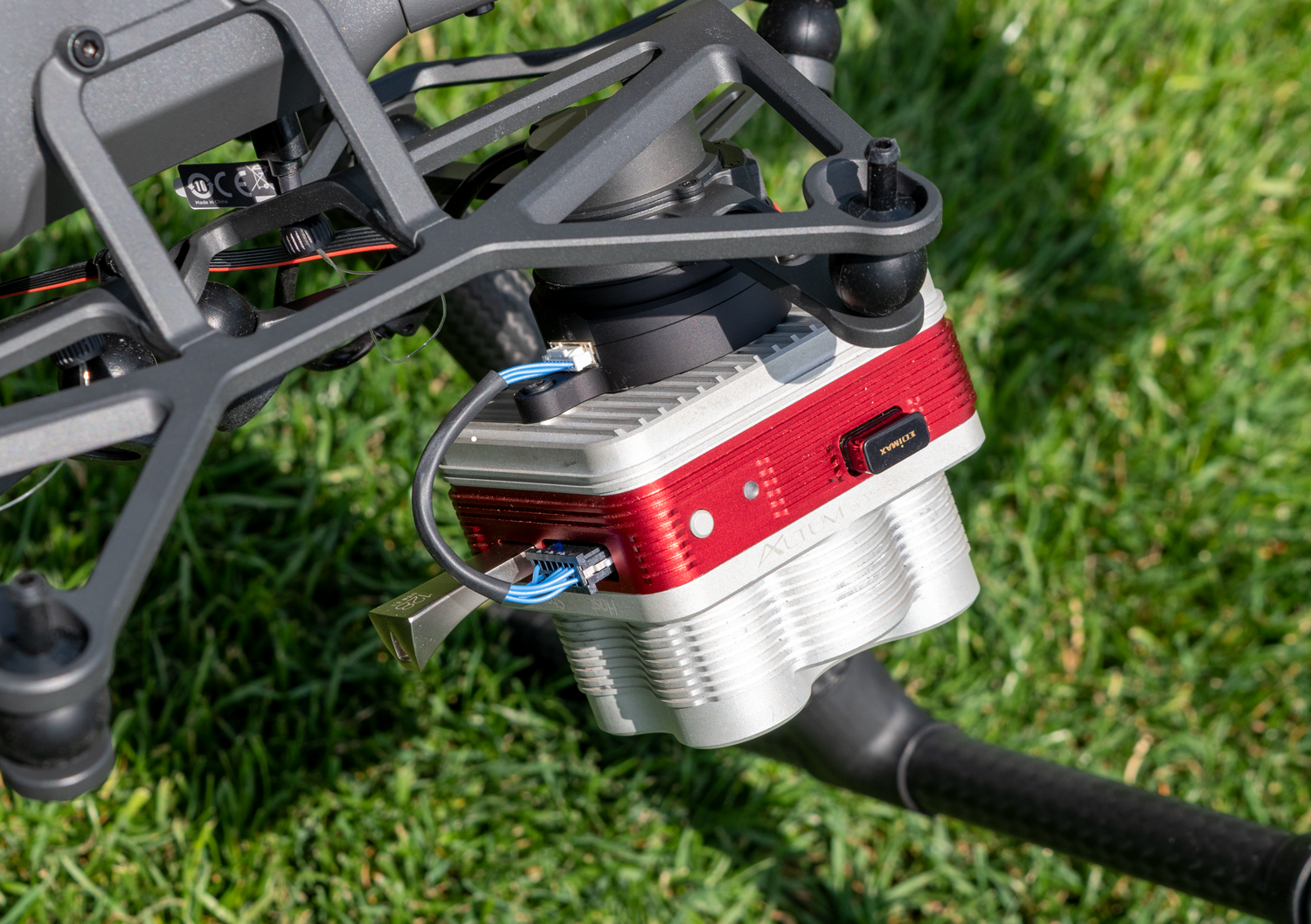

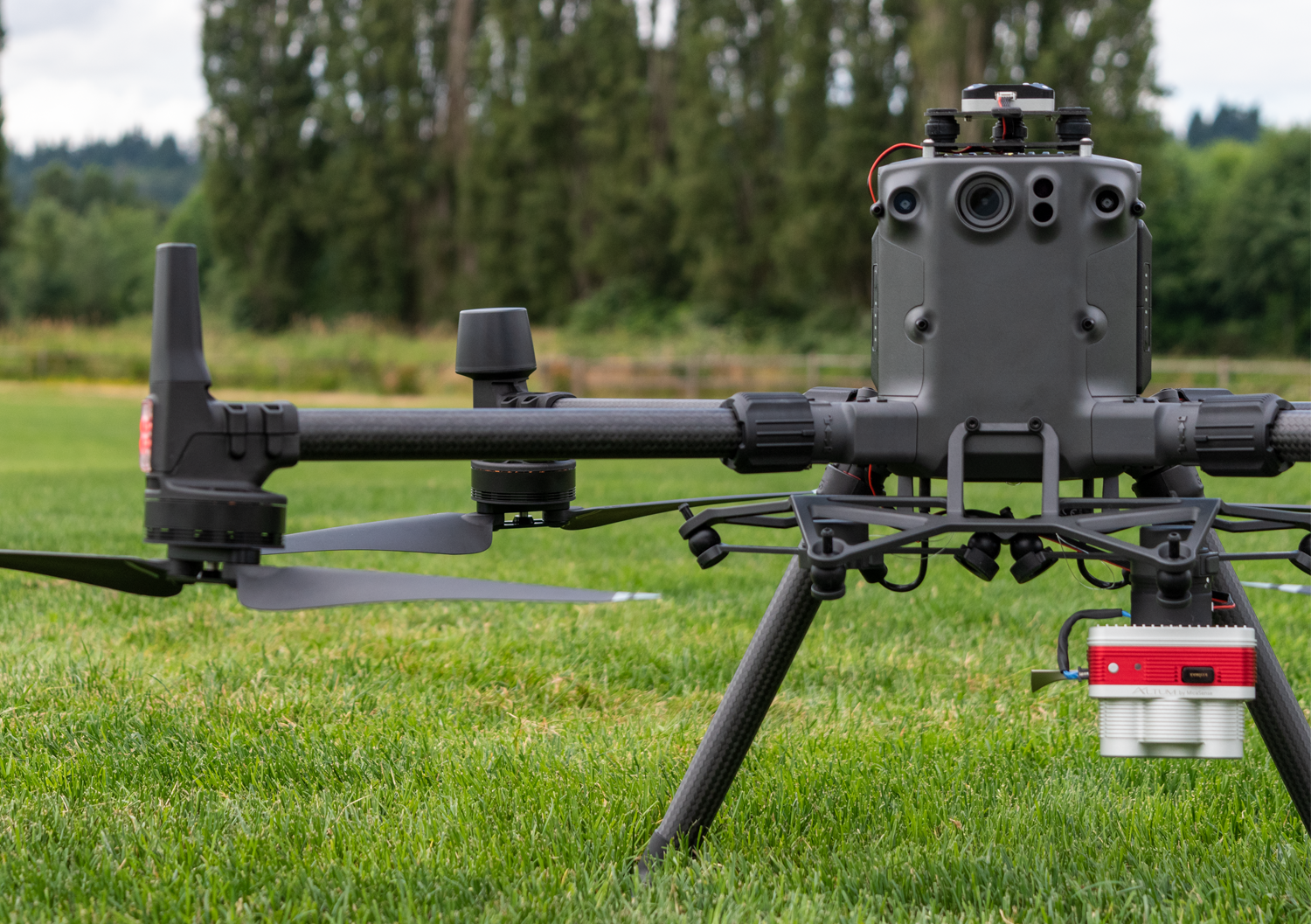

A professional, easy-to-use solution for mounting and powering the RedEdge-MX and Altum sensors on the DJI Matrice 300. Secure your sensor and DLS 2 to the M300 and connect it to drone power in four simple steps:

Category

A professional, easy-to-use solution for mounting and powering the RedEdge-MX and Altum sensors on the DJI Matrice 300. Secure your sensor and DLS 2 to the M300 and connect it to drone power in four simple steps:

  1. Attach Quick Mount adapter to camera
  2. Attach DLS 2 to DLS mount and then attach this system to your drone using provided hardware
  3. Twist-lock camera in place on M300
  4. Plug in cables

*No communication between sensor and drone provided.

*This integration kit is only compatible with the MicaSense DLS 2. Click here if you need to upgrade yours.

*Current integrations do not provide direct access to RTK precision data on DJI drones.

*M300 is only compatible with the DJI Pilot flight planner.

Category:
Matrice 350 RTK

An upgraded flagship drone platform, the Matrice 350 RTK sets a new benchmark for the industry. This next-generation drone platform features an all-new video transmission system and control experience, a more efficient battery system, and more comprehensive safety features, as well as robust payload and expansion capabilities. It is fully powered to inject innovative strength into any aerial operation.

Buy
GPR system: Radar Systems Zond Aero LF (low frequency)

Extra-lightweight GPR system, suitable for medium-sized drones like DJI M300 RTK.

Comes with 3x sets of dipoles for the 300, 150, and 100 MHz.

Utilizes Real Time Sampling (RTS) with high hardware stacking, delivering high-resolution low-noise data.

Buy
Laser Falcon methane detector

Laser Falcon is sensitive only to methane, so no false readings of other gases are possible. It is a class 3R eye-safe laser.

The concept is based on Infrared Absorption Spectroscopy. The laser emits light (spectral range of 1,65 μm), which reflects back and is captured by the sensor. The outgoing and incoming signals are compared with the built-in reference cell. If methane is present along the laser path, the laser light is partially absorbed. An algorithm calculates the gas concentration in ppm×m (parts per million multiplied by meter). The value is instantly transferred to the remote control (RC) of the drone pilot and to UgCS software.

Buy
