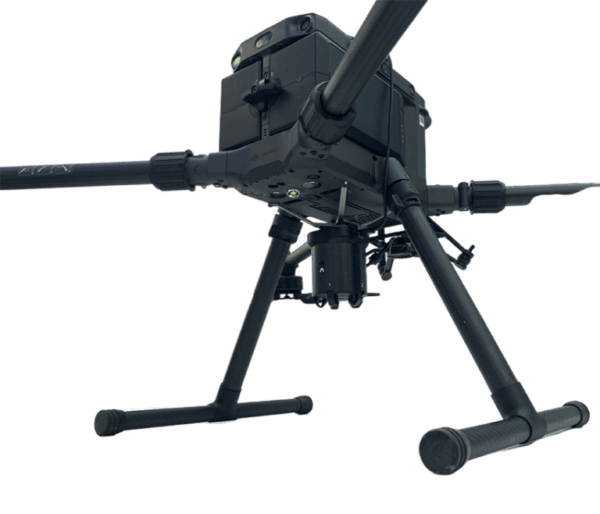

DJI M300 Drone Air Payload Drop Release Hook Mechanism System
Max payload weight: 10Kg (consider DJI M300 payload capacity,suggest no more than 3Kg
5 hooks design, one time can mount 5 payloads.
The DJI M300 drone Air payload drop release hook mechanism system, develop on DJI onboard SDK, control the drop & release via DJI smart controller -the DJI Pilot, 5 hooks design, one time can mount max 5 different payloads, come with the quick-release design, easy to install.
Features:
- The DJI M300 air drop release Mechanism develops on DJI onboard SDK, compatible with DJI matrice 300 RTK drone.
- Control and operate the drop & release via DJI smart controller – the DJI pilot.
- 5 hooks design, one time can mount 5 payloads.
- Max payload weight more than 10Kg ( consider the DJI M300 drone payload capacity, suggest no more than 3Kg)
- Quick-release design, easy to install.
- The drop mechanism is made of aviation aluminum and carbon fiber, lightweight, heavy load.
- The NON -DJI SDK version is available, that works with any multi-rotor drone, control via PWM.
DJI M300 drop mechanism specs
| Size | 62mm*62mm*92mm |
| Weight | 295g |
| Interface | DJI onboard SDK |
| Power | 18W |
| Voltage | 5V |
| Control | DJI Pilot |
| Control distance | AS fas as DJI M300 drone flight |
| Installation | Quick-release |
| Hook | 5 |
| Max payload weight | 10Kg (consider DJI M300 payload capacity,suggest no more than 3Kg |
| Other NON-DJI drone support | YES |
The PSDK load can be fixed to the M30 series flight platform, and different types of PSDK loads can be quickly removed and replaced.
The PSDK load can be fixed to the M30 series flight platform, and different types of PSDK loads can be quickly removed and replaced.
The PSDK load can be fixed to the warp and weft M350 RTK flight platform, and different types of PSDK loads can be quickly removed and replaced.
The FC30 EQUIPPED WITH A THREE-LOAD SUPPORT is designed for the DJI FlyCart 30 carrier and can support up to three ET4 FOUR DROP KIT at the same time, achieving 12-stage drops with a maximum payload of 120kg.
