DJI M30 drone gas detection air quality pollution monitoring sensor

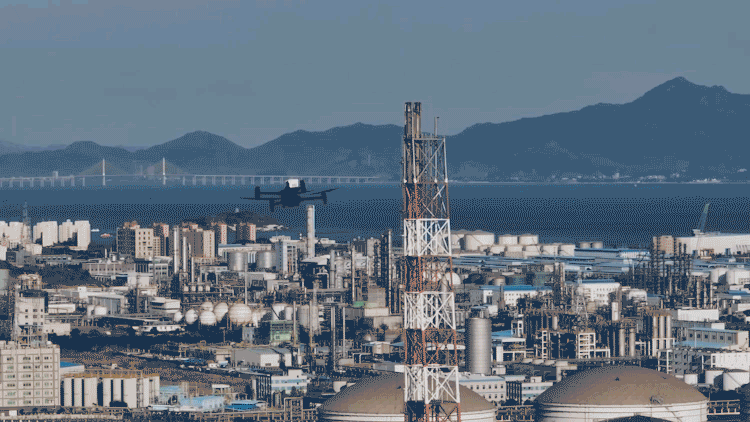

DJI M30 drone gas detection sensor for air quality pollution monitoring and harmful gas detection, develop on DJI SDK, with intelligent visual data analysis software, and high-quality 3D gas concentration distribution data obtained in real-time can provide timely and effective decision support for environmental protection, emergency, smart city, oil and gas plant and pipeline inspection.

Category

DJI M30 drone gas detection sensor for air quality pollution monitoring and harmful gas detection, develop on DJI SDK, with intelligent visual data analysis software, and high-quality 3D gas concentration distribution data obtained in real-time can provide timely and effective decision support for environmental protection, emergency, smart city, oil and gas plant and pipeline inspection.

Timely, accurate, georeferenced and visual gas concentration information is critical for decision makings in many scenarios. Choosing the right tools can get more done with less effort.

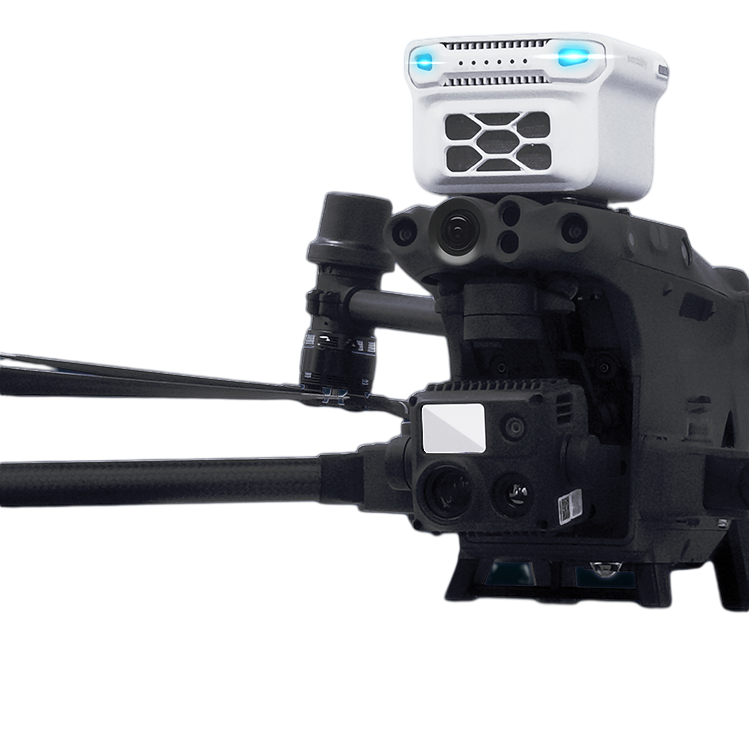

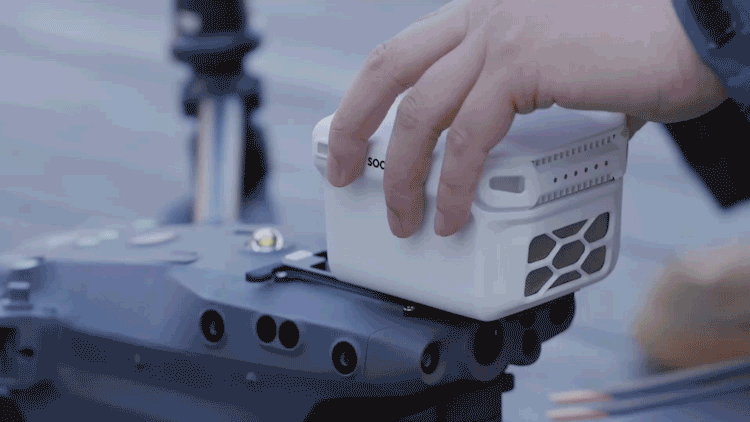

the new Mini2 air gas detection sensor works seamlessly well with the DJI M30 series aircraft. Together, they are your right-hand man for obtaining high-quality 3D gas distributions. The all-new industrial and structural designs bring significant reductions in its size and weight. The new quick-release mount and cable connection, shorten the operation preparation time even further, maximizing M30’s flight time.

Under its compact body, Mini2 air pollution sensors deliver uncompromised performance. It supports simultaneous monitoring of up to 9 gas parameters. The new RGB warning lights have a larger visible angle, making surrounding people perceive the change of gas concentration more conveniently.

Sniffer4D Mini2 supports DJI’s new Cloud API, bringing an unprecedented amount of visual information and user experience to the DJI M30’s large screen remote control. By combining with an automated drone dock, Mini2 gas detection sensor and DJI M30 can further reduce the cost of acquiring environmental data. This opens up infinite possibilities for truly unmanned, high-frequency data acquisition in many applications.

Category:
Size 102X103X72mm
Weight 300g
Interface Port DJI PSDK V3.0
Compatible with DJI Matrice 30 drone
Data transfer DJI datalink and 4G
Network 4G/3G/EDGE/GPRS Connectivity
Installation Quick-Release
Available detection Parameters PM2.5 ,PM10 , SO2  ,CO, NO2        O2  ,O3  ,VOCs ,LEL / CH4      CO2 , HF   ,H2S ,NH3 ,HCl ,H2      Cl2  ,PH3, NO ,HCN , High-Resolution CH4   ,Odor (OU)
Max gas detection Parameters per sensor 9
Detection principle Laser scattering / light scattering, electrochemistry, photoionization, non-dispersive infrared
SD card 32GB
Data Retrieval Algorithm
Working Temperature ’-20℃ to 55℃
