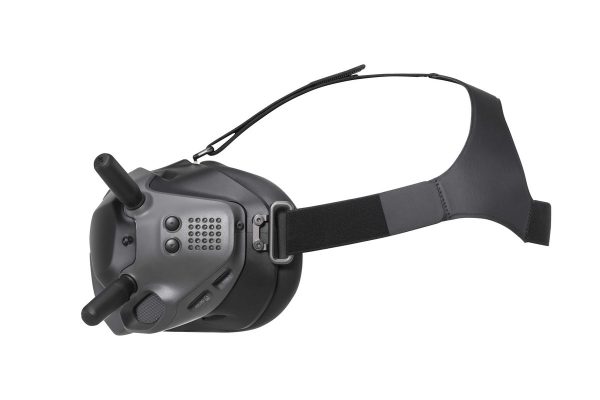

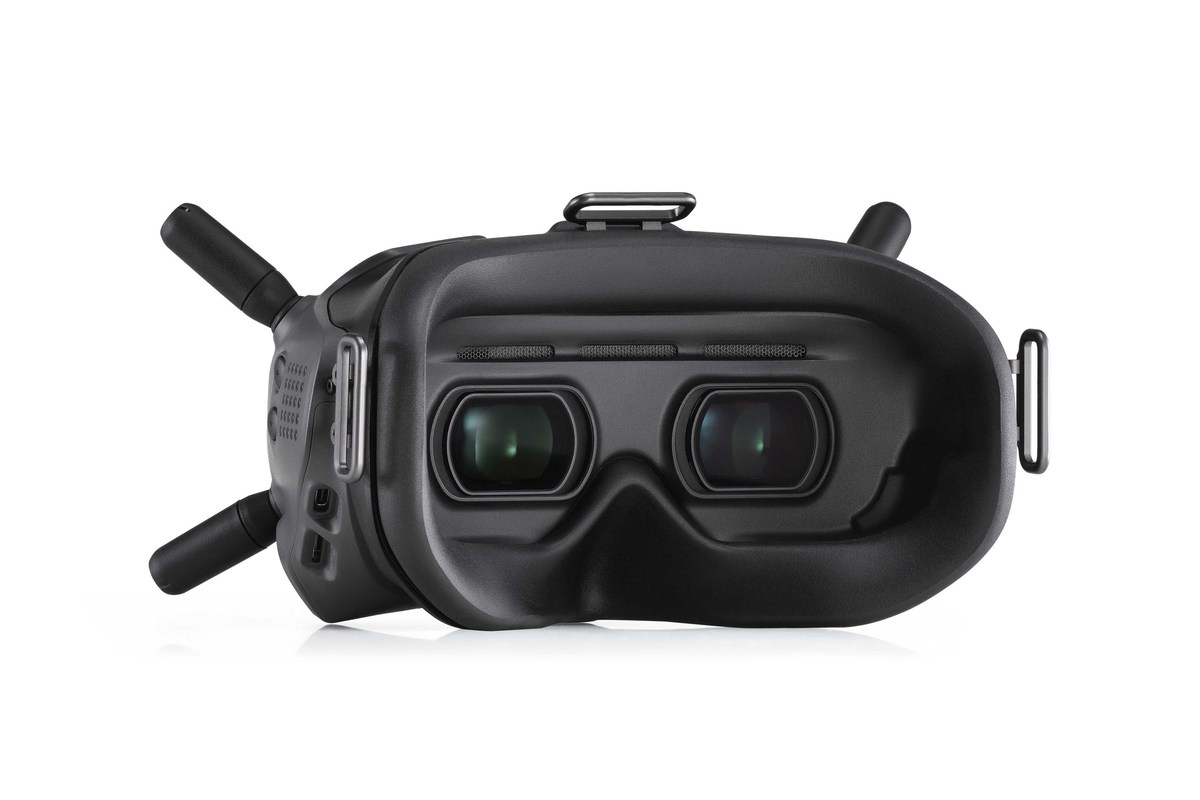

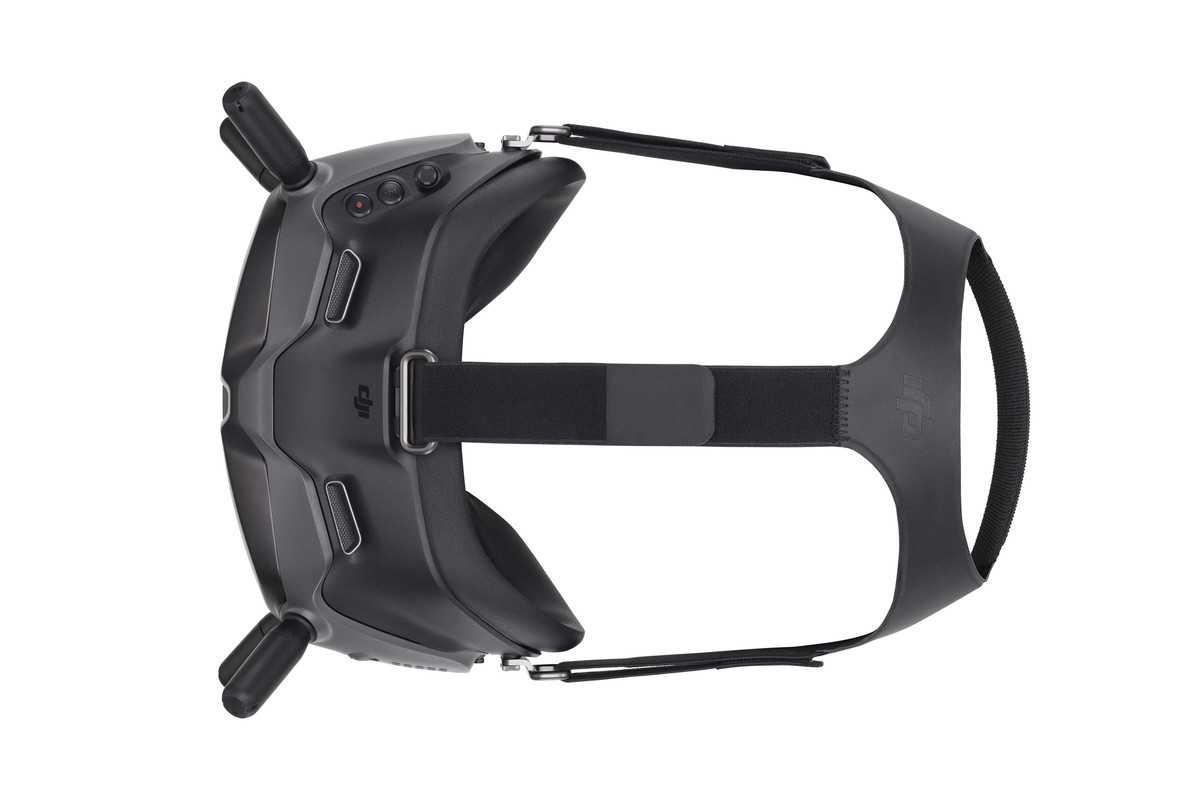

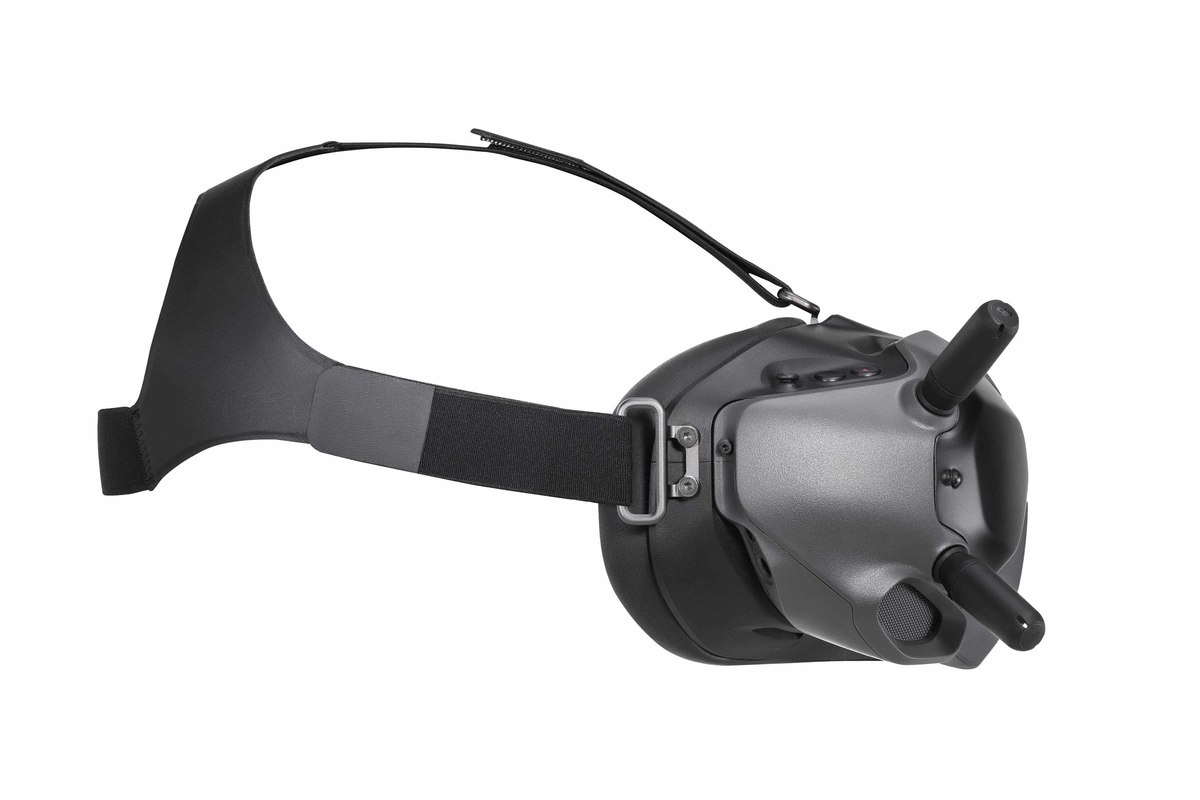

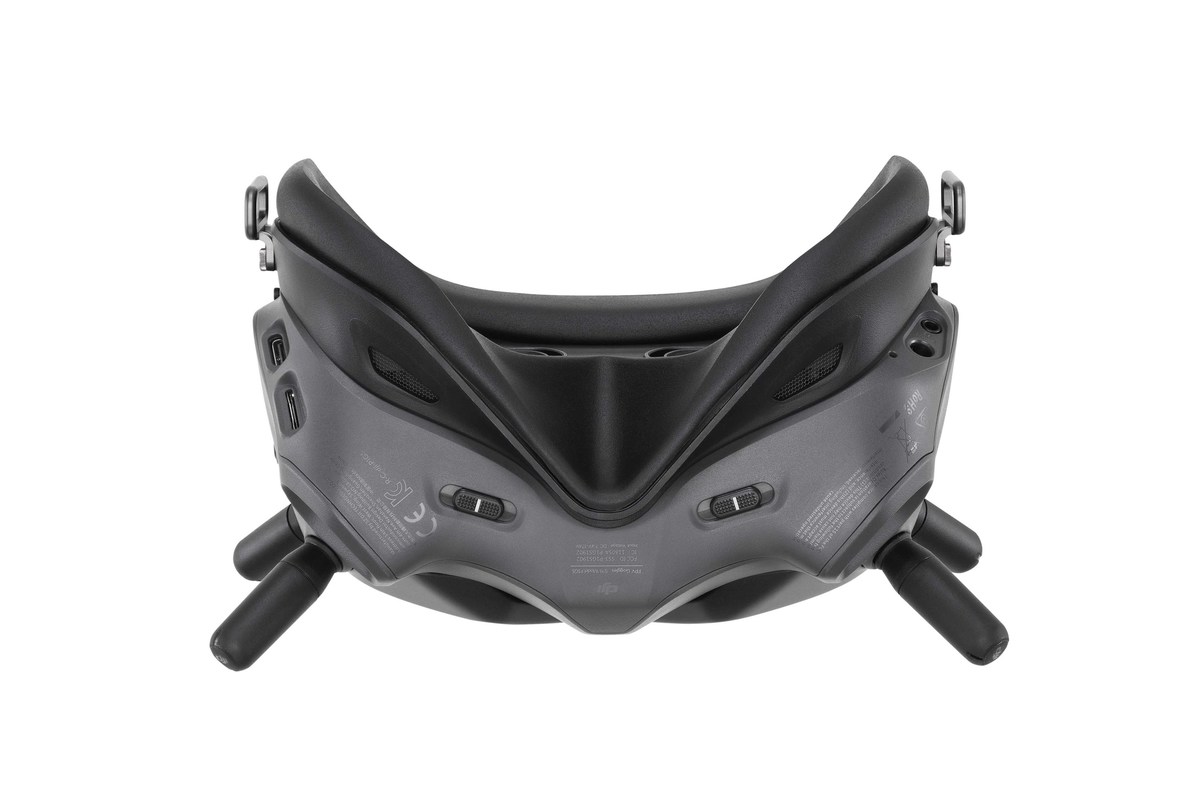

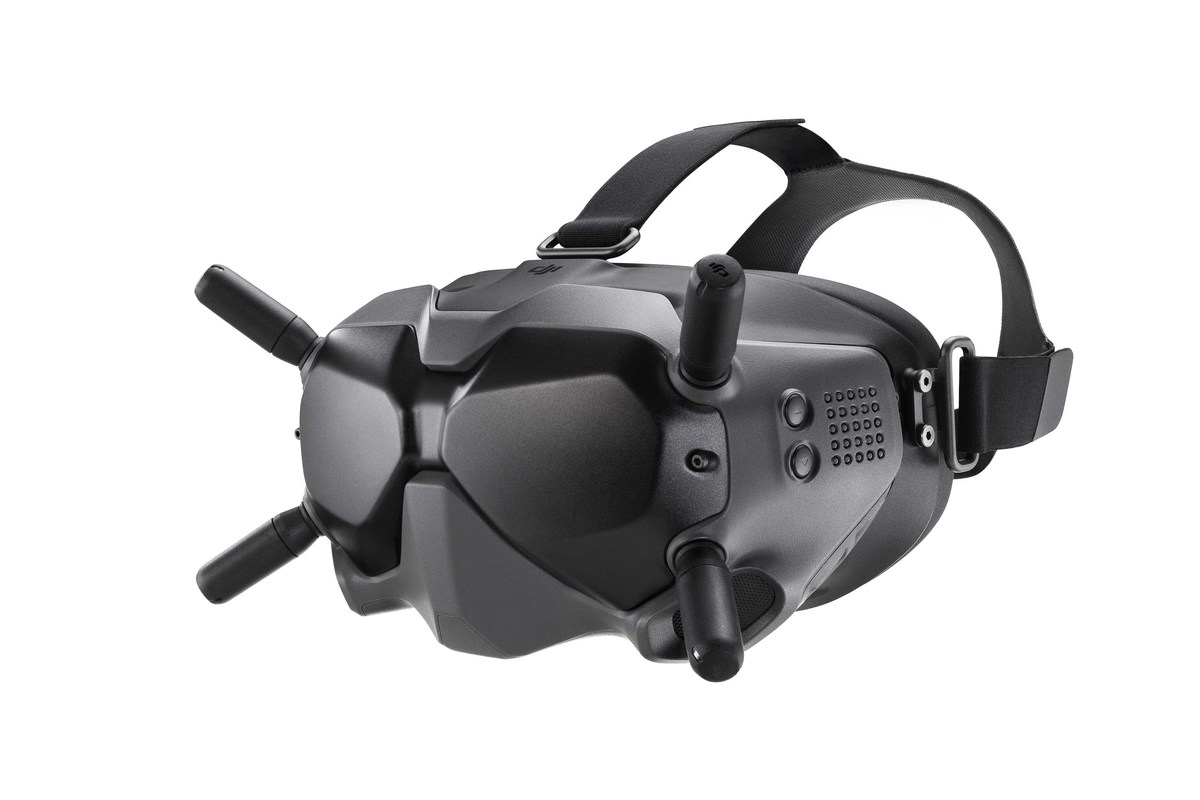

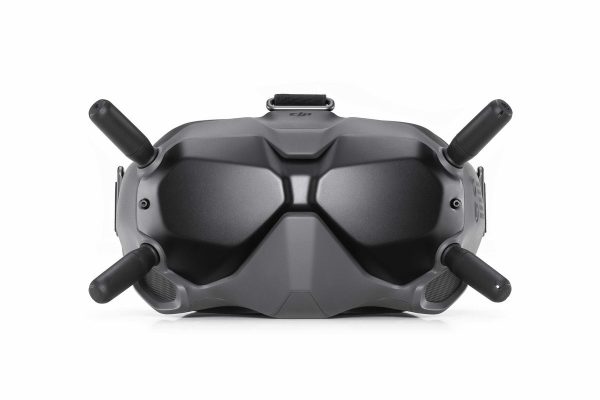

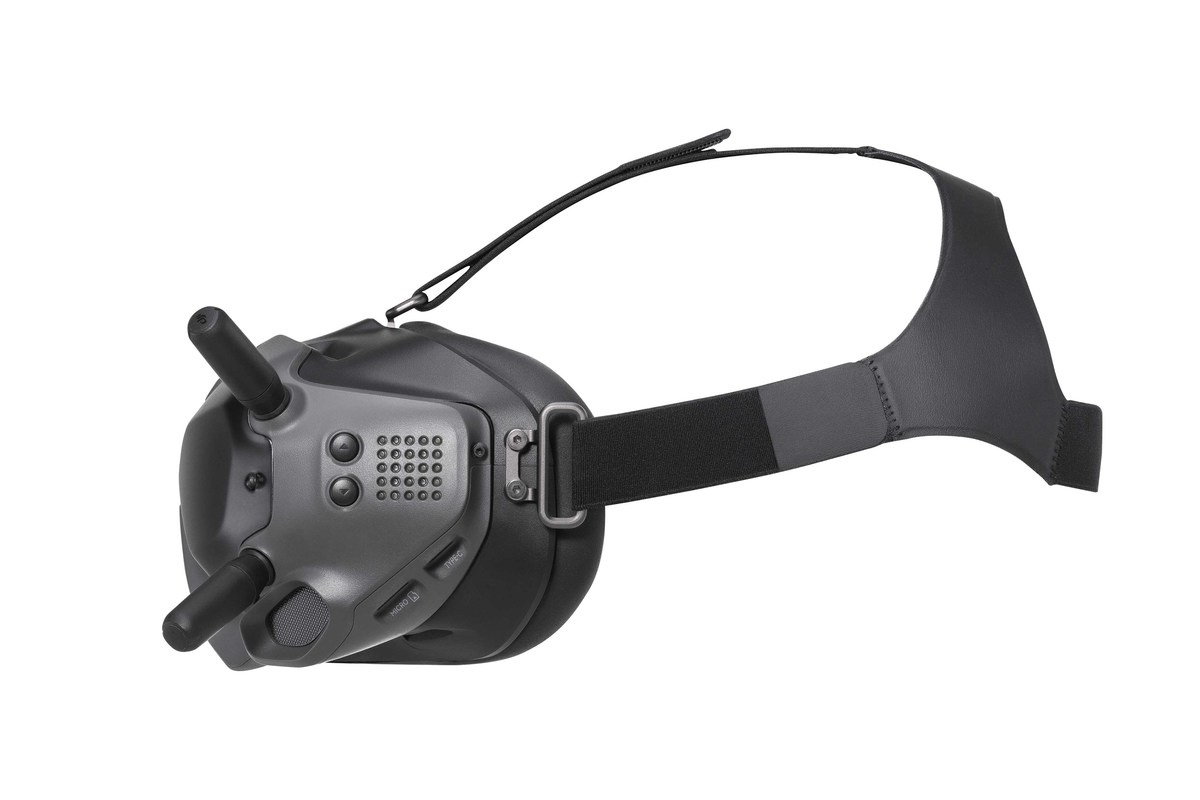

DJI FPV Goggles

High definition, low latency, strong immersion, long-distance transmission, and strong anti-interference.

Overview
The new DJI FPV Goggles with digital image transmission features high definition, low latency, strong immersion, long-distance transmission, and strong anti-interference. Target users are racing drone pilots and FPV enthusiasts.
Highlights
High definition, low latency, strong immersion, long-distance transmission, and strong anti-interference.
Tips
Avoid exposing the goggles to direct sunlight. If you use DJI FPV Goggles and DJI FPV Remote Controller at the same time, you must first link the air unit and the goggles together, and then link the remote controller to the air unit.

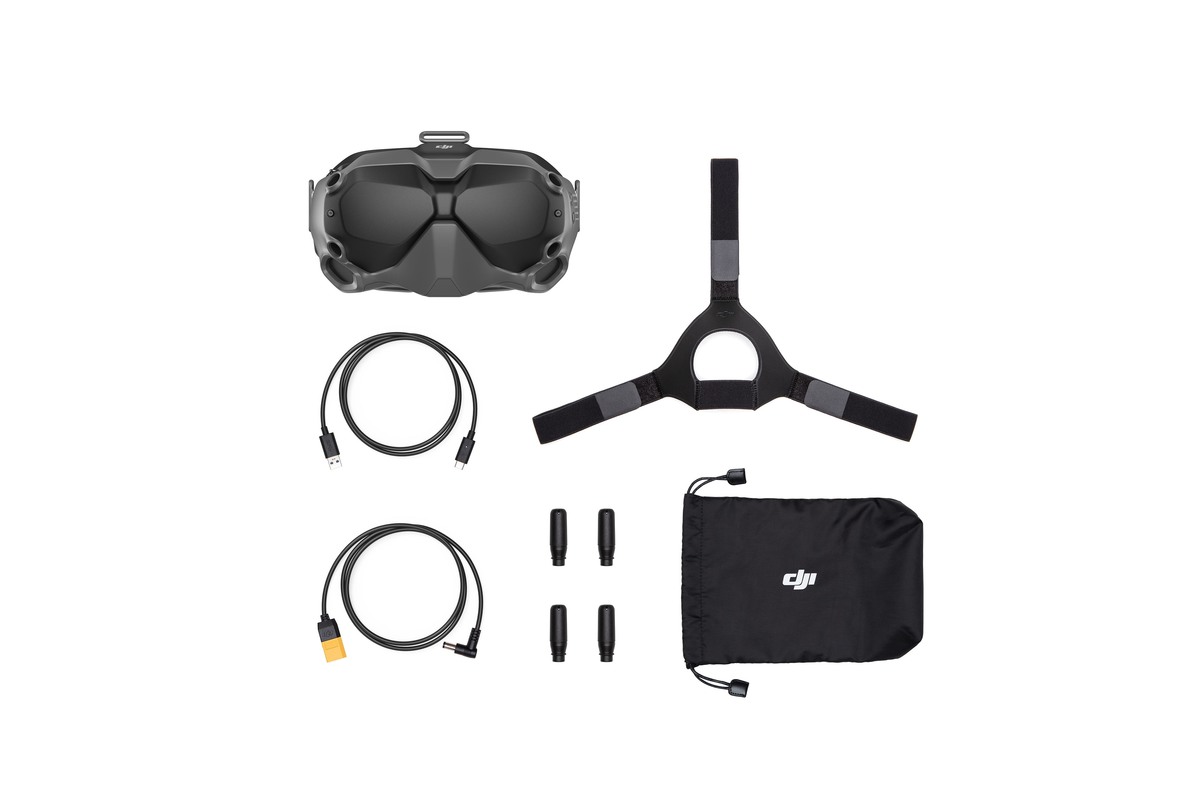

In The Box
DJI FPV Goggles (including the foam padding) × 1
Power cable × 1
Antenna × 4
Headband × 1
USB-C cable × 1
Bundle pocket × 1
Specifications

Weight: Approx. 415 g (headband and antennas included)

Dimensions:
202 × 126 × 110 mm (antennas included)
184 × 122 × 110 mm (antennas excluded)

Screen Size: 2-inch × 2
Screen Resolution (Single Screen) : 1440 × 810
Screen Renew Rate: 120 Hz
Communication Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP) : FCC/MIC: <30 dBm; CE: <14 dBm; SRRC: <19 dBm

Live View Mode
Low Latency Mode (720p/120fps)
High-Quality Mode (720p/60fps)

Video Format: MP4 (Video format: H.264)
Supported Video Play Format: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)
Operating Temperature: 32° to 104° F (0° to 40° C)
Power Input: 7.4-17.6 V
FOV Adjustable from 30° to 54°. Adjustable image size from 50%-100%
Interpupillary Distance Range: 58 -70 mm
Battery: 6.6V-21.75V
External battery, total power consumption of 7W
Supported Storage Card: microSD cards with capacities of up to 128GB

Compatibility
DJI FPV Air Unit
DJI FPV Remote Controller
