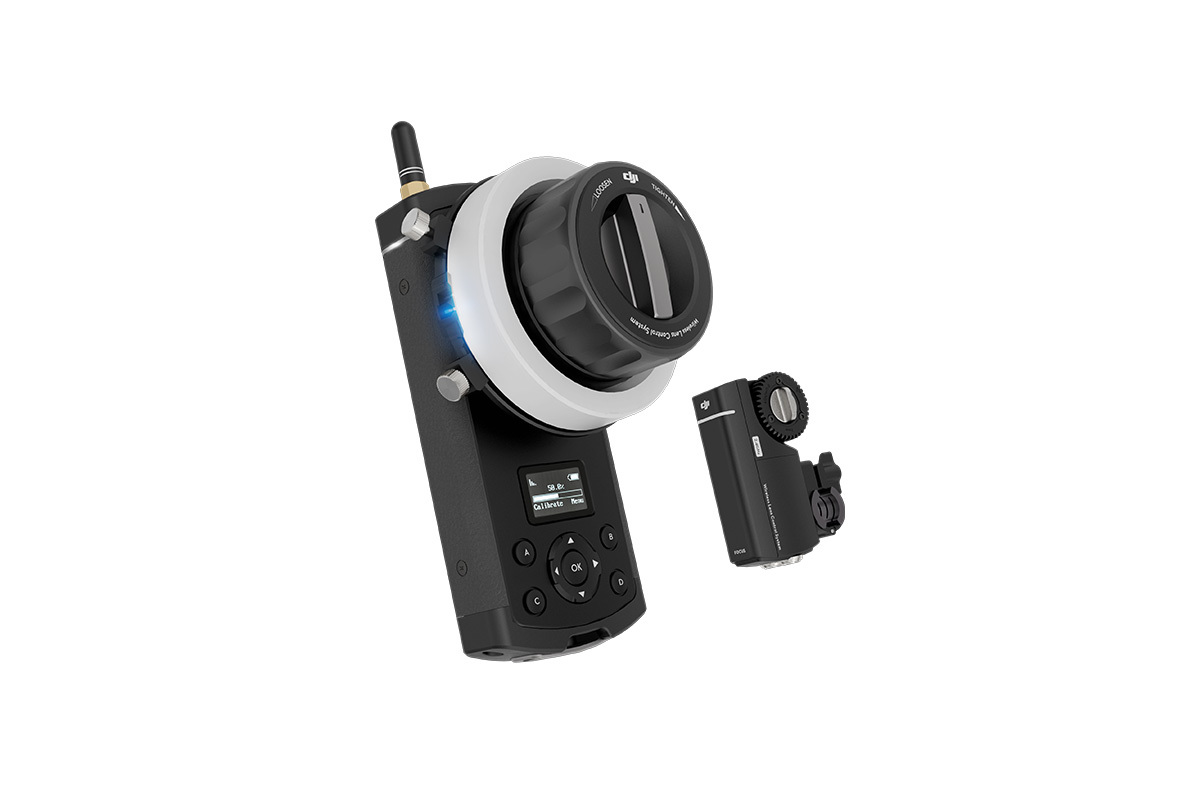

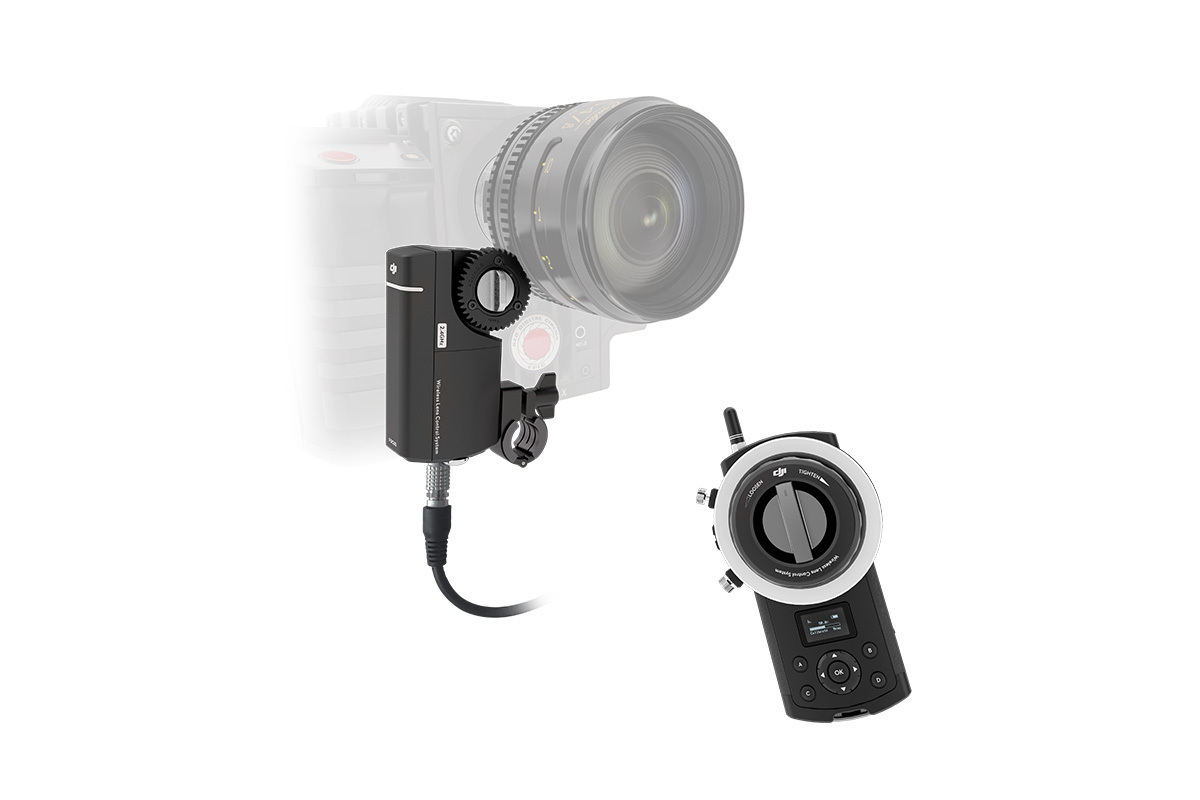

DJI Focus

The DJI Focus uses DJI’s expertise in brushless motors for previously unheard of levels of precision and accuracy. The brushless motor puts just ±0.02° of accuracy in your hands so that turning the remote is just like turning the lens itself. It also features high torque and a fast reaction speed so you can keep your subject in focus no matter how it moves.

*The dedicated CAN Bus cable for the Inspire 1 remote controller is not included with the DJI Focus and should be purchased separately.

Category Tag

General

Operating Frequency
2.415-2.473 GHz
Max. Transmission Distance
100 m (out and unobstructed)
Transmitter Power
14 dBm
Operating Temperature Range
-20° to 55℃

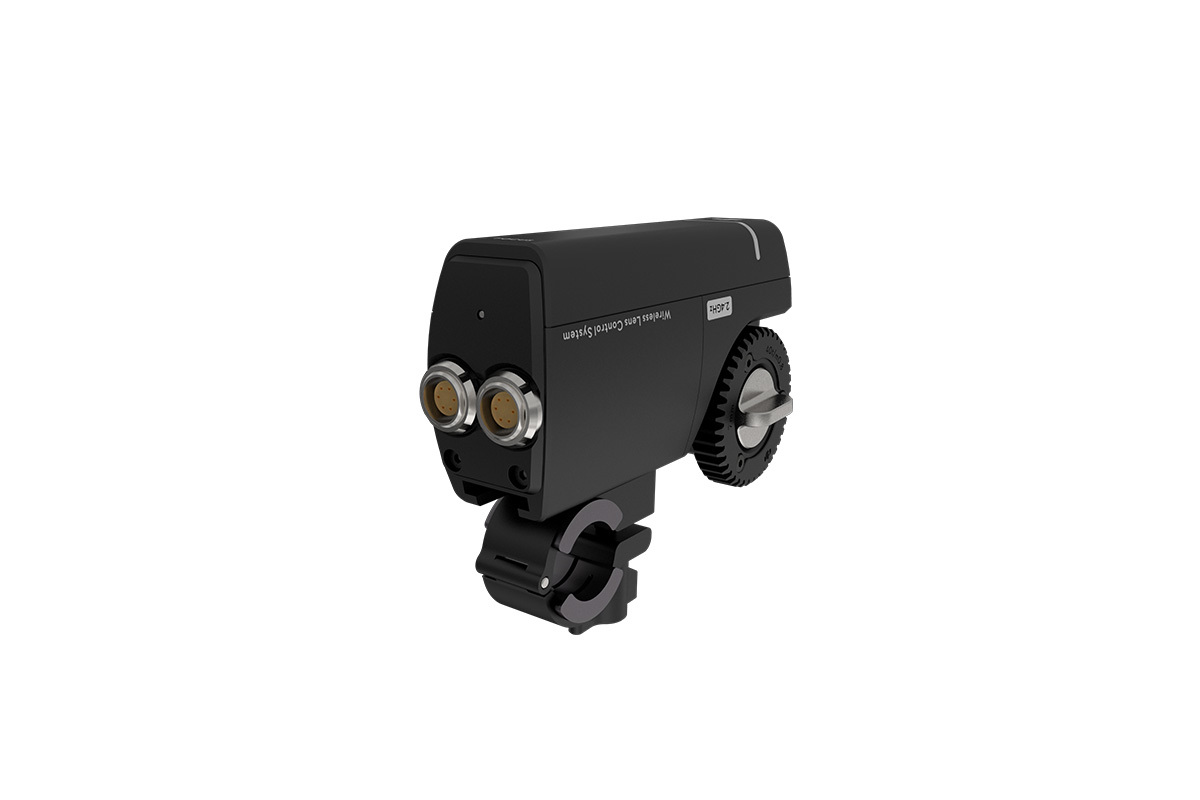

Motor

Weight
170 g
Dimensions
90*50*26 mm
Max. Torque
0.35 Nm
Max. Speed
192 rpm
Working Current
  • Static current: 80 mA (@12 V)
  • Stall current: 2 A (@12 V)
Working Voltage
9-16 V
Noise
<25 dB (@96 rpm)
Rob Clamp Inner Diameter
19 mm or 15 mm
Gear
Teeth: 40, Module: 0.8

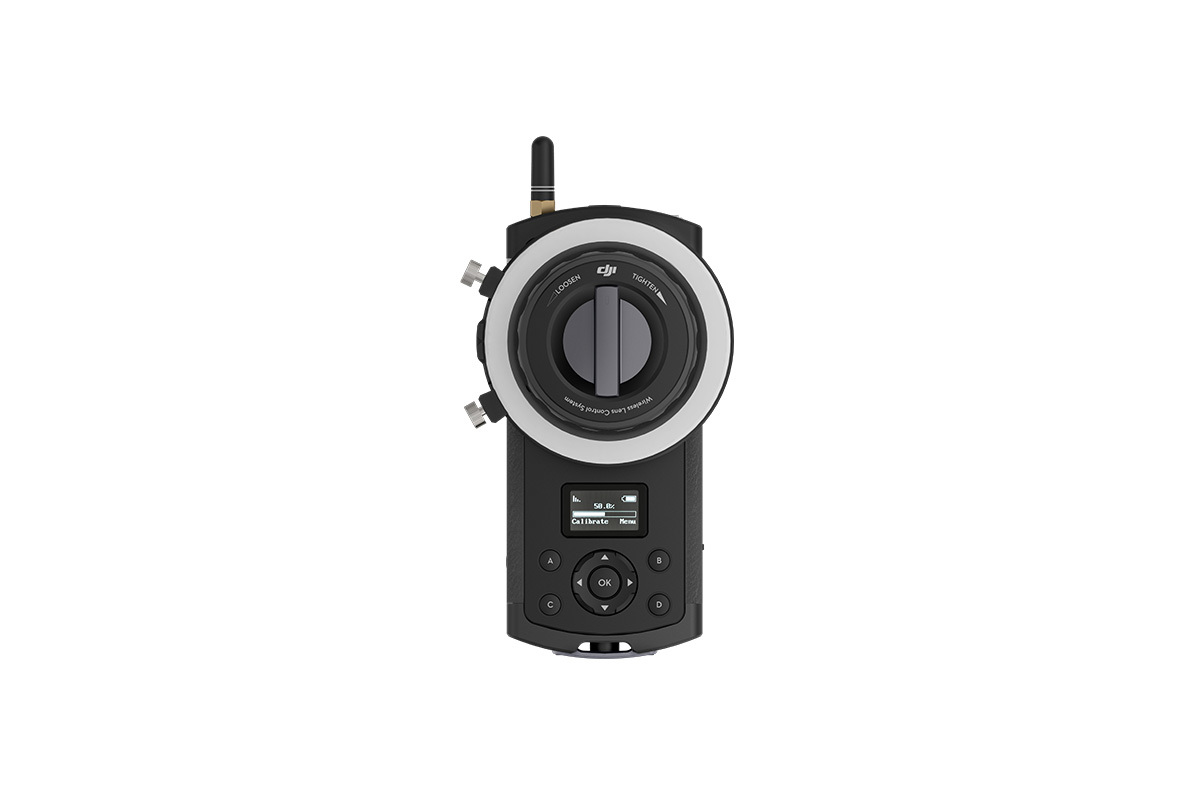

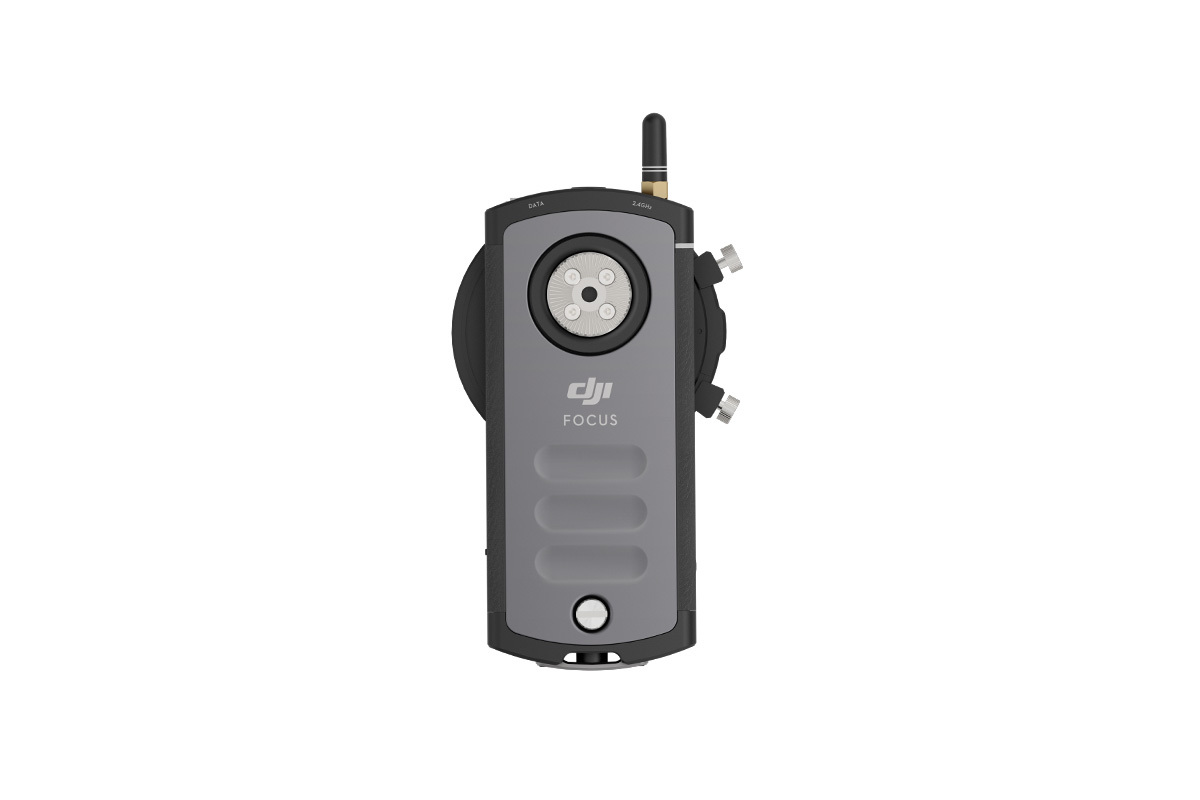

Remote Controller

Weight
745 g
Dimensions
153*86*90 mm
Battery
  • Model: FB01-554461
  • Type: LiPo
  • Capacity: 1700 mAh,6.29 Wh
  • Voltage: 3.7 V

Lens Gear Ring

Teeth
105
Module
0.8
Diameter
60 mm, 70 mm, 80 mm, 90 mm
Category: Tag:

Based on 2 reviews

5.0 overall
2
0
0
0
0

Add a review

  1. Rasul

    I like the way it works.Great!It has a good battery life and high-quality lenses. It is a little bit pricy but I think it is worth its money.

    Rasul

  2. Stephan

    That main factor which influenced my decision is that DJI Focus is endowed with high torque. Besides, it has a fast reaction speed and this allows me to keep the moving object in focus. Use it for several months and can’t complain about any glitches.

    Stephan
