DJI Dock

DJI Docks are rugged, reliable, and are built to operate 24/7, day or night, rain or shine.

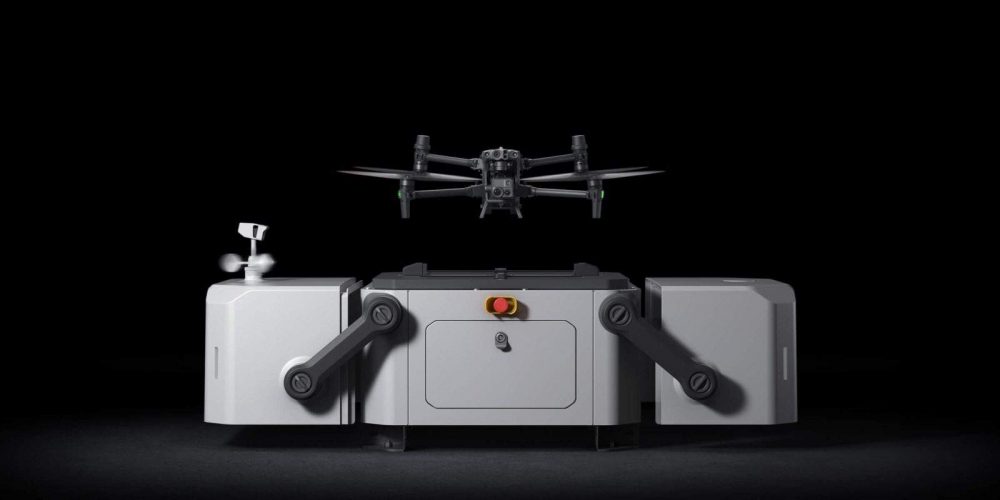

Each DJI Dock houses a Matrice 30 where it lands, recharges, takes off, and executes missions programmed in DJI FlightHub 2.

DJI Dock

For Roads Less Traveled

DJI Docks are rugged, reliable, and are built to operate 24/7, day or night, rain or shine. Each DJI Dock houses a Matrice 30 where it lands, recharges, takes off, and executes missions programmed in DJI FlightHub 2.
Play Video

Integrated and Easy to Deploy

Work Smarter With Automation

Cloud Management at Your Fingertips

7 km Operation Radius1

Fast Charge for Minimal Downtime2

-35℃ to 50℃ Operating Temperature

Support for Private Deployment

Open Edge Computing

A New Take on Remote Work

Complete Cloud Control

With FlightHub 2, unlock full DJI Dock functionality from the cloud. Schedule missions, create and edit flight routes, and manage data collected.

Real-time Awareness

Live stream in high-definition at any time to check on your DJI Dock or your drone.
Play Video
Play Video

Mission Planning

Plan complex flight routes remotely through FlightHub 2.

Flight Plan Management

Edit, manage, and push flight routes to your DJI Docks and keep track of flight progress and results.
Play Video
Play Video

Media Management and Storage

Review the geo-tagged pictures, videos, maps, and panoramas collected by your drones. Data collected by your drones can be automatically uploaded and stored for later use.

One-Stop Operation and Maintenance

Monitor the health and status of your DJI Docks and drones, all remotely from the cloud.
Play Video

Fast Charging, Fast Turnaround

Fast charge and take off thanks to TEC air conditioning that cools the drone batteries, enabling charging from 10-90% in just 25 minutes2.
Play Video

A Powerful, Industrial Solution

Day or Night, Rain or Shine

DJI Docks are built to withstand the elements, so you don’t have to.

IP55

Ingress Protection

-35℃ to 50℃

Operating Temperature

40kA

Surge Protection3

5 Hours

Backup Battery4

Active Temperature Control

For fast charging and drone safety

6 Months

Maintenance Interval5
Play Video

Matrice 30 Series Dock Version

Non-stop Ops

The M30 Series Dock Version has flagship-level performance with maximum wind resistance of 15 m/s 6, IP55 Ingress Protection, and works in temperatures ranging from -30℃ to 50℃ thanks to its TEC air conditioning.
Play Video
Play Video

Wide Area Coverage

Fully charged, the M30 flies for 40 minutes7 and can conduct missions and inspections up to 7 km from the Dock.

Target Details at your Fingertips

The M30 Series Dock Version integrates wide, zoom, and thermal cameras (M30T only) with a laser rangefinder, which together can capture the aerial data you need, when you need it.
Play Video

Simple Setup

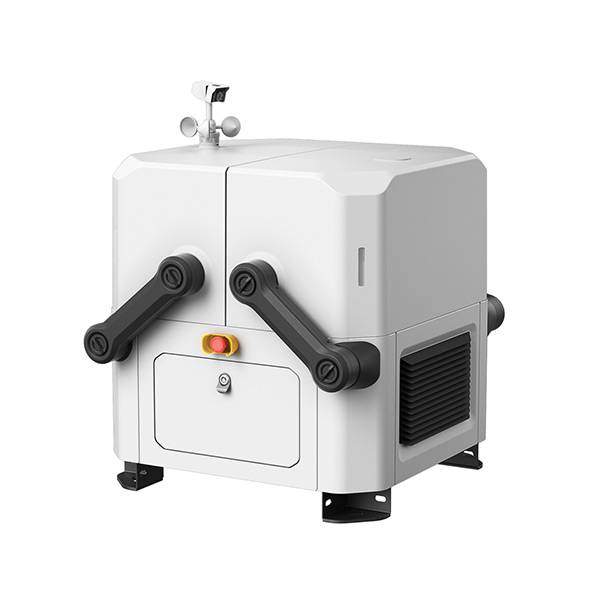

DJI Docks weigh less than 100 kg and have a <1 square meter footprint. Setup requires ground fixation, access to power and internet, and quick configuration via the DJI RC Plus remote controller.

Integrated Design

DJI Docks are packed with highly integrated hardware, improving functionality.

Modular Maintenance

The modular design of core components simplifies maintenance.

Highly Upgradable Design

Private Deployment

Cloud API opens up Dock functionality to developers and system integrators, who can set up a custom, private server.

Edge Computing

DJI Docks have edge computing expansion slots that enable pre-processing of media files, and more, to further improve operational efficiency.

DJI Dock Bundle

M30 Dock Version

M30T Dock Version


General

Product Name DJI Dock
Total Weight 90 kg
Dimensions Cover Open (Weather Station excluded): 1,675 mm×895 mm×530 mm (L×W×H)
Cover Closed (Weather Station excluded): 805mm×895mm×840 mm (L×W×H)
Input Voltage 100-240 VAC, 47-63 Hz
Max Input Power 1,500 W
Operating Temperature -35 to 50° C (-31 to 122° F)
Ingress Protection Rating IP55
Number of Drones Accommodated 1
Max Allowable Landing Wind Speed 12 m/s
Max Operating Altitude 4,000 m
Max Operating Radius 7,000 m
Receiving Frequency of RTK Base Station Satellite Simultaneously receive:
GPS: L1 C/A, L2, L5
BeiDou2: B1l, B2l, B3l
BeiDou3:B1l, B1C, B2a, B3l
GLONASS:L1, L2
Galileo: E1, E5A, E5B
Positioning Accuracy of RTK Base Station Horizontal: 1 cm+1 ppm (RMS)
Vertical: 2 cm+1 ppm (RMS)

Charging Performance

Output Voltage 18 to 26.1 V
Charging Time 25 minutes
Note: This is if the ambient temperature is 25°C (77° F), and the aircraft is charged from 10% to 90%.

Video Transmission

Video Transmission System O3 Enterprise
Operating Frequency 2.4000-2.4835 GHz
5.725-5.850 GHz
Antennas 4 antennas, 2T4R
Transmitter Power (EIRP) 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)

Air Conditioning System

Operating Voltage 48 VDC
Air Conditioning Type TEC Air Conditioning

Backup Battery

Battery Capacity 12 Ah Output Voltage 24 V Battery Type Lead-acid Battery Backup Battery Life > 5 hours

Network Access

Ethernet Access 10/100/1000Mbps Adaptive Ethernet port

Sensor

Wind Speed Sensor Supported
Rainfall Sensor Supported
Ambient Temperature Sensor Supported
Water Immersion Sensor Supported
In-cabin Temperature Sensor Supported
In-cabin Humidity Sensor Supported
Vibration Sensor Supported

Integrated Security Camera (On Cover)

Resolution 1920×1080
Field of View (FOV) 180°
Auxiliary Light Supported, Auxiliary White Light

Lightning Protection

Supported Software

AC Power Port 40 kA (8/20μs waveform), meets EN/IEC 61643-11 TYPE 2 protection level requirements
Ethernet Port 1.5 kA (8/20μs waveform), meets EN/IEC 61643-21 CATEGORY C protection level requirements
Applications DJI Pilot 2 (connects to DJI Dock via DJI RC Plus for configuration and commissioning)
Cloud Platform DJI FlightHub 2
3rd Party Platforms through DJI Cloud API

Expansion Capability

Open Protocol DJI Cloud API
Edge Computing Internal power supply, data interface, and installation space

Which aircrafts are compatible with DJI Dock?

DJI Dock is compatible with the M30 series (Dock version).

What models does the M30 series (Dock version) have?

The M30 series (Dock version) includes two versions: the M30 (Dock version) (its gimbal and camera have three sensors: wide-angle camera, zoom camera, laser range finder) and the M30T (Dock version) (its gimbal and camera have four sensors: wide-angle camera, zoom camera, laser range finder, thermal imaging camera).

What’s the difference between the M30 series and the M30 series (Dock version)?

The M30 series (Dock version) is equipped with a charging interface and charging management module at the landing gear.

Can the M30 series (Dock version) be controlled by a remote controller (RC)?

Yes. The M30 series (Dock version) can be controlled after linking the DJI RC Plus remote controller (RC) to the aircraft.

What image transmission technology does DJI Dock use?

DJI Dock uses OcuSync 3 (O3) Enterprise image transmission, and supports 4G transmission links.
Note: 4G image transmission is not available in some countries/regions.

What level of surge protection does the DJI Dock have?

AC surge protection capacity is 40kA (8/20μs waveform), and meets EN/IEC 61643-11 TYPE 2 protection levels. RJ45 surge protection capacity is 1.5kA (8/20μs waveform), these meet the CATEGORY C protection level of EN/IEC 61643-21. Surge protection capability depends on the capacity and reliability of grounding. To minimize the risk of surges, please make sure that grounding is done properly during installation.

Does DJI Dock support movement during operations?

Not at the moment, but you can change the Dock location when the drone is not operating, and you can operate again after installing and configuring at the new location.

How does DJI Dock access the network?

Use a standard RJ45 network port, or install a DJI Cellular Module to access the network.
Note: 4G availability varies in different countries and regions.

What requirements for network bandwidth does DJI Dock have?

For better user experience, it’s recommended that the upload and download rate of network bandwidth be no less than 10Mbps.

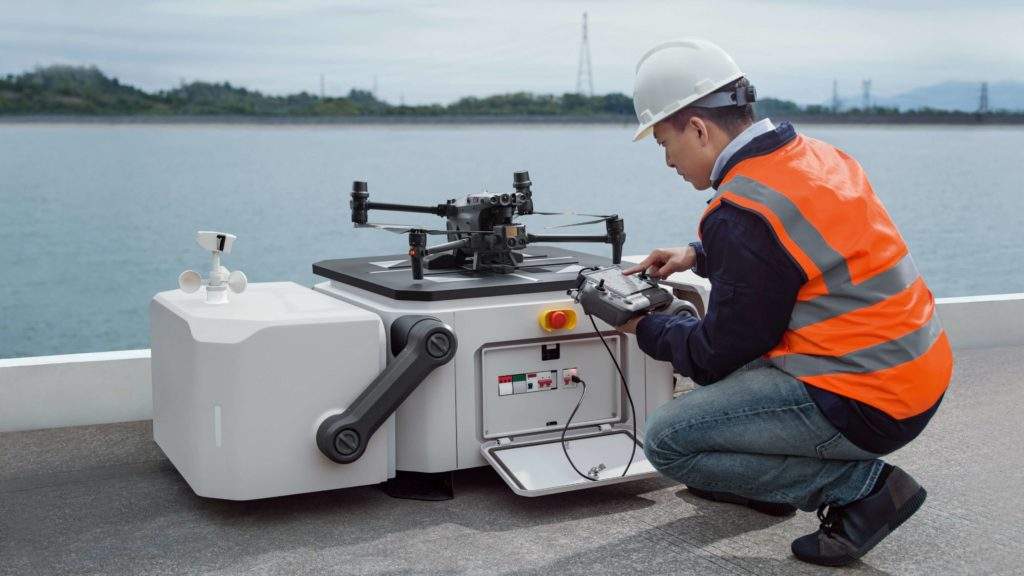

How to install and configure DJI Dock?

  1. Fix DJI Dock on a flat, level surface;
  2. Connect the power cables to DJI Dock after it is fixed, connect DJI Dock to the network using a network cable or install DJI Cellular Module;
  3. Quickly configure DJI Dock using the DJI RC Plus remote controller (RC).

Can a M30 series (Dock version) drone complete a single operation by taking off/landing at different DJI Docks?

No.

What’s the interval between single operations of DJI Dock?

The shortest interval between two flights is 25 minutes.
Note: This is if the ambient temperature is 25°C (77°F), and the aircraft battery is charged from 10% to 90%. As the temperature rises, the time required for the battery to cool down will increase and the interval between flights will increase.

Is it necessary to install an additional RTK Base Station for DJI Dock?

No, DJI Dock has a built-in RTK station.

Is it necessary to install an additional weather station for DJI Dock?

No, DJI Dock has a built-in integrated weather station that can monitor wind speed, rainfall and temperature.

Does DJI Dock support the installation of external antennas?

Supported.

Does DJI Dock support SDK development?

Supported. DJI Dock fully supports application protocols, such as plan distribution, media transmission, real-time reporting of device information, and remote debugging, via an API interface, to meet users’ development demands for customized cloud management systems. Supports access to a variety of network environments for easy privatized deployment.
