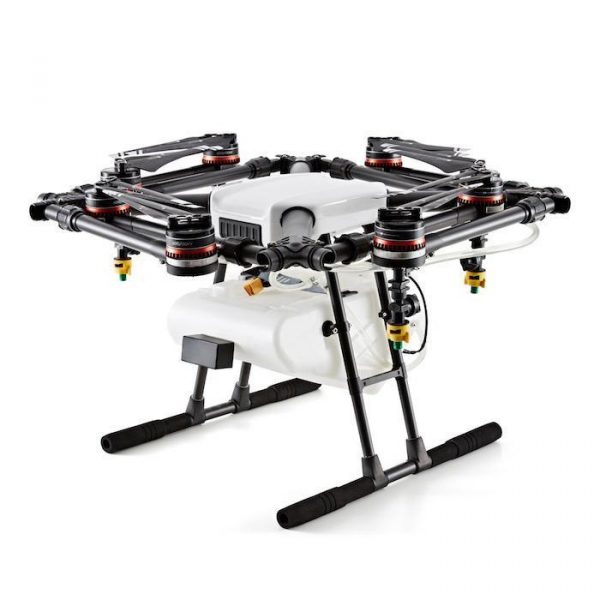

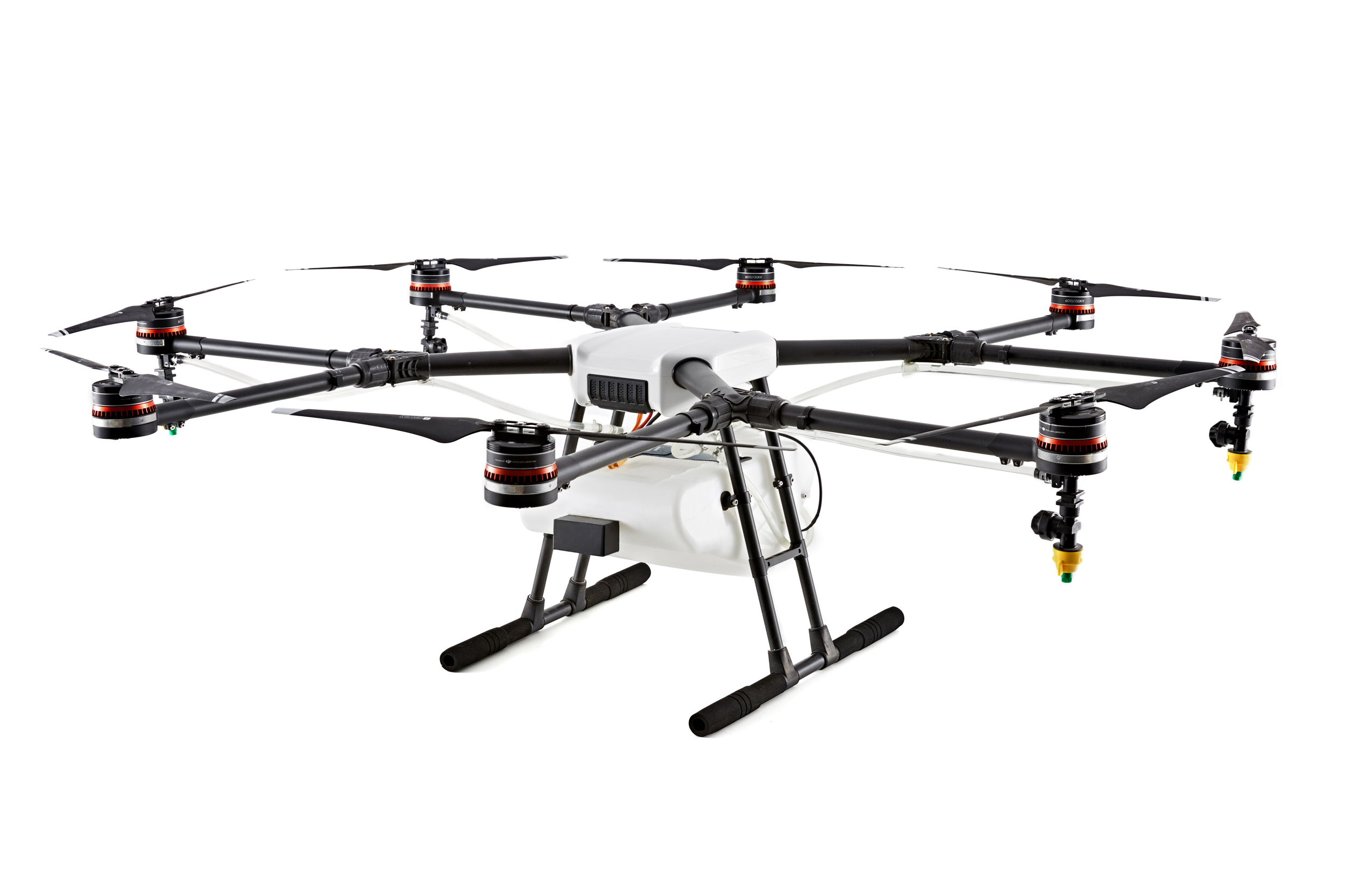

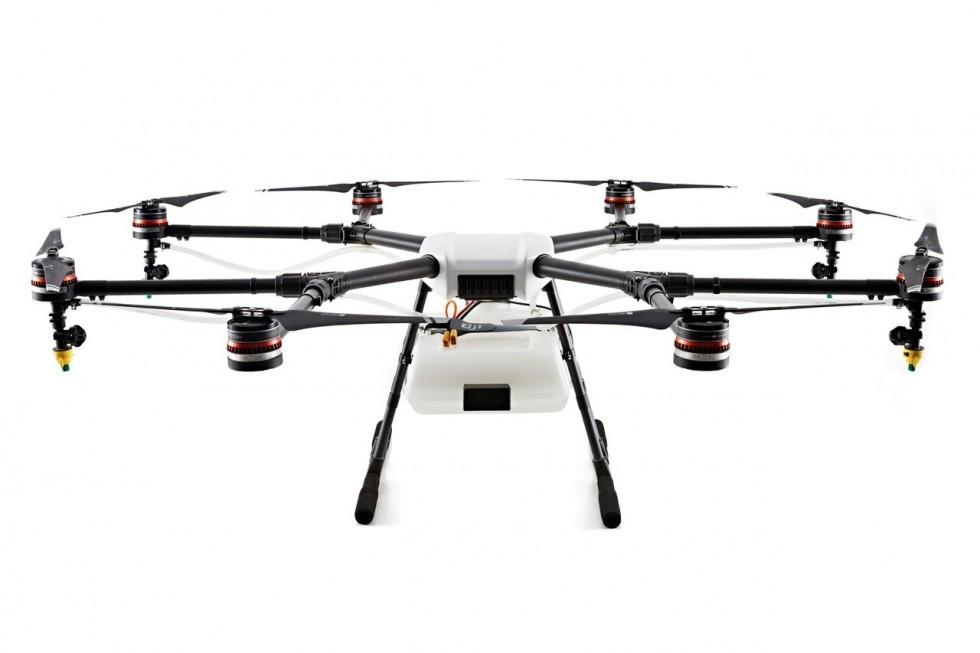

DJI AGRAS MG-1

The DJI Agras MG-1 is an octocopter designed for precision variable rate application of liquid pesticides, fertilizers, and herbicides, bringing new levels of efficiency and manageability to agriculture.

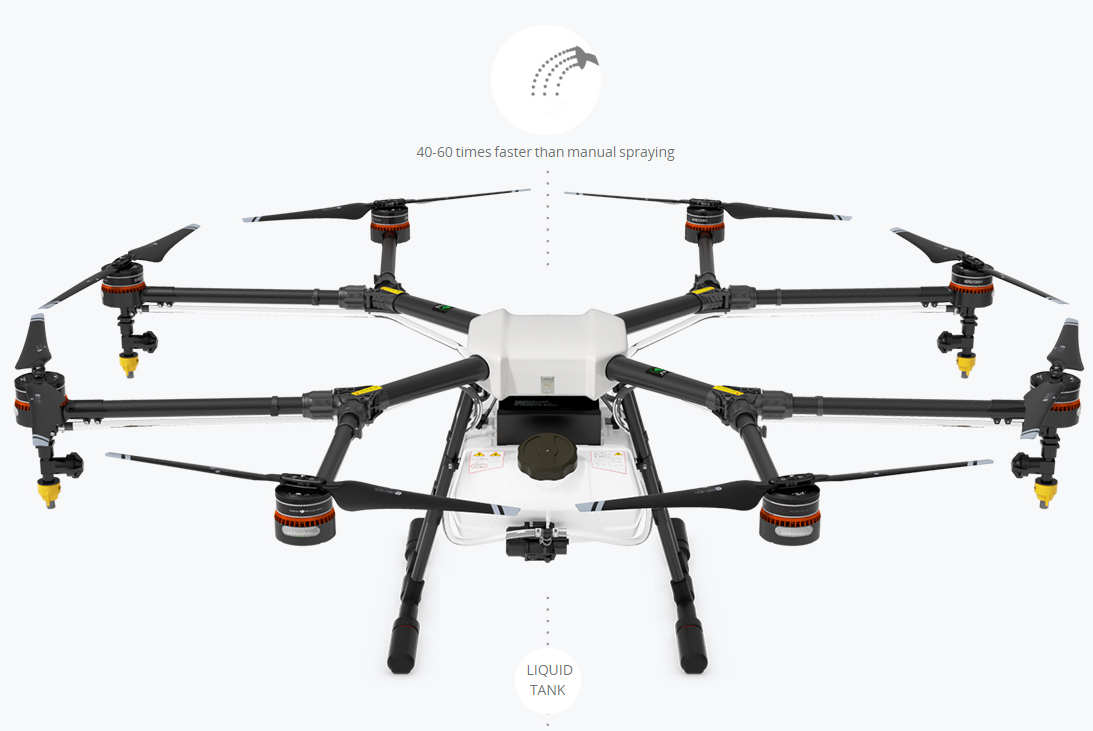

MAXIMUM EFFICIENCY

The MG-1 ‘s powerful propulsion system allows the aircraft to carry up to 10 kg liquid payloads, including pesticides and fertilizers.The combination of speed and power means that an area of 4,000-6,000 m² can be covered in just 10 minutes, or 40 to 60 times faster than manual spraying operations. The intelligent spraying system automatically adjusts its spray according to the flying speed so that an even spray is always applied. This way, the amount of pesticide or fertilizer is precisely regulated to avoid pollution and economize operations.

RELIABILITY AND LONGEVITY

Equipment used in plant protection operations is susceptible to dust and corrosion, leading to high maintenance costs and shortened lifespans.To counteract degradation, the MG-1 is designed with a sealed body and an efficient, integrated centrifugal cooling system. As it flies, the surrounding air enters the aircraft body via the front inlet, and a triple filter system keeps dust and debris from entering. The air then passes through each of the aircraft’s arms to the motors, capturing heat from all components and the entire structure before exiting and dissipating. The combination of cooling and filtering increases the expected lifespan of each motor by up to three times.

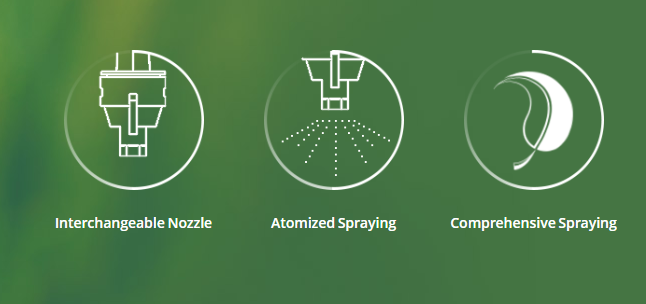

ACCURATE SPRAYING

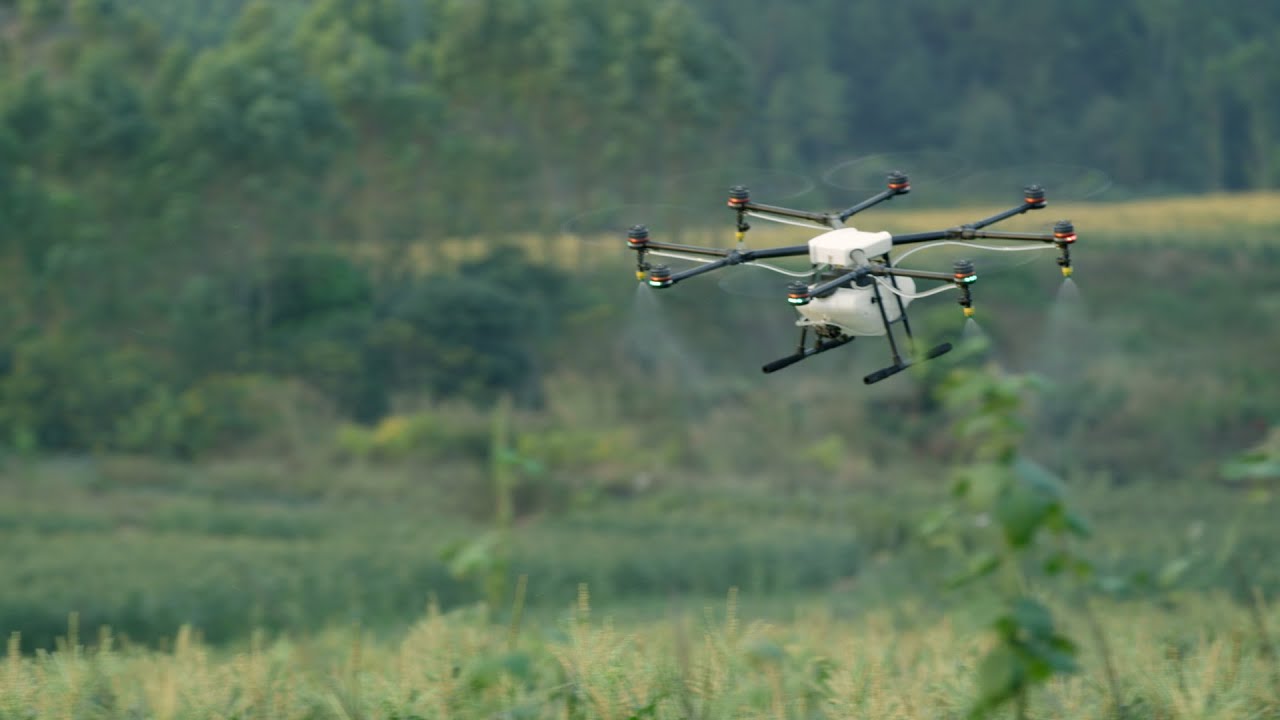

Spray nozzles can be chosen according to the properties of each liquid to optimize atomization, energy efficiency, and the amount of liquid sprayed. The included nozzles are resistant to wear and can be used for thousands of hours without degradation. In total, the MG-1 has four nozzles, each placed directly below a motor. The downward airflow generated by the propellers accelerates the spray, increasing its reach.

EASE OF USE

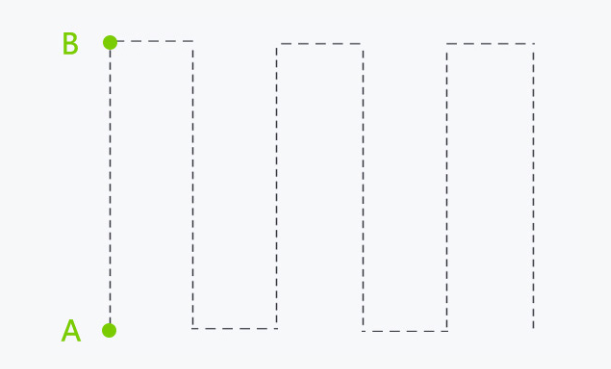

The advanced flight controller integrated with the aircraft instantly and precisely responds to pilot inputs. Choose between three flight modes: Smart mode, Manual Plus mode and Manual mode, according to terrain and the specific requirements of each mission.In Smart mode, the flight can be easily planned with the press of a few buttons, without the need for mapping knowledge or other software, making the MG-1 not only the most efficient but also the most easy to use spraying solution. In Manual Plus Mode, the aircraft performs the same turns at the press of a button as it does automatically under the Smart mode, allowing for planning to be done on the fly for fields of irregular shape. Under Manual mode, the pilot freely navigates the aircraft.

INTELLIGENT MEMORY

The MG-1 automatically records its current coordinates and remembers its past coordinates as it makes its way across the field. In case an operation is interrupted, for example due to depleted battery or spraying liquid, users can quickly land and resume flight from the last recorded point after changing the battery or refilling its tank.

FOLDABLE DESIGN

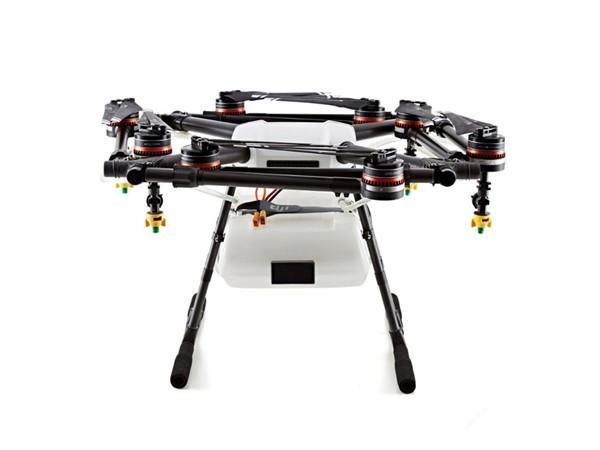

The MG-1 uses a Y-shaped folding design that allows for installation without the use of any additional tools. Its motor arms fold inward, making the aircraft compact and easy to transport in the trunk of a car. Able to withstand harsh conditions, the MG-1’s airframe is made of light, yet durable high-strength carbon fiber.

TERRAIN FOLLOW

By integrating a microwave radar together with the MG-1’s intelligent flight control system, the aircraft can scan the terrain below it in real time to keep a constant, centimeter-accurate height above crops. Spray density is maintained even as the ground rises and drops so that an optimal amount of liquid is applied at all times.

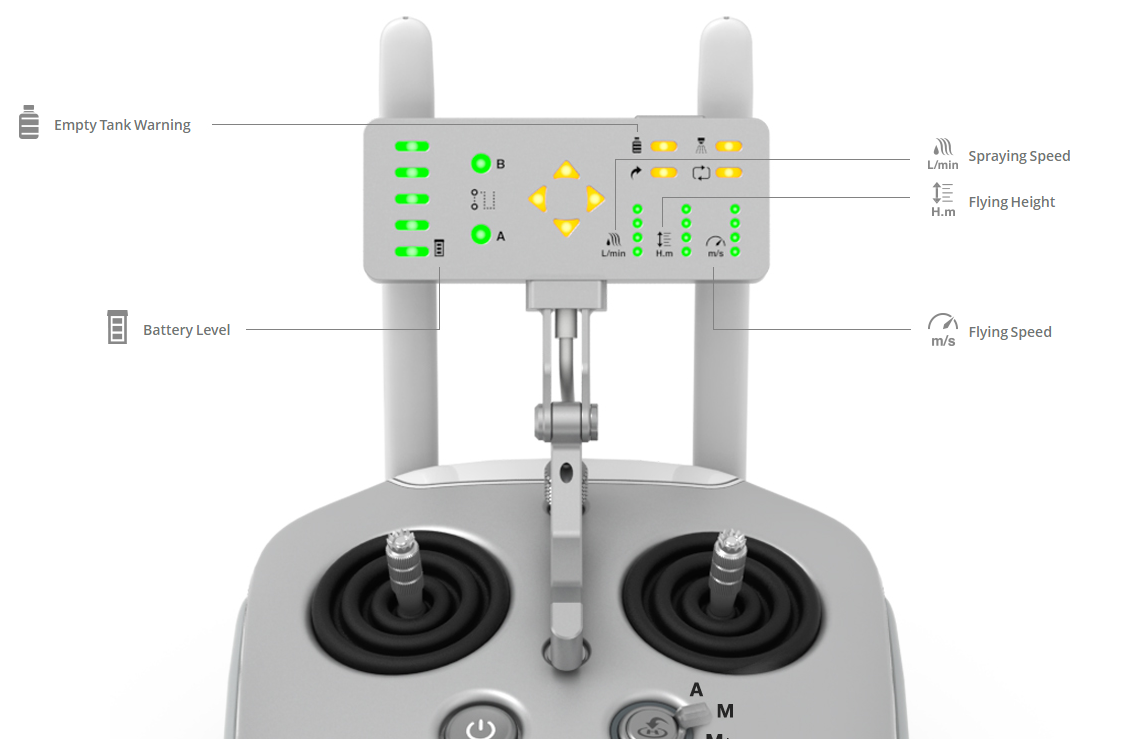

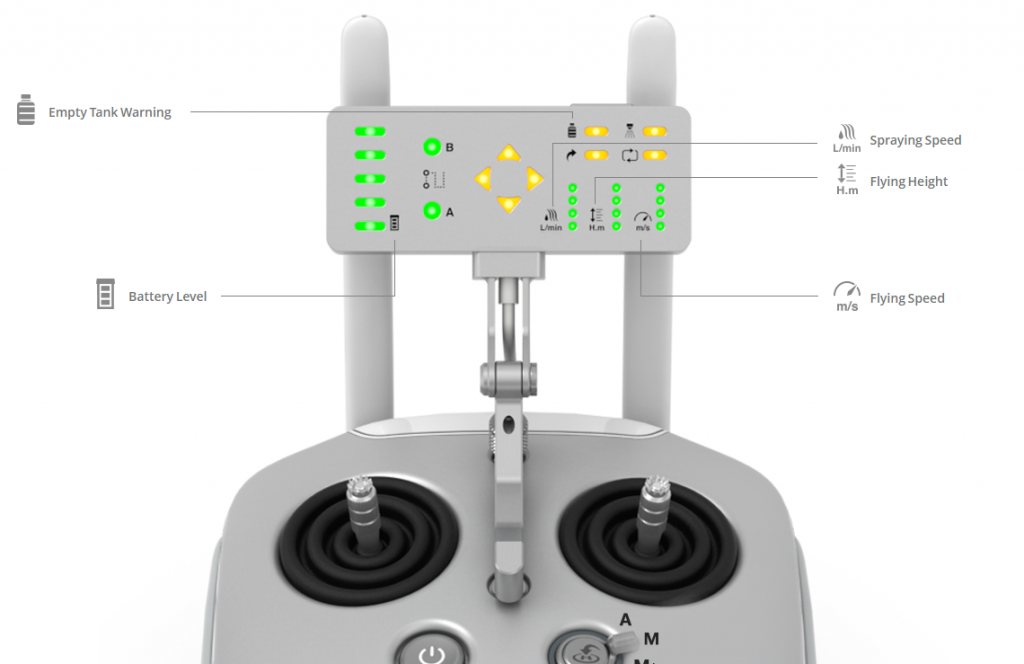

DEDICATED REMOTE CONTROLLER

The MG-1’s dedicated remote controller is equipped with a Lightbridge 2 transmission system which enables ultra-low-latency controls. Like the aircraft body, the remote is water and dust resistant. The controller’s special low-energy display panel gives real-time flight information and stays powered on for extended periods of time on a single charge. Together with highly responsive joysticks and convenient function keys, mastering the art of agricultural spraying is easier than ever before.

AIRCRAFT FRAME

Diagonal Wheelbase 1520 mm
Frame Arm Length 625 mm
Dimensions
  • 1471mm x 1471mm x 482mm (arm unfolded, without propellers)

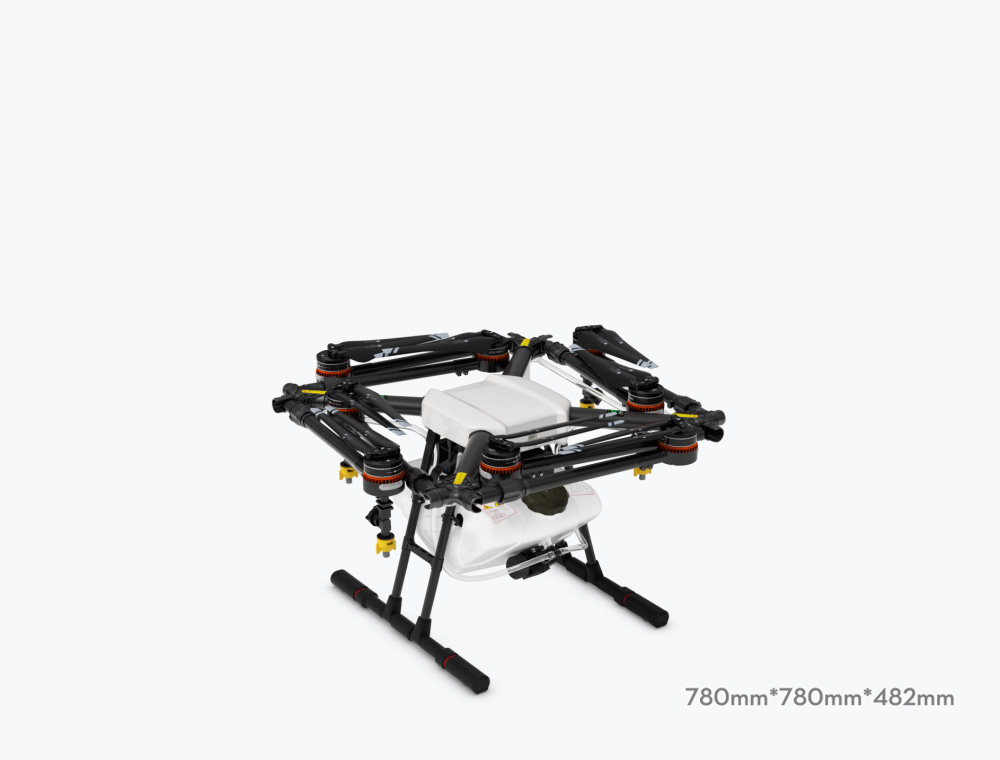

  • 780mm x 780mm x 482mm (arm folded)

PROPULSION SYSTEM

MOTOR

Stator Size 60mm x 10 mm
KV 130 rpm/V
Max Thrust 5.1 kg/rotor
Max Power 770 W
Weight (with cooling fan) 280 g

ESC

Max Allowable Current (Continuous) 25 A
Operating Voltage 12S LiPo
Signal Frequency 30 to 450 Hz
Drive PWM Frequency 12 kHz

FOLDABLE PROPELLER

Material High-performance engineered plastics
Diameter / Pitch 21×7.0 inch (533×178 mm)
Weight 58 g

SPRAY SYSTEM

LIQUID TANK

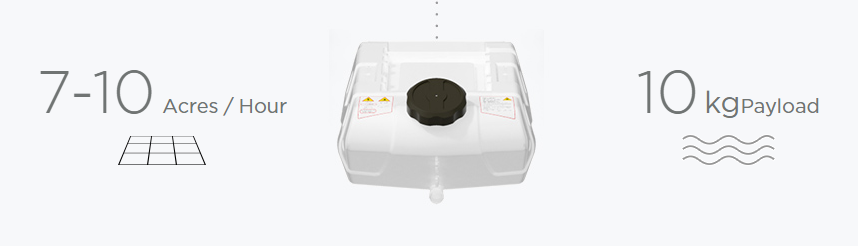

Volume 10 L
Standard Operating Payload 10 kg
Max Battery Size 151mm x 195mm x 70mm

NOZZLE

Model XR11001
Quantity 4
Max Spray Speed 0.43 L/min (per nozzle, for water)
Spray Width 4 – 6 m (4 nozzles, 1.5 – 3 m above the crops)
Droplet Size* XR11001: 130~250 μm*Droplet size may vary according to operation environment and spraying speed.

FLIGHT PARAMETERS

FEATURES

Total Weight (without batteries) 8.8 kg
Standard Takeoff Weight 22.5 kg
Max Takeoff Weight 24.5 kg (@ sea level)
Max Thrust-Weight Ratio 1.81 (with 22.5 kg takeoff weight)
Power Battery DJI Designated Battery (MG-12000)
Max Power Consumption 6400 W
Hovering Power Consumption 3250 W (with 22.5 kg takeoff weight)
Hovering Time
  • 24 min (@ with 12.5 kg takeoff weight)
  • 10 min (@ with 22.5 kg takeoff weight)
Max Operating Speed 8 m/s
Max Flying Speed 22 m/s
Recommended Operating Temperature 0 to 40℃

REMOTE CONTROLLER

FEATURES

Model GL690B(Japan Only), GL658C
Operating Frequency 2.400 – 2.483 GHz
Max Transmission Range (unobstructed, free of interference) 1km
EIRP 100 mW @ 2.4 GHz
Built-in Battery 6000 mAh, 2S LiPo
Charging DJI charger
Output Power 9 W
Operating Temperature Range -10 to 40℃
Storage Temperature Range
  • Less than 3 months: -20 to 45℃
  • More than 3 months: 22 to 28℃
Charge Temperature Range 0 to 40℃

REMOTE CONTROLLER CHARGER

FEATURES

Model A14-057N1A
Voltage 17.4 V
Rated Power 57 W
