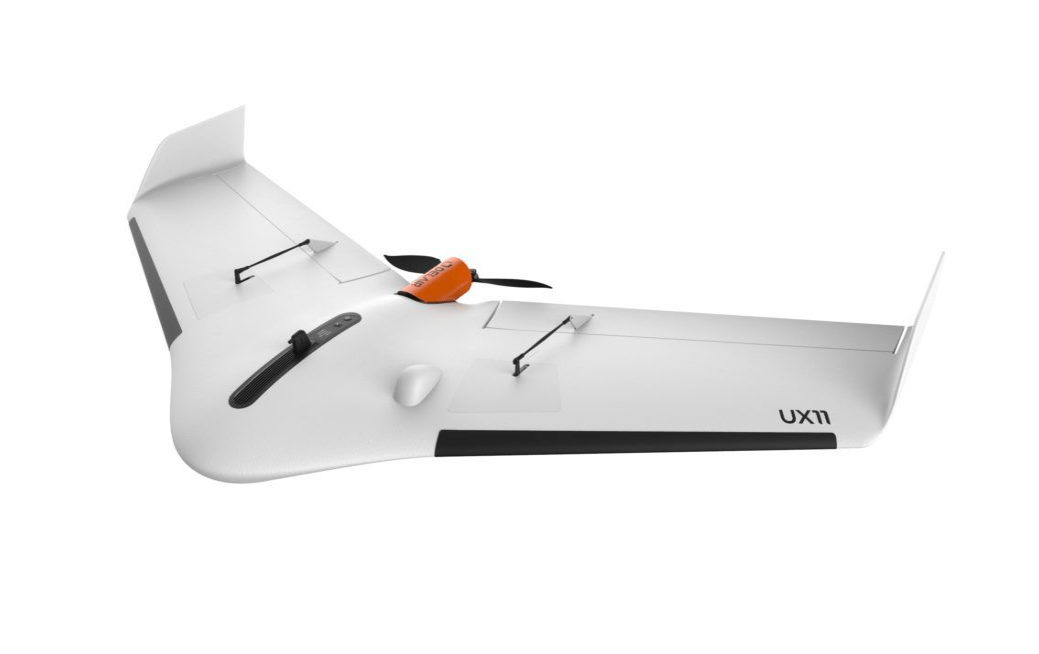

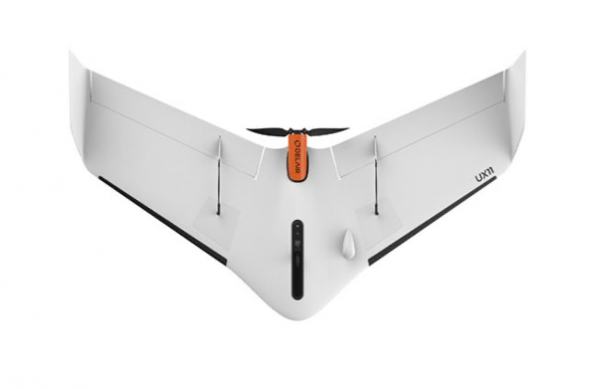

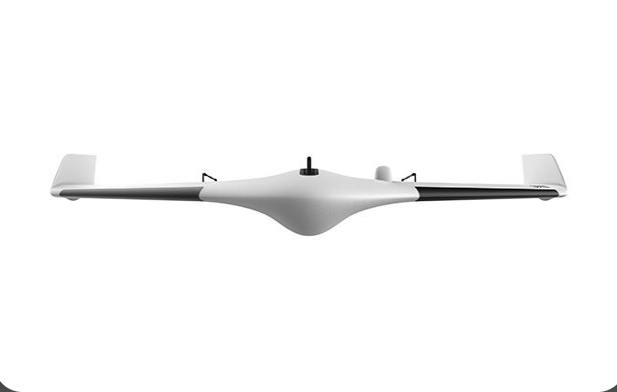

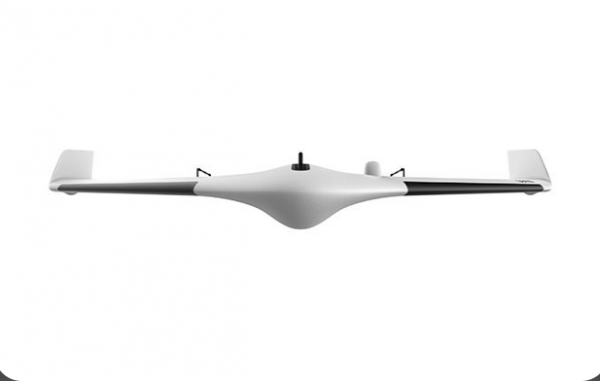

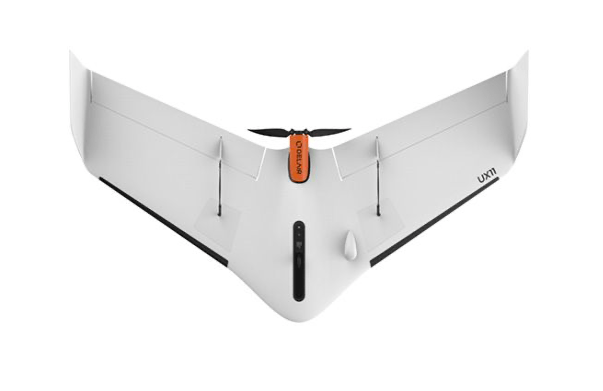

Delair UX11

The Delair UX11 is a fixed-wing professional mapping drone offering significant productivity gains, unprecedented ease of use and high quality aerial data acquisition.

The Smartest Mapping Drone

Map and digitize large areas with great accuracy

Ease of use | High productivity | Quality Data

The Delair UX11 is an ideal drone solution for highly precise and easy mapping. It delivers integrated features for before, during and after flight operations, including an embedded global shutter camera, centimeter-level precision GNSS sensor, post processed kinematic (PPK) capabilities for survey-grade results, and both 2.4 GhZ wireless and 3G/4G cellular connectivity to operate anywhere. The drone’s operational performance (allowing flights of up to 59 minutes covering over 300 acres at 400 feet) significantly lower the total cost of ownership compared to other surveying and mapping options.
All applications requiring temporal analysis or precise geolocation
Mapping & GIS
Field trials
Field inventory
Large Scale Farms and Plantations Scouting
Precision Agriculture
Forest inventory and management
Traceability for sustainibility
Environmental and Conservation
Due diligence of farms

Boost your mapping productivity with a fixed-wing drone

Long flight autonomy to map large areas
The UX11 is very productive thanks to its 59 min flight endurance combined with long flying range (53 km/33 mi). No need to sacrifice resolution for productivity when you can have both. In one single flight, you can map 300 ac / 120 ha at 400 ft / 120 m and get a 1.7 cm GSD.
Dual communication systems to fly farther
You can fly our professional mapping drone anywhere: the Delair UX11 is always connected through both a cellular connectivity (3G/4G) and a radio link with the Delair Link ground station (2.4 GHz). It’s also one of only a few BVLOS-ready UAVs. Delair Link offers up to 4 mi / 6.4 km range in FCC regions and 2 mi / 3.2 km in CE regions.

Integrated workflow from the field to the Cloud

You get access to Delair data-processing cloud-based platform to produce survey-grade maps & models. Optimize your operations by leveraging both ad hoc measurements tools and automated analytics for a wide range of applications in mining, quarrying, construction and power & utilities. With an unlimited number of users, your drone program can finally be scalable by sharing data and delivering actionable business insights.

The professional mapping drone that delivers survey-grade quality data

Best-in class and fully integrated camera

The Delair UX11 onboards a global shutter, fully-integrated industrial-grade RGB camera designed by Delair offering 1 cm GSD imagery.

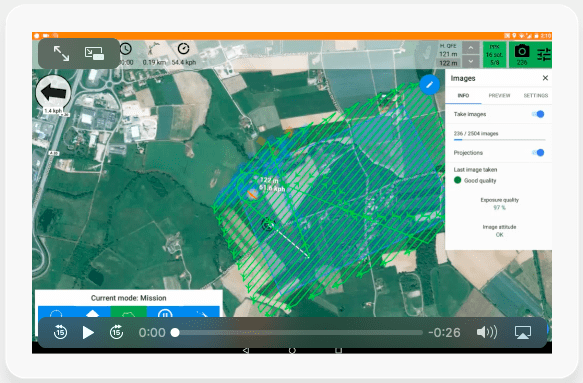

Live In-flight image quality control

You can control camera settings and quality during flight thanks to a real-time camera to Ground Control Station radio link. In-flight and in the field quality reporting mean no more guessing if your data is photogrammetry-worthy.

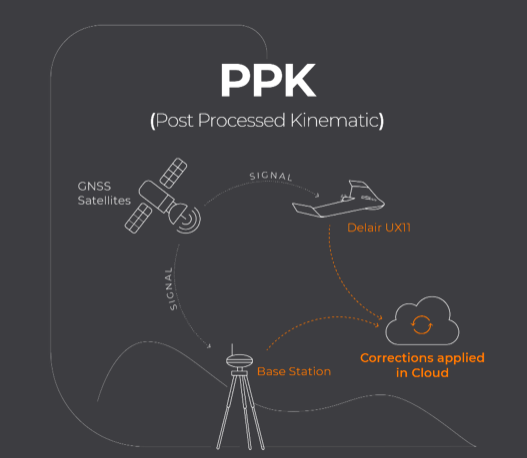

Post-Processed Kinematic (PPK) for centimeter accuracy with minimal use of GCP

Our professional mapping drone gives you the precision you need. The Delair UX11 is equipped with a dual-frequency GNSS sensor (L1, L2) and uses both the GPS and GLONASS satellite constellations. You can activate the PPK flexibly as you go: unlimited or on demand and even retroactively. Delair After Flight software (included) takes care of the PPK processing.

Datasheet & Package specifications

Aircraft specifications

Endurance1 Up to 59 min
Weight (payload included) 1.5 kg (3.3 lbs)
Wingspan 1.1 m (43 in)
Deployment time 5 min
Cruise speed 54 km/h (34 mph)
Take off / Landing Hand-launched (angle: 30 degrees) / Belly landing (angle: 30 degrees)
Flying range1 53 km (33 mi)

Communication range

3G / 4G Unlimited (within network coverage)
Optional radio link1 5 km in FCC configuration (and up to 10 km)
3 km in CE configuration (and up to 5 km)
Battery life of GCS from 6 to 10 hours*
*(depending on env. conditions)
Encryption AES128
Sensor
Image Resolution 21.4 Mpix
Sensor type CMOS sensor, global shutter, distortion free

Operating conditions

Weather 45 km/h (28 mph) wind resistance, moderate rain
Maximum tested altitude
(MSL)
Takeoff at 5,000 m (16,400 ft)
Flight at 6,000 m (19,700 ft)

Delair UX11

THE PROFESSIONAL MAPPING DRONE:
SURVEY AND MAP WITH EASE
