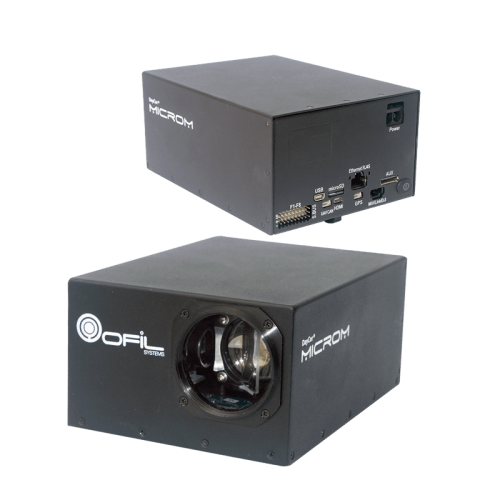

DayCor® micROM HD is an innovative corona camera designed for use on UAV. It is electromagnetically shielded, small and light with ready interfaces to communication protocols. micROM HD is the first micro HD camera with dual sensors UV & Visible, capable of detecting and imaging corona in daylight.
DayCor® micROM HD is an innovative corona camera designed for use on UAV. It is electromagnetically shielded, small and light with ready interfaces to communication protocols. micROM HD is the first micro HD camera with dual sensors UV & Visible, capable of detecting and imaging corona in daylight.
In order to maximize flexibility, duration and velocity weight must be kept at minimum. micROM HD is a lightweight camera with energy-efficient management allowing longer, higher and faster flights while scanning power lines. micROM HD silhouette simplifies the outline of gimbal design requirements.
micROM HD streams & records HD videos providing clear views of the inspected scenes, allowing reading plate names & catalogue numbers of equipment for maintenance referencing. Videos can include corona events count, date & time, GPS, temperature and humidity (optional). High resolution guarantees more observed detailed data.
micROM HD provides in real time the representation of corona as it is emitted, displaying both the discharges and the faults. Imagery is clear and sharp even while on the move. Output is used to determine faults’ location and level of severity.
“As of Aug 2019, SDG&E is the first company in the United States to fly the corona camera on the UAS with the support of a local vendor integrating the camera on a UAS. In recent work, SDG&E completed 5 successful test flights on August 19- 20, 2019 and again on September 12, 2019 and assessed twelve 230kV tower structures, which took approximately one and half hours to complete. The normal way for this inspection is to use a handheld corona camera and that would have taken four hours. More testing is scheduled for 2020, and efforts will be made to integrate the procedures into the regular workforce operations.”
Compliance Filing of San Diego Gas & Electric Company’s (U 902 E) 2019 Electric Program Investment Charge Annual Report
| Sunlight Rejection | Absolute – at all sunlight and all weather conditions, target can be inspected with the sun in the field of view |
| Minimum Discharge Detection | 1pC @ 8 m |
| Minimum UV Sensitivity | 7.8 x 10-18 watt/cm² |
| Minimum RIV Detection | 30dBµV (RIV) @[email protected] |
| Field of View H x V | H: 20º x V:11.25º |
| Focus | Manual and auto focus, UV &Visible channels synchronized |
| UV Zoom | 3x digital continuous zoom; UV & Visible channels synchronized |
| UV Frames Integration | On, selectable from a range | Off |
| UV Display Colors | Selectable from a range of colors |
| Spectral Range | 240-280nm |
| UV Blobs Count | UV events per minute, 3 FOV sizes |
| UV/Visible Overlay Accuracy | Deviation < 1 miliradian |
| Minimum Visible Light Sensitivity | 0.03Lux |
| Communication Protocol | micROM-Protocol, GPS-NMEA, MAVlink, S. BUS |
| Working Modes | Real time |
| Continuous Operation | No overheating, limited to power supply |
| Control Inputs | Remote control commands |
| Mounting point | Precision mounting threads |
| Storage and Operation Temperatures | -20ºC up to +50ºC | -4ºF up to +122ºF |
| IP Rating | IP 42 |
| Field of View | H: 20º x V:11.25º, UV & visible channels synchronized |
| Visible Zoom | 3x optical |
| Focus Range | 5m to infinity, automatic & manual |
| Weight | Camera core: 675 gr [1.48lb] | Block Camera: 875gr [1.92lb] |
| Dimensions | L156 x W112 x H71mm | L6.14” x W4.4”x H2.79” |
| Sealing, Vibration & Shock | IP 42 |
| Video Interface | HDMI, RTSP |
| Interfaces | RS232, CAN BUS, MFIO-PWM, UART |
| Connectors | microHDMI, RJ45, Power, AUX, MFIO, miniUSB, JST |
| UV & Visible Output Combination Modes | Combine (UV & Visible), UV only, visible only |
| Power Source & Consumption | 7-28V DC, 12 Watts |
Video Out StandardHD 720p 60fpsVideo FormatMOVImage FormatJPGStorageFAT-32, exFAT
