Compound UV34

Four-in-One Inspections (UV + IR + EO + ToF) Higher Sensitivity

Introduction

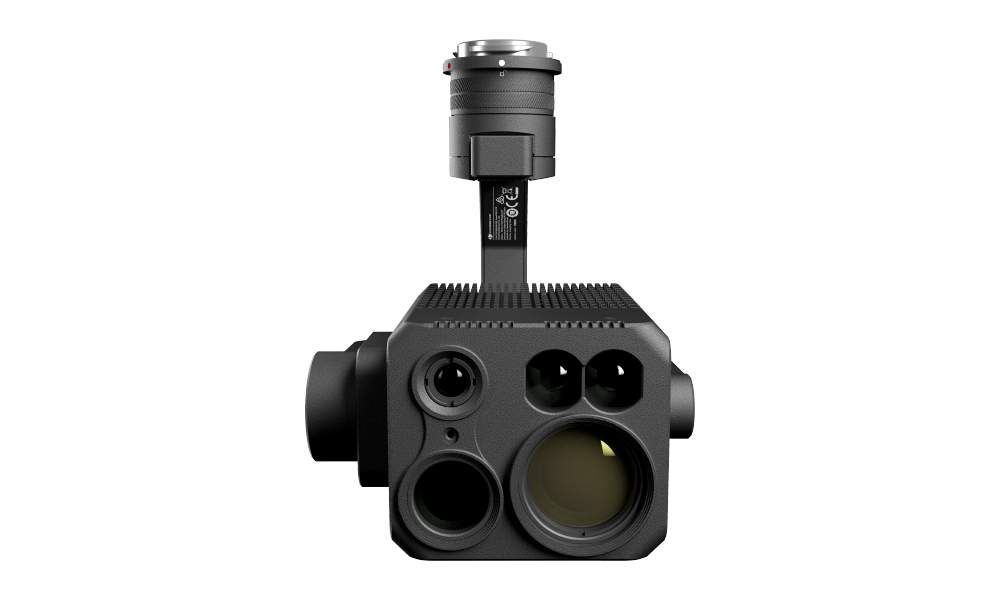

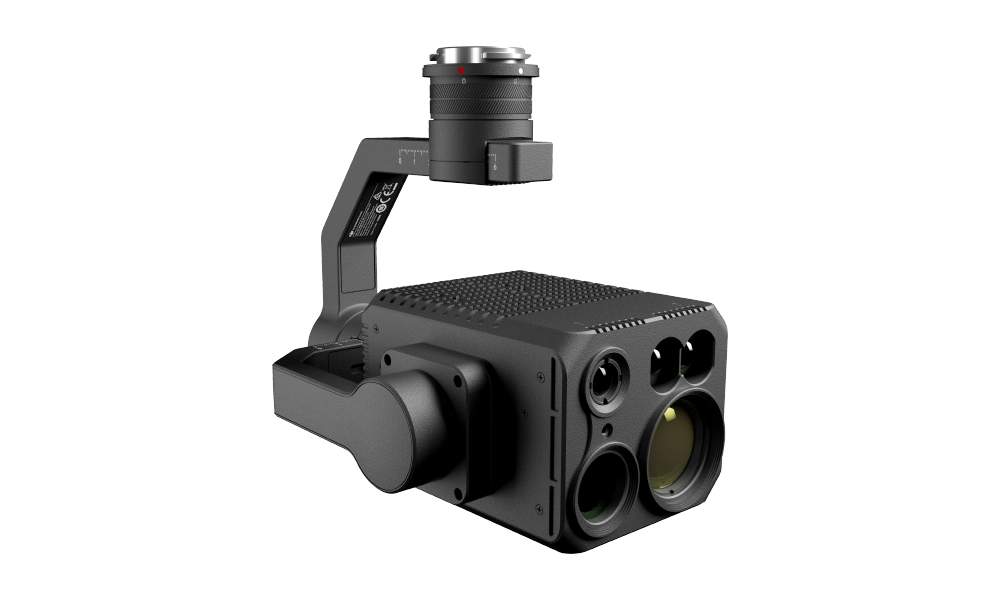

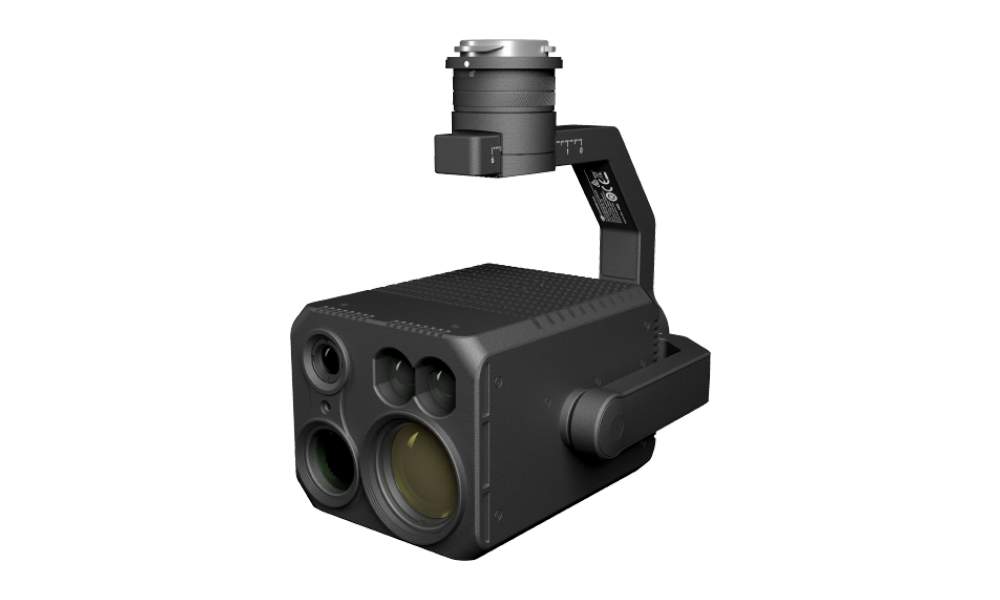

The four-in-one payload (UV+UAV system) carries a UV sensor, an IR thermal imaging camera, a Zoom EO Camera, and a ToF sensor. Its UV sensor can detect ultraviolet sources, such as partial discharges or wildfires and has a consistent photon count value that guarantees that the readings in every inspection will always be consistent and unaffected, no matter the UV gain or zoom (within the operation distance, usually 15-20m ). It is also worth pointing that the camera is “blind” to the UV radiation coming from the sun, allowing only the relevant UV radiation to pass though the sensor.

No problem is too big!

Thanks to the higher resolution of its IR camera, the IR35 allow broader and more complete inspections, covering a greater area than any traditional IR payloads. For example: the insulators on a transmission line of ±800kV are approximately 11m long. Using the traditional inspection, an operator might need to take several pictures to cover the whole line. Nevertheless, if the operator employs the ZQ Photoelectric solution, He could perform “one-shot” inspections, covering the entire transmission line with a single picture.

Advantages

Current infrared inspection systems employ resolutions below 640×512. However, The QZ IR camera resolution is 1280×1024, making it 400% better than any existing system. The user can perform inspections at greater distances and cover larger areas than with any other solution currently in the market. It also has an 8MP zoom EO camera, therefore providing the user with all the necessary tools to perform an efficient and quick inspection.

Overall information
Weight 900g Protection Level IP45
Another instrumentation Thermometer, humidity sensor Maximum memory capacity 128 GB microSD
UV Corona camera
Resolution 720×576 FOV 17.5°× 14.4°
Wavelength 240-280nm Sensitivity 3×10-18 W/cm²
Aperture 34
IR camera
(NETD) ≤50mK @ f/1.0 25℃ Temperature measure scope -20℃ – 150℃
Resolution 640×512 FOV 47.1°× 38.5°
Wavelength 8μm-14μm Spatial resolution 1.364mrad
Focal length 13mm Pixel spacing 12μm
ToF Rangefinder
Distance 45m Wavelength 850nm
EO camera
Resolution 3264×2448 Effective pixels 8Mpx
FOV 9°-52° Optical zoom 10x
Sensor size 1/3 inches Pixel size 1.5μm
Gimbal
Model DJI X-Port Stable system 3 Axis(bend and lift,transverse,translation)
Angle movement ±0.01° Movement scope bend and lift:-120°- +30° translation:±320°
