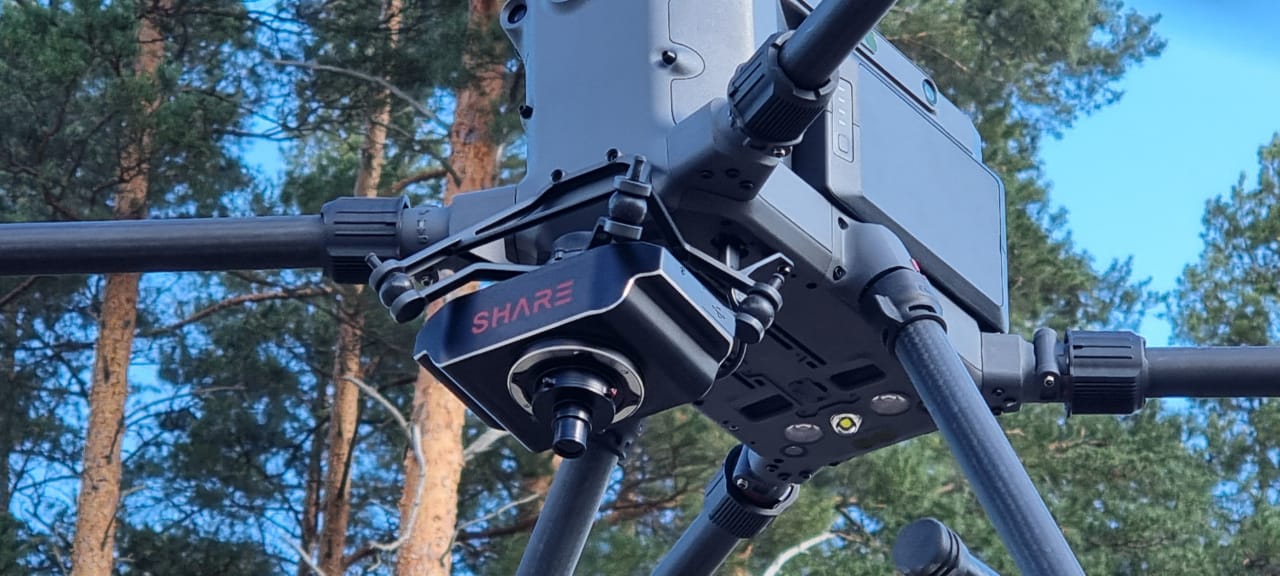

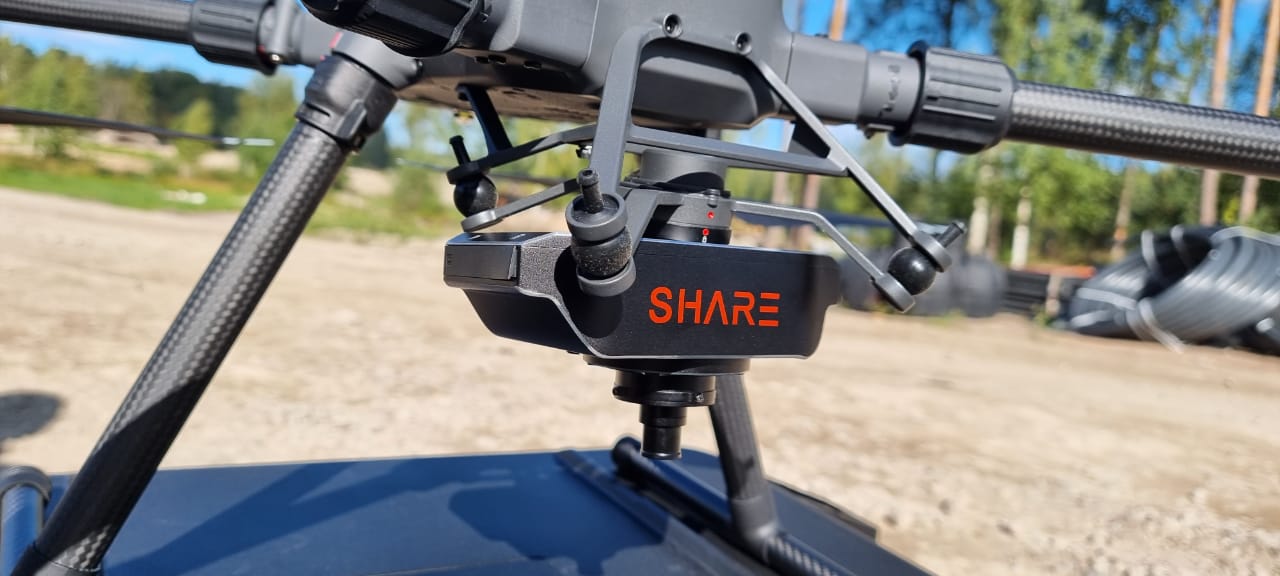

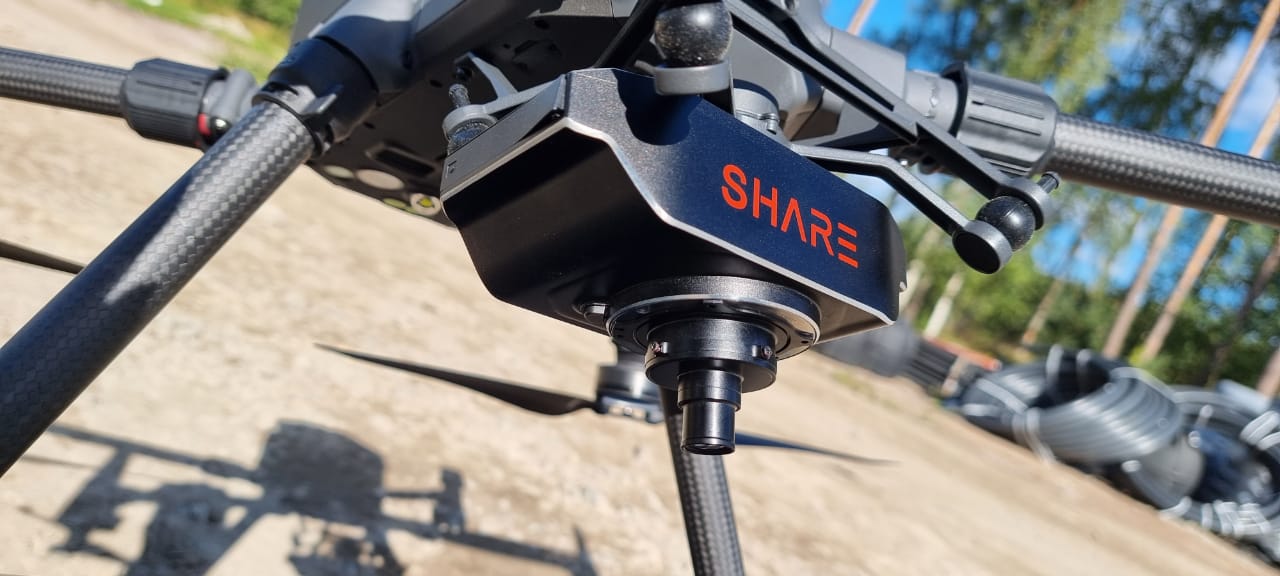

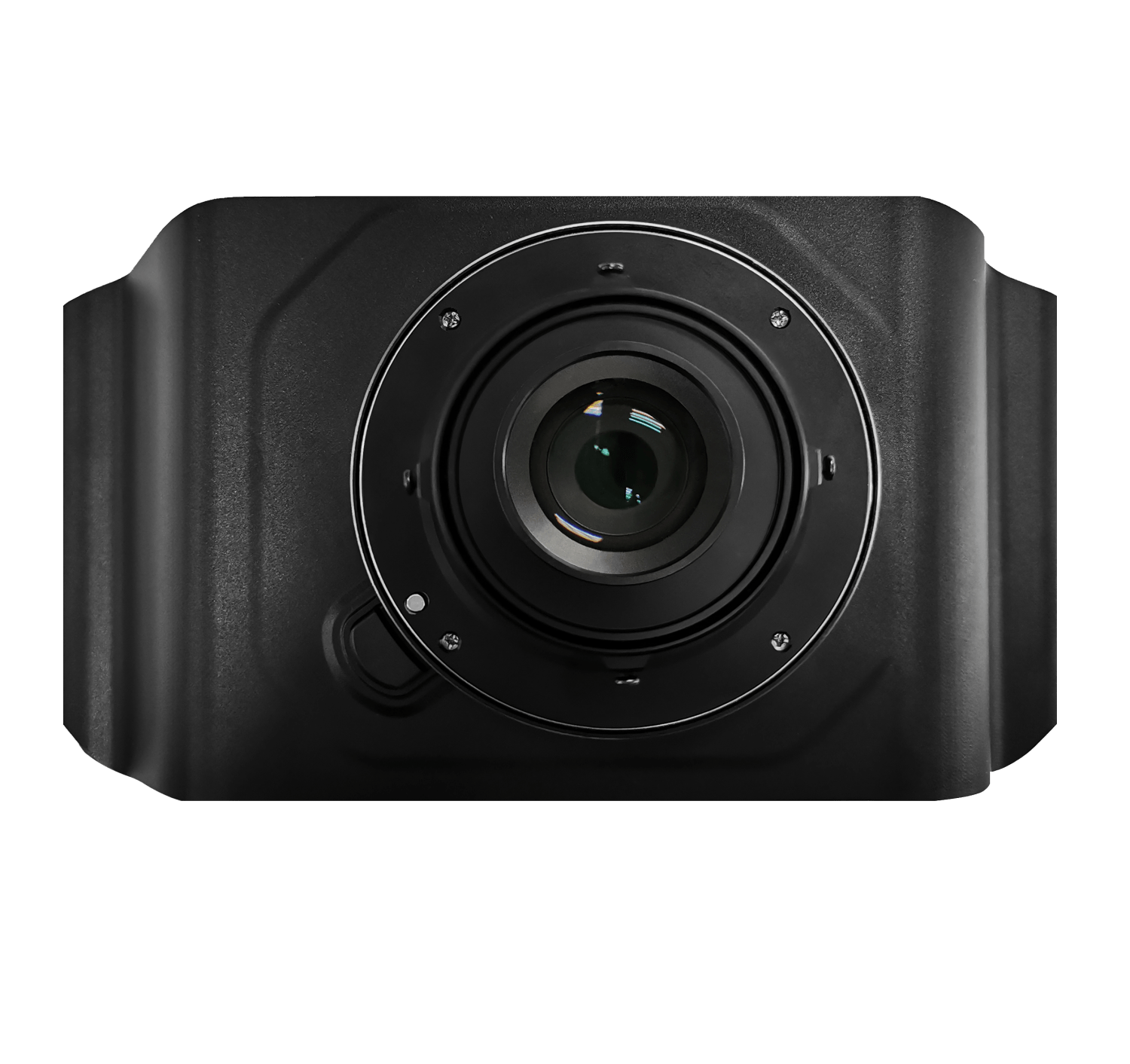

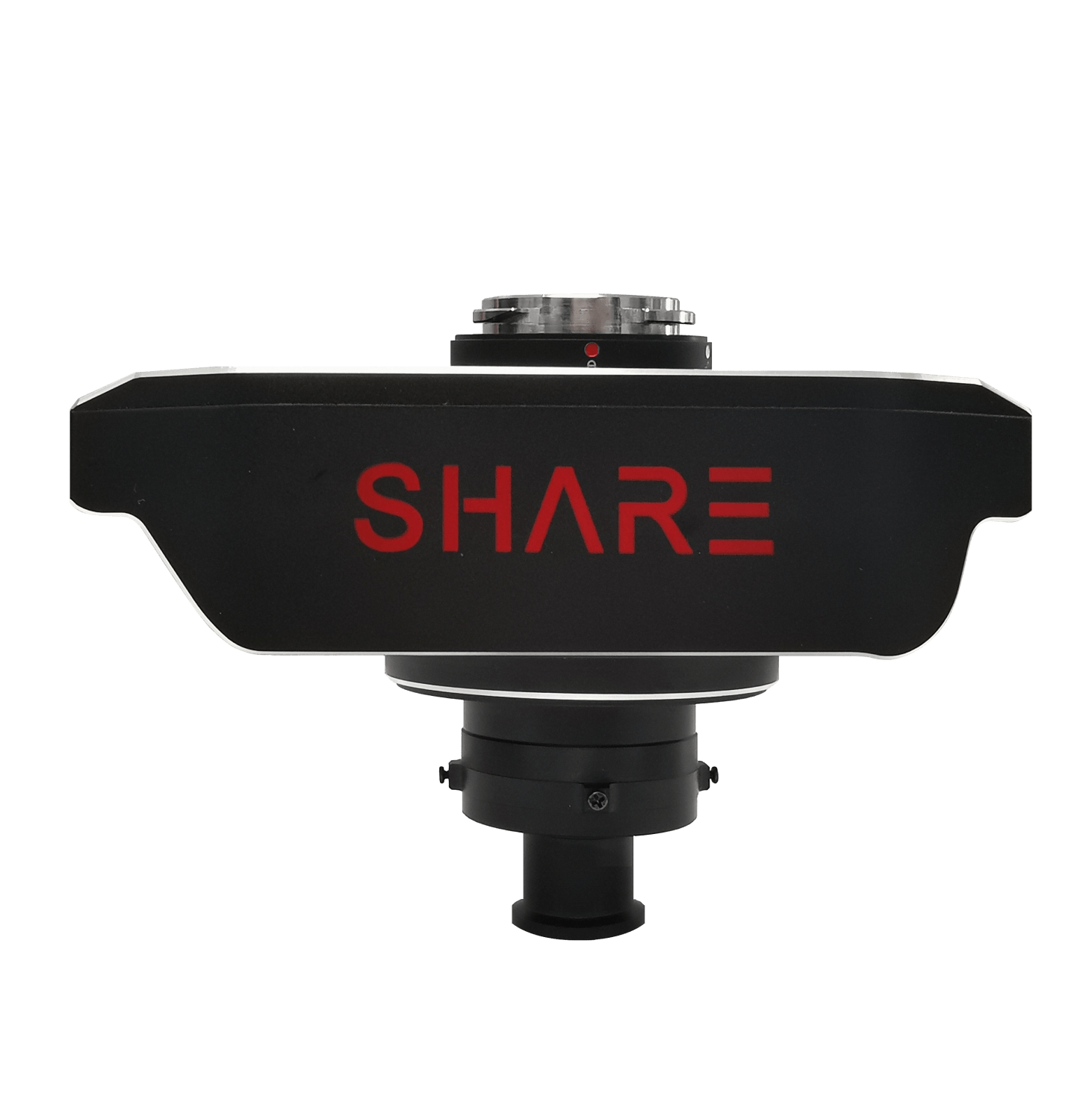

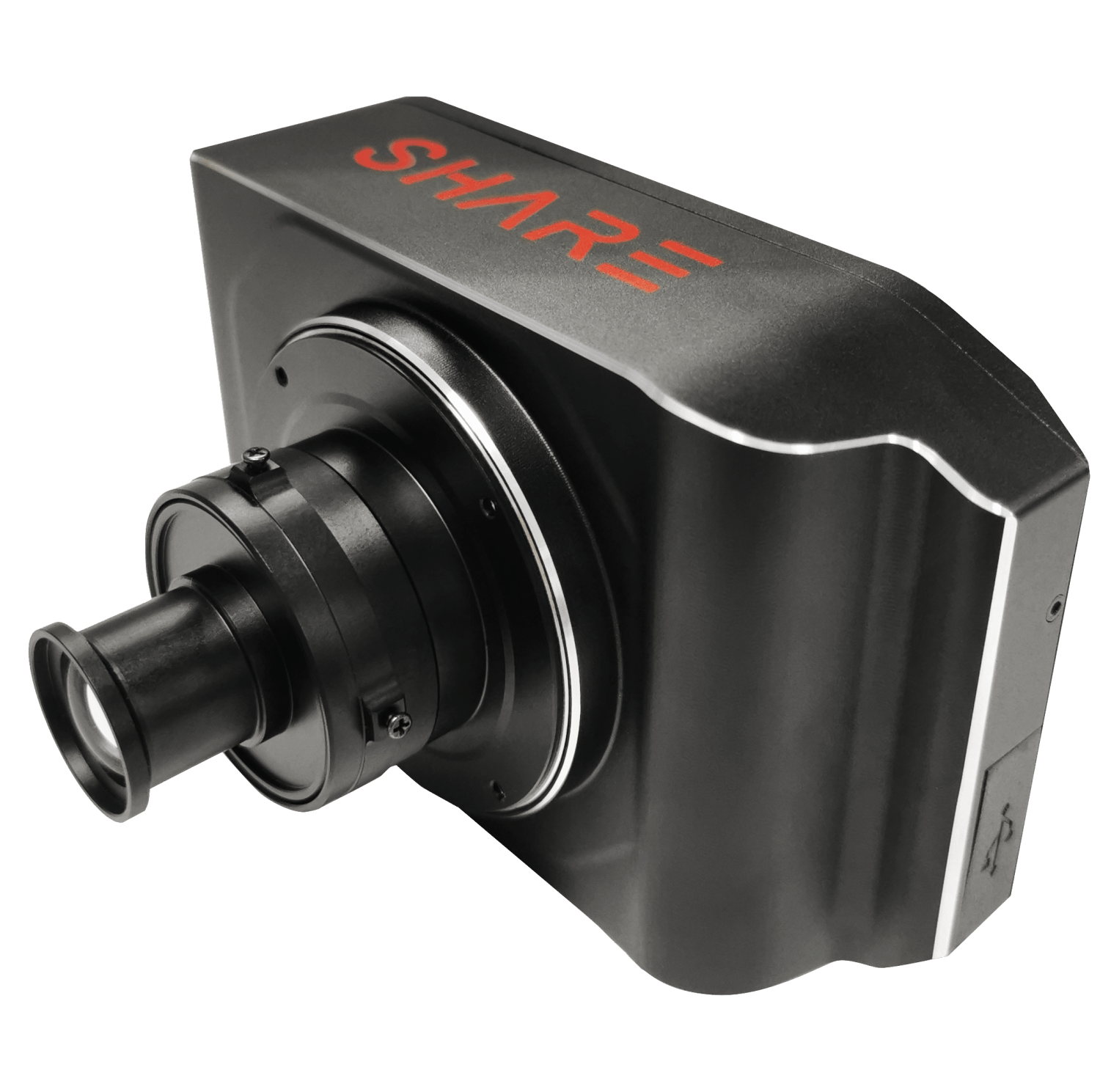

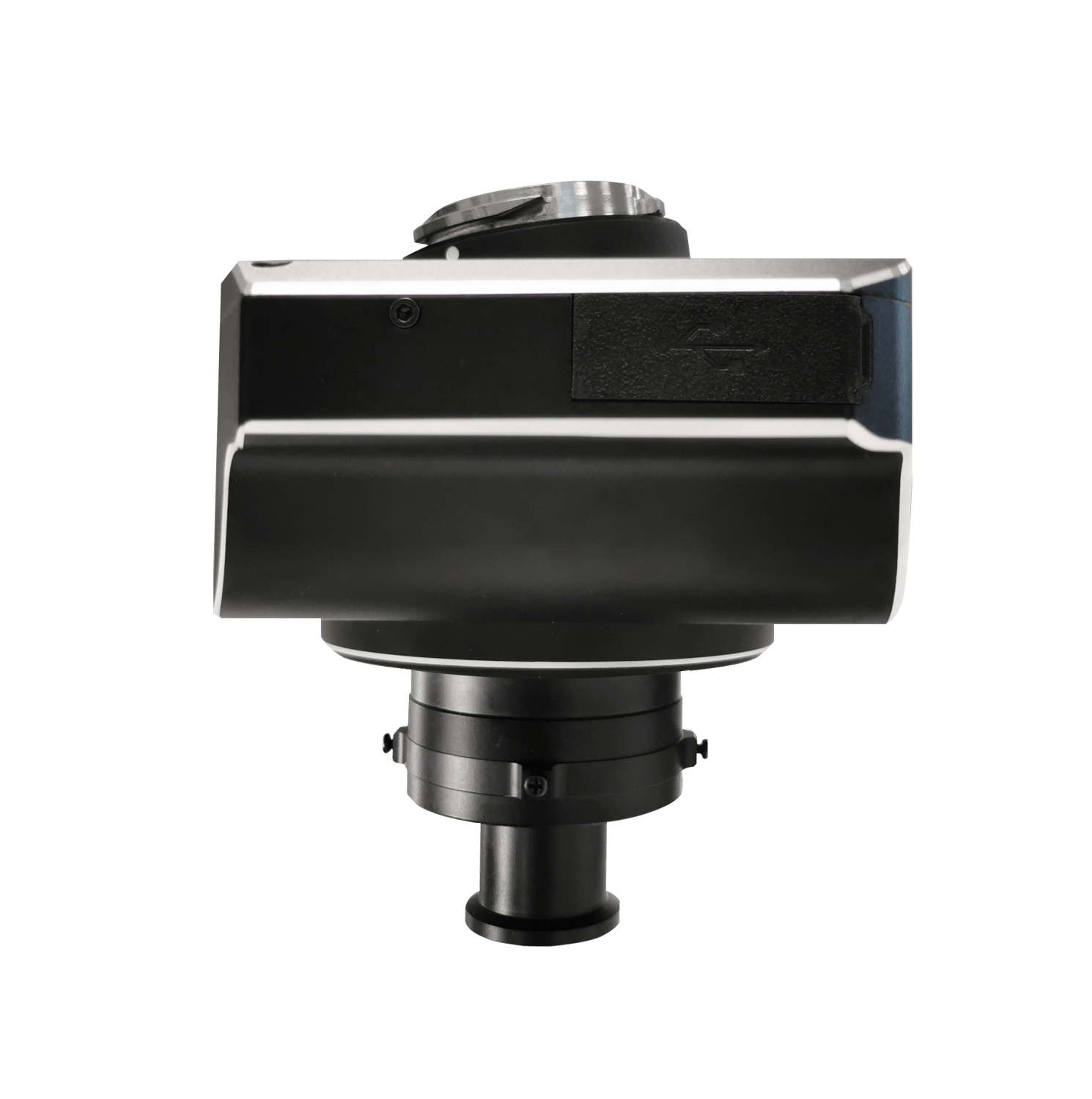

Share 6100 – Frame Mapping Camera

  • Lightweight, easy mounting

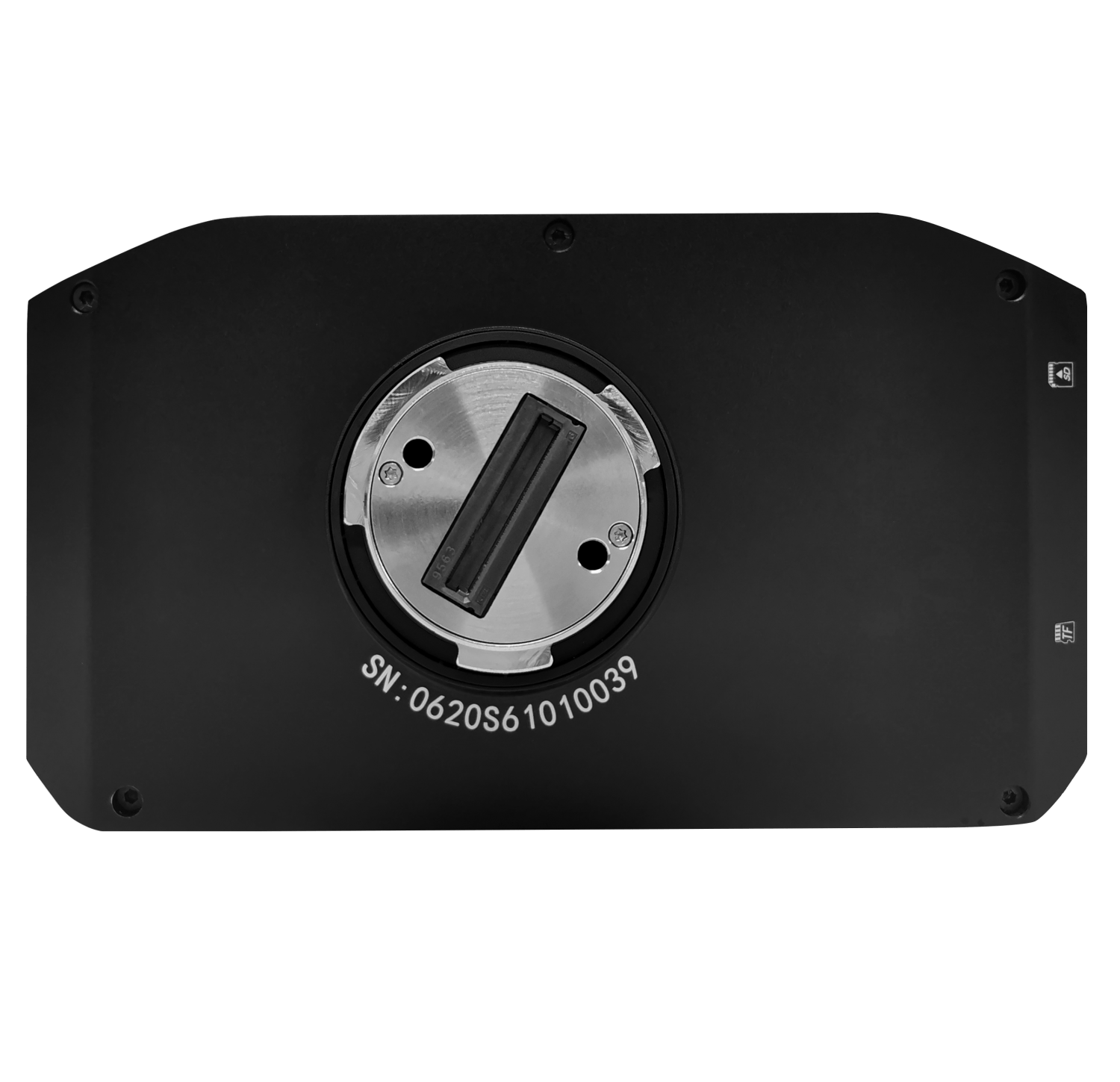

  • SkyPort Connector, seamless docking with DJI drones
  • Real-time image transmission
  • Minimum exposure interval ≥0.8s

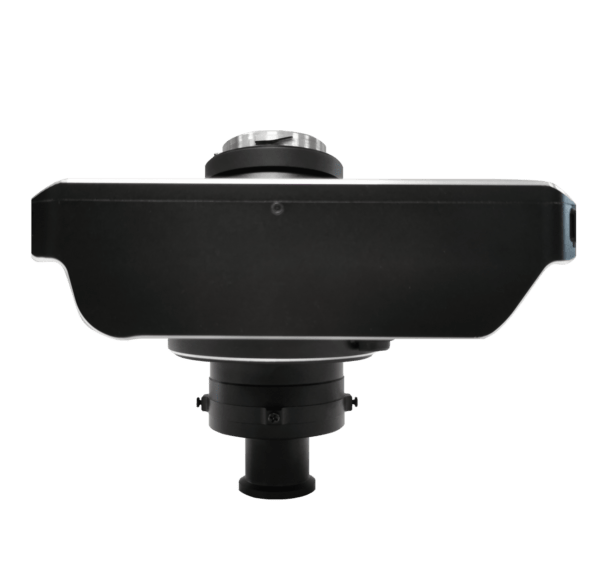

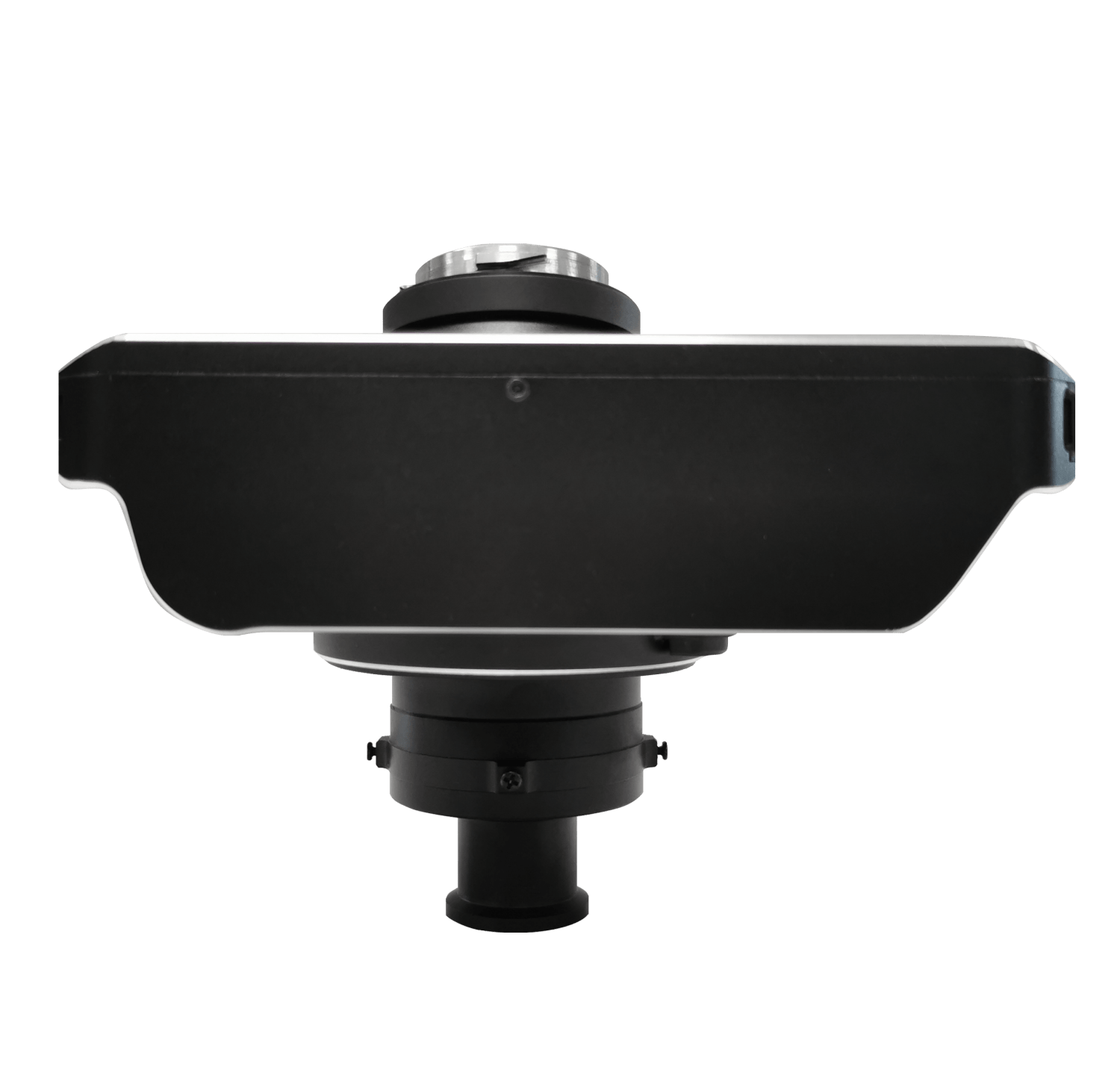

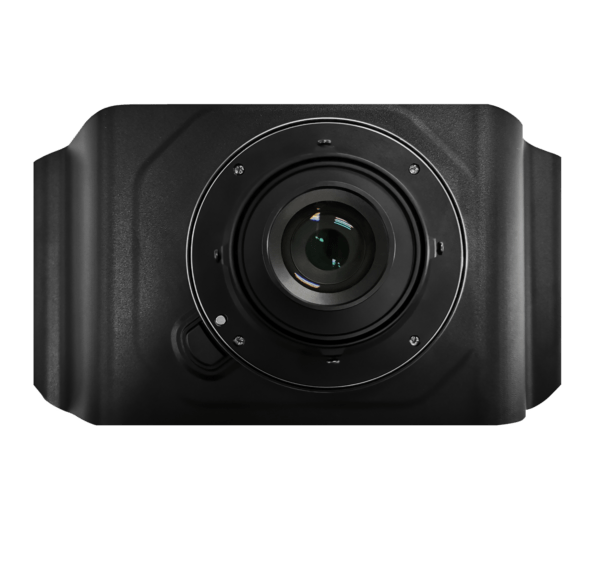

SHARE 6100 – 61 Million Pixels Full Frame Mapping Camera


Lightweight | SkyPort Connector Easy Mounting | Real-time Image Transmission | 0.8s Interval Exposure

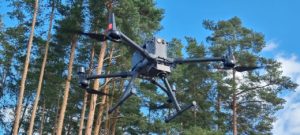

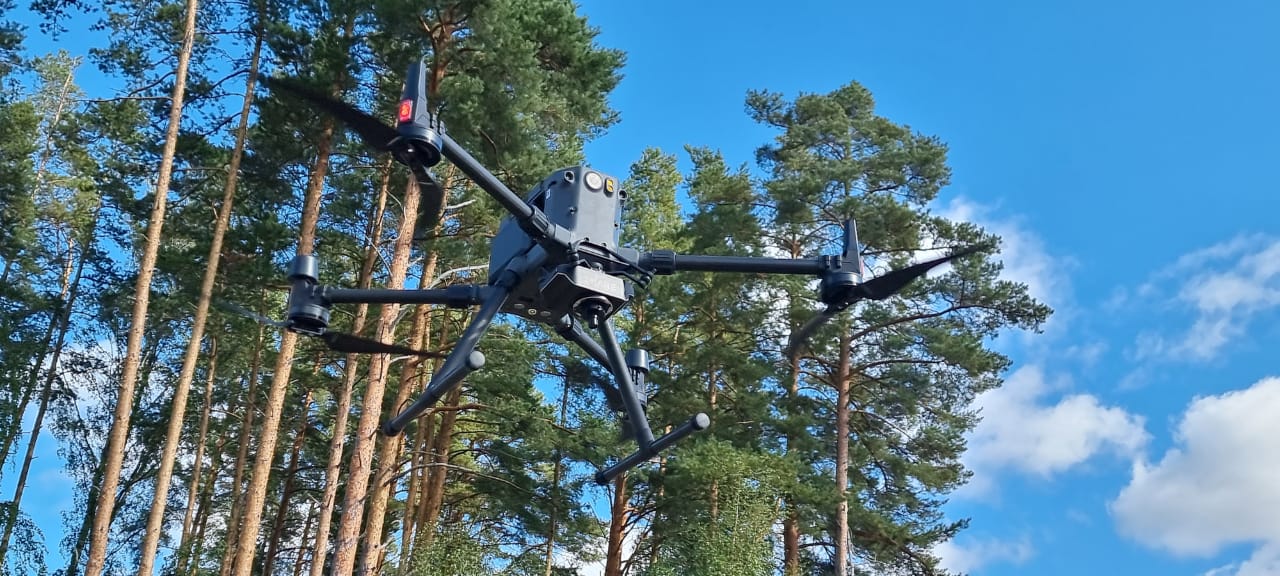

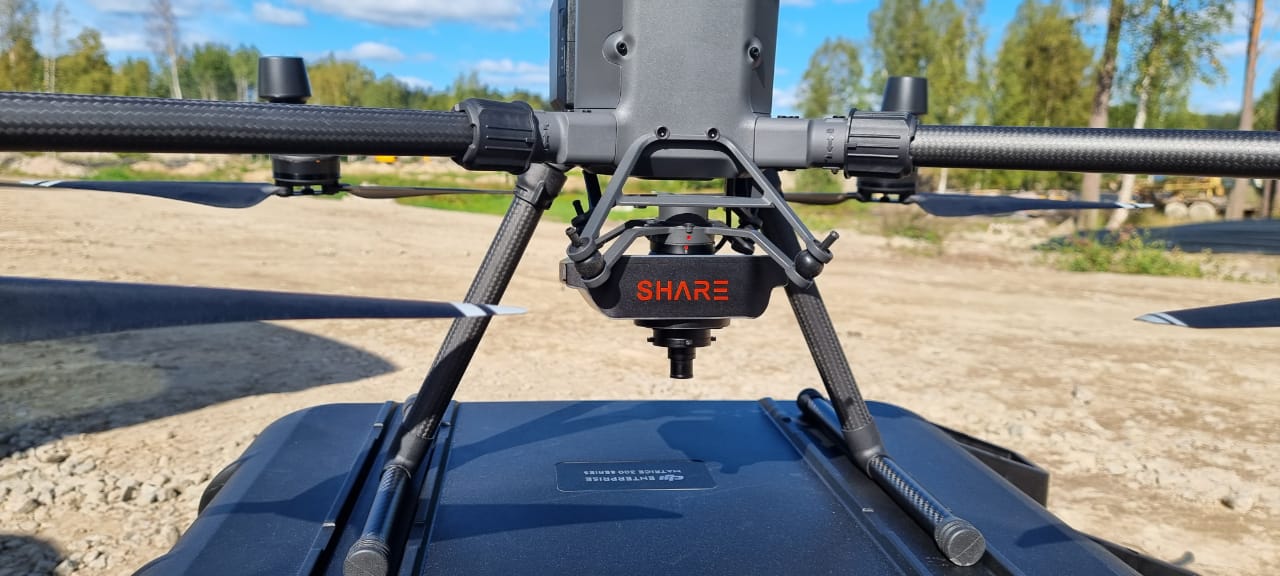

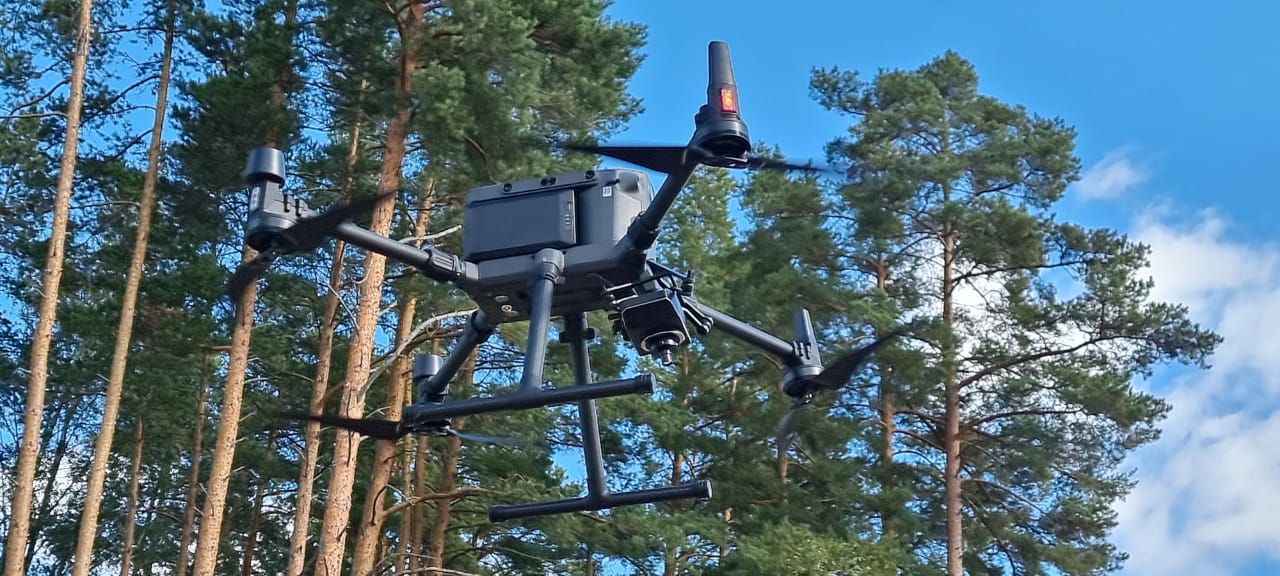

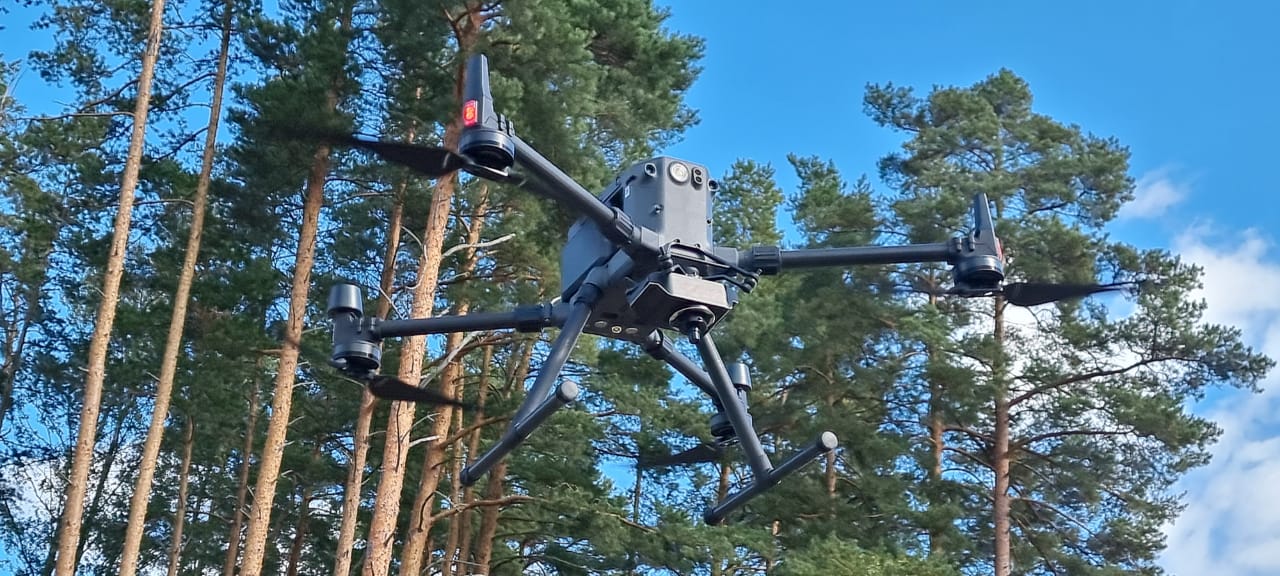

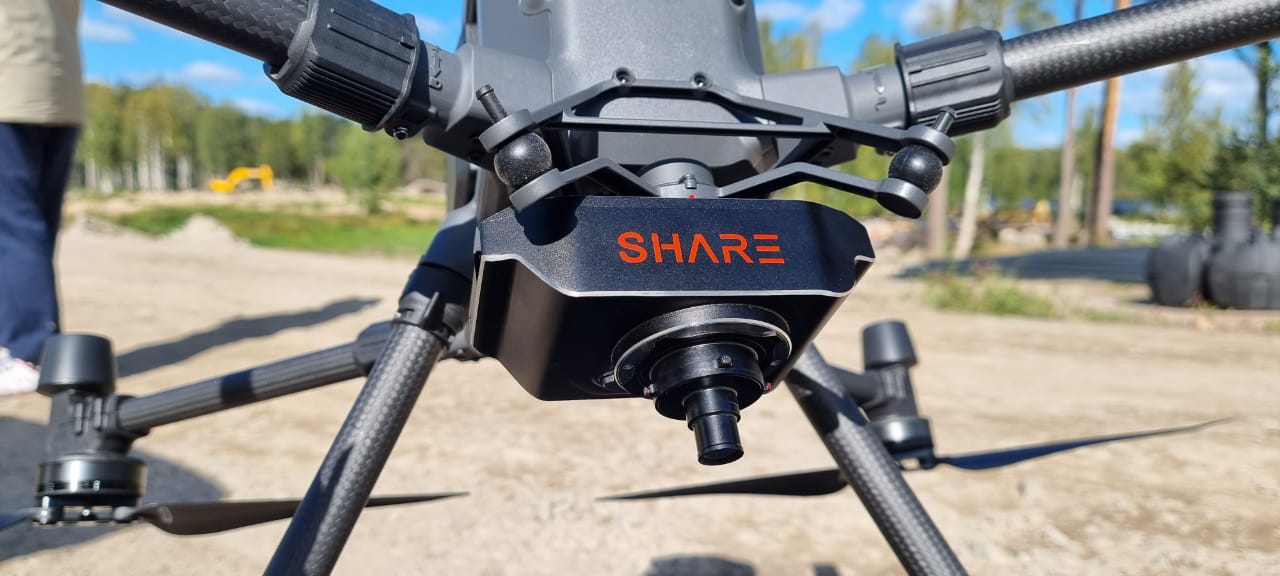

We at Aeromotus have launched Share 6100 (61MP) and Share 6100 Pro X (61MP) Full Frame Surveying Camera with DJI Matrice300 RTK Drone in Dubai, United Arab Emirates and Middle East Region for Customers aiming at achieving high precision results from Drone Surveying.

Watch the Video to get a insight into the workflow with Share6100 and Share 6100 XPort Camera with DJI Matrice 300RTK Drone, followed by 3D Reconstruction using DJI’s Terra software, generating OrthoMaps, Digital Surface Models, Point Cloud, 3D Models.

Data Process Software

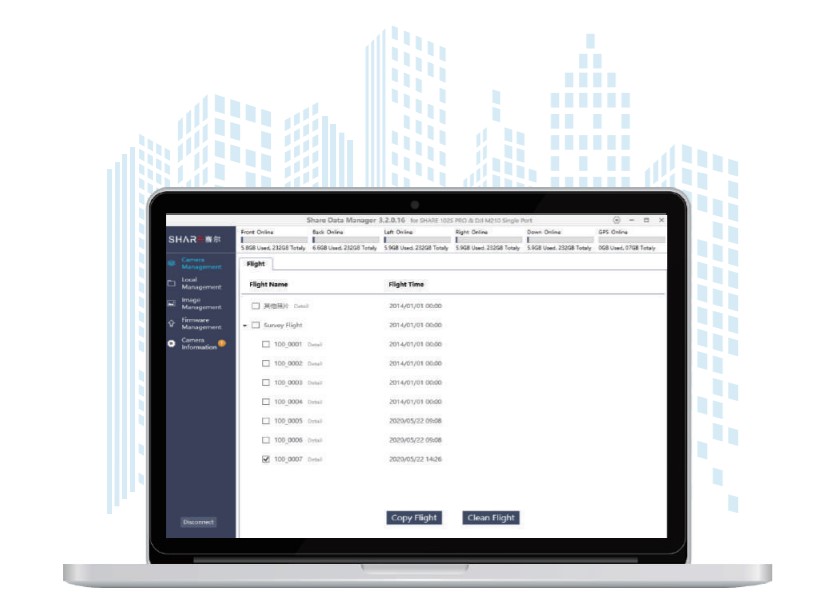

Share Data Manager
Preprocess data & Write POS information

Share Data Manager is an intelligent management software designed for high-efficiency, easy-operation data collation and data preprocess. The purpose is to help user to improve the workflow efficiency and simply the procedure.

If you never used this kind of data preprocessing software, don’t worry. Share Data Manager is quite
simple to operate. One key to copy all data you need, easy and efficient. No longer need to spend a lot of time to process POS information.

Applications

  • Cadastral Mapping
  • Smart City
  • Mining
  • Powerline Inspection
  • Earthwork Calculation
  • Building
  • River Management
  • Historic Site
  • Road and Bridge
  • Forest Survey
  • Plot Plan
  • Pipeline and Railway

Specification

Focal Length 40 mm x 1 or 56 mm x 1 (Optional)
Effective Pixels 61MP
Sensor Size Full Frame(35.7 mm x 23.8mm)
Exposure Interval ≥0.8s
Storage 256 GB
Power Supply SkyPort
Power On / Off Auto On / Off

General

Operating Temperature -10℃~40℃
Humidity 95%
Size 136 x 76 x 61 mm
Weight 350 g
Matrice 350 RTK

An upgraded flagship drone platform, the Matrice 350 RTK sets a new benchmark for the industry. This next-generation drone platform features an all-new video transmission system and control experience, a more efficient battery system, and more comprehensive safety features, as well as robust payload and expansion capabilities. It is fully powered to inject innovative strength into any aerial operation.

Buy
GPR system: Radar Systems Zond Aero LF (low frequency)

Extra-lightweight GPR system, suitable for medium-sized drones like DJI M300 RTK.

Comes with 3x sets of dipoles for the 300, 150, and 100 MHz.

Utilizes Real Time Sampling (RTS) with high hardware stacking, delivering high-resolution low-noise data.

Buy
Laser Falcon methane detector

Laser Falcon is sensitive only to methane, so no false readings of other gases are possible. It is a class 3R eye-safe laser.

The concept is based on Infrared Absorption Spectroscopy. The laser emits light (spectral range of 1,65 μm), which reflects back and is captured by the sensor. The outgoing and incoming signals are compared with the built-in reference cell. If methane is present along the laser path, the laser light is partially absorbed. An algorithm calculates the gas concentration in ppm×m (parts per million multiplied by meter). The value is instantly transferred to the remote control (RC) of the drone pilot and to UgCS software.
