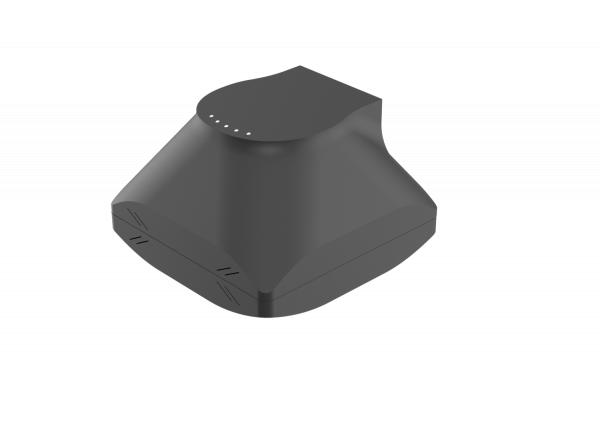

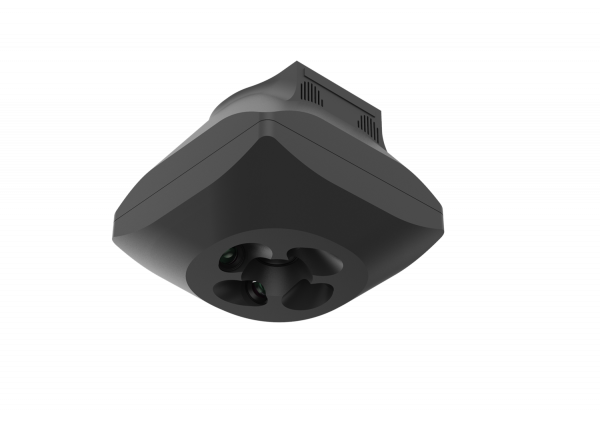

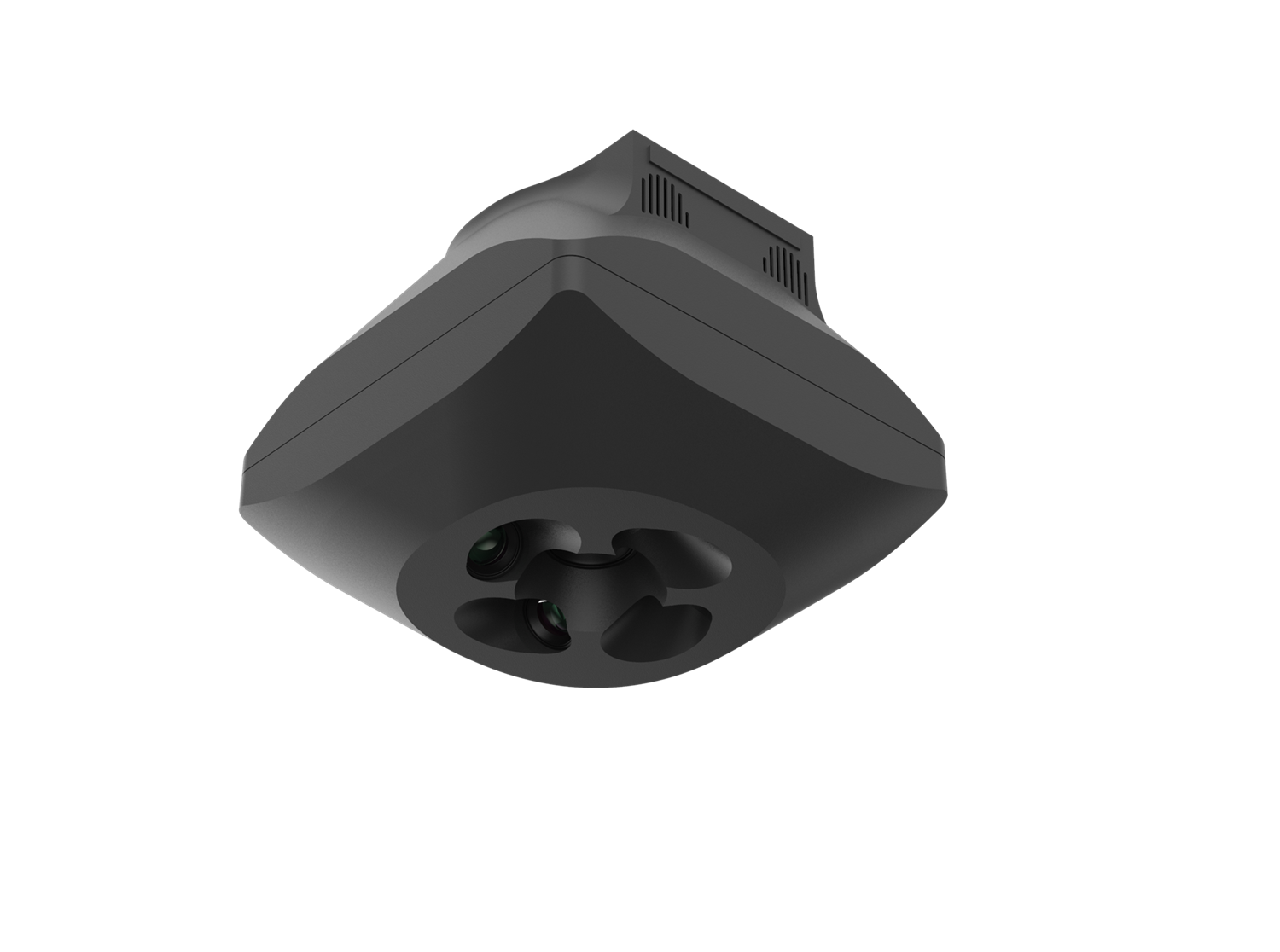

Evo320 Lightweight Five-lens Aerial Oblique Camera

Camera weight: 350g
▲ Number of cameras: 5
▲Maximum dimensions: 105×105×80mm (L×W×H)
▲ Single camera pixels: 24.3 million
▲ Camera frame: APS-C
▲ Sensor size: 23.5×15.6mm
▲ Pixel size: 3.9μm (better than A7R, RX1R and other series cameras)
▲ Working environment temperature: -20℃ to +50℃

Product and solution

  • Practical: A large number of engineering examples are verified, which can meet the high-precision measurement requirements such as cadastral survey and 1:500 topographic map, and support the control point-free operation based on M300RTK.
  • Lightweight: The weight of the lens body is only 350g, and the volume is only 105mm×105mm×80mm. It is currently the smallest and lightest five lens on the market, which can greatly increase the flight time.
  • Convenience: Innovative storage technology enables quick replacement of storage units and synchronization of flight operations and data copying, which is faster and more convenient.
  • Intelligent: Through the built-in intelligent control panel and pos-data processing software, the camera can realize automatic self-checking, one-click photo screening, initialization, and useless photo removal, etc.



APPLICATIONS

1:500 topographic map survey elevation survey
cadastral survey
earthwork and mine survey real scene 3D GIS application

Specs

Name

Parameter

Camera weight

350g

Maximum size

105×105×80mm

Number of cameras

5

Camera pixels

120 million

Sensor size

23.5×15.6mm(APS-C)

Pixel size

3.9μm

Lens focal length

35mm/25mm

Minimum photo interval

0.8s

Working environment temperature

-20°C to +60°C

Shell material

High-strength nylon

Data storage mode

Replaceable usb3.0 memory

Mounting method

Skyport
